[Tutorial] - Creating your own vehicle

I was made a jbeam with same description, I hope it helps you and others.



Is the object in your .dae file called cube



If you press the @ key it will shoe you the log try going off that



I'll try if my update works this time, keeps getting to around 30.02mb and then stopping.



Ahhh I can't believe my error: ".Jbeam" instead of ".jbeam".

Make sure you do not use capital J for the file extension . Finally, back to scripting.



Ugh, now it just crashes. I so need to keep trying, I don't want to keep giving up anymore, I can do this.



Hahaha just wanted mess with your files, sorry I didn't sooner but I am a little overloaded with work atm, but nice to see you fixed it!

- - - Updated - - -

First thing what I spot is a missing comma (,) after the information block:

Code:

    "information":{
        "authors":"Chong McBong, Rand0mPsych0",
        "name":"Tempo Matador",
    }[B], <-- here[/B]
    "refNodes":[
            ["ref:", "back:", "left:", "up:"]
            ["1a", "1b", "1c", "1e"]

        ],



I don't know what's going on, but every time I try to load my chassis into the game it crashes.



Code:

35.717921|* error loading mesh vehicles/Tempo Matador/Tempo Matador.DAE
35.730749|BEAMNG| ERR | error creating vertex buffer for mesh Matador_chassis

The problem seems to be with your model, not the jbeam definition. Try starting with a cube mesh that matches the definition to get the grasp of the process before using your model. Coordinate system (y/z up) may cause some offsets that you will need to be aware.



I have to say I like making Node/beam skeletons. I could do it all day, it makes my inner physicist very happy. Issue is now I have many projects which come apart nicely but there are no models. I hate modelling, I hate texturing even more.



lol funny you say that i love to model and hate making skeletons , this stuff is insane, got the model done cant seam to get it all working



Thank you nadeox1 for this tutorial. It helped me alot.

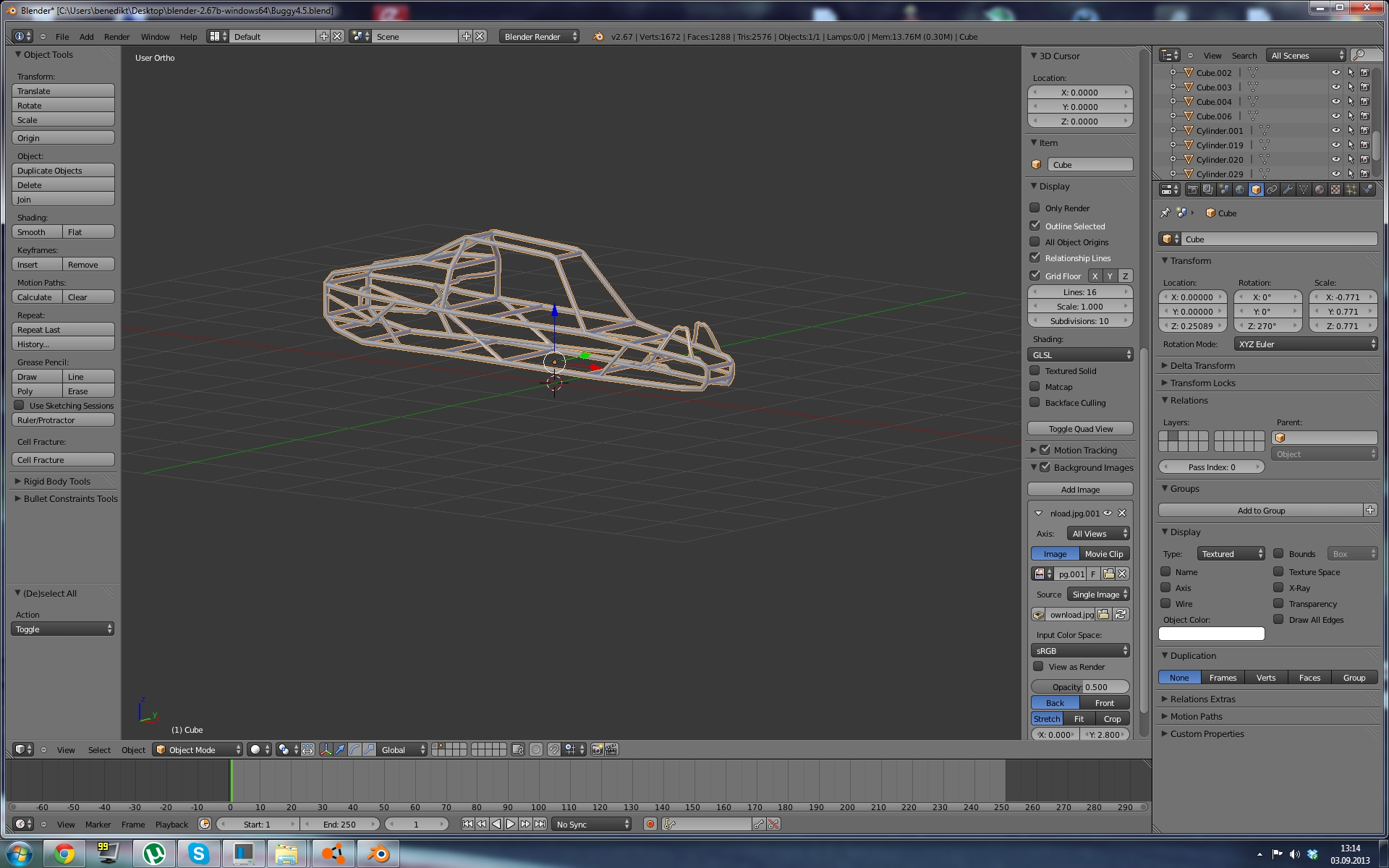

Anyway I´ve got a weird problem. In Blender my frame is centered und only a few cm of the ground. But ingame my car is way too high in the air. I don´t know what the problem is.

I really hope someone is able to figure out the problem


driftlegende



I already tried this. It does solve it somehow. But why is the model floating in the air like this? The origin is centered and everything :/



After the first test with 1 node it worked. I deleted the other nodes and created the 0,0,0 node like you suggested.

Thank you !



i think im not ever going to get this iv been trying for two hours now but i still dont get how any thing works im trying to build a rock crawler but i just dont get nodes beams or any thing



What is this error?

Flexbody error on mesh xyz: VY node not found



watch it now thank you!
