1. Stuck or having problems creating your mod?

Outdated Real-Time Vehicle Editor - See new thread for Alpha 11 and above

Discussion in 'Utilities and programming' started by GregBlast, Oct 18, 2013.

?

How much interested in this would you be ?

  1. Not interested

    19 vote(s)
    2.0%
  2. Could be useful but not to me

    48 vote(s)
    4.9%
  3. Would eventually use it

    72 vote(s)
    7.4%
  4. Would probably use it

    184 vote(s)
    18.9%
  5. I definitely need something like this

    651 vote(s)
    66.8%
  1. moosedks

    moosedks
    Expand Collapse

    Joined:
    Nov 4, 2012
    Messages:
    1,114
    Re: Real-Time Vehicle Editor - UPDATE 0.0.0.10: Showing how to "jbeam" the Flip Ramp from scratch

    I had an empty flexbody section and for whatever reason the editor decided to delete it which borked my car temporarily. I mean, all I had to do was add it back (in a format that the editor liked) but it was a bit odd.

  2. JDMClark

    JDMClark
    Expand Collapse

    Joined:
    Aug 10, 2013
    Messages:
    1,338
    Re: Real-Time Vehicle Editor - UPDATE 0.0.0.10: Showing how to "jbeam" the Flip Ramp from scratch

    So basically this program is going to be the kingpin for any beamng modding. I mean your even making an alternative to blender lol. I mean I doubt it will be as advanced as blender but have that as an option is amazing man! Very interested in this software and i'll probably be using it for future mods.

  3. moosedks

    moosedks
    Expand Collapse

    Joined:
    Nov 4, 2012
    Messages:
    1,114
    Re: Real-Time Vehicle Editor - UPDATE 0.0.0.10: Showing how to "jbeam" the Flip Ramp from scratch

    where did he say he was making a 3d modeling program?

  4. GregBlast

    GregBlast
    Expand Collapse

    Joined:
    Aug 12, 2013
    Messages:
    225
    Re: Real-Time Vehicle Editor - UPDATE 0.0.0.10: Showing how to "jbeam" the Flip Ramp from scratch

    Well it does not allow you to create Collada meshes but it's true that you can create some kinds of meshes already as you can create triangles. The option to let you create real models and export them as so has crossed my mind already but if that was to be done don't expect that to be in a month or two as that will definitely not be my priority. But as I don't know how far I'll go with this...maybe in a not-too-far-away-future it could let you do so why not.




    As for the empty sections (I call them sections like node section, beam section, etc...) yes the editor doesn't create what I assume is a useless section if it is fully empty (no element and no property, a "node" / "beam" / "flexbody" being an element and "selfCollision" being a property for example). But if it broke your vehicle then I may have not fully understood the way it works. Maybe empty sections can still be useful in some cases.

    Could you provide me with some concrete example (like showing me what that flexbody section looks like) ? Maybe it doesn't define any flexbody but still defines some properties ? In which case if my editor removes the section it's wrong and I should fix it.

    - - - Updated - - -

    Upcoming Alpha 11 - More news
    Good news everyone (sorry I like Futurama ;)) ! You should see what this is for when looking at thef following screenshots:

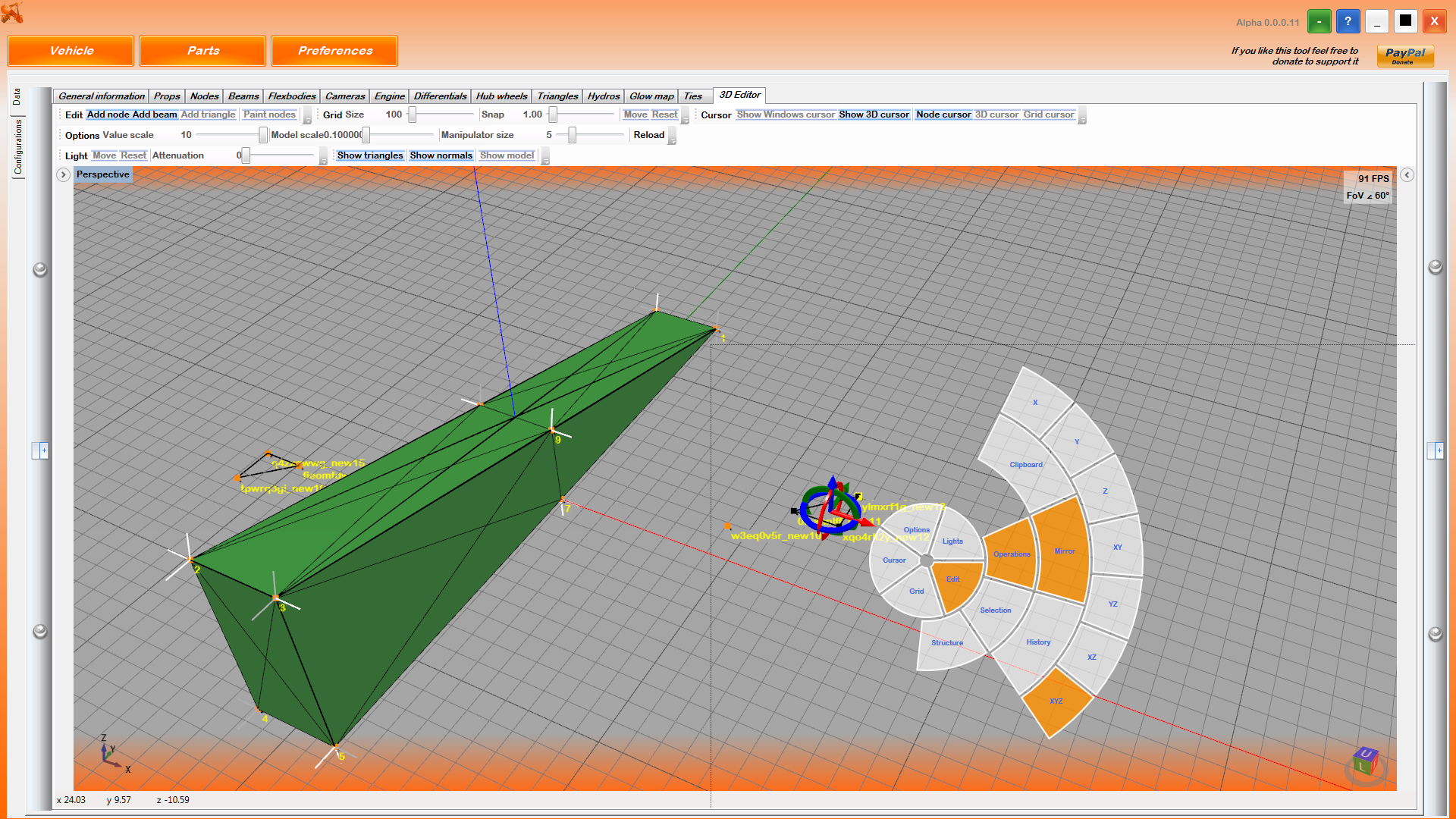

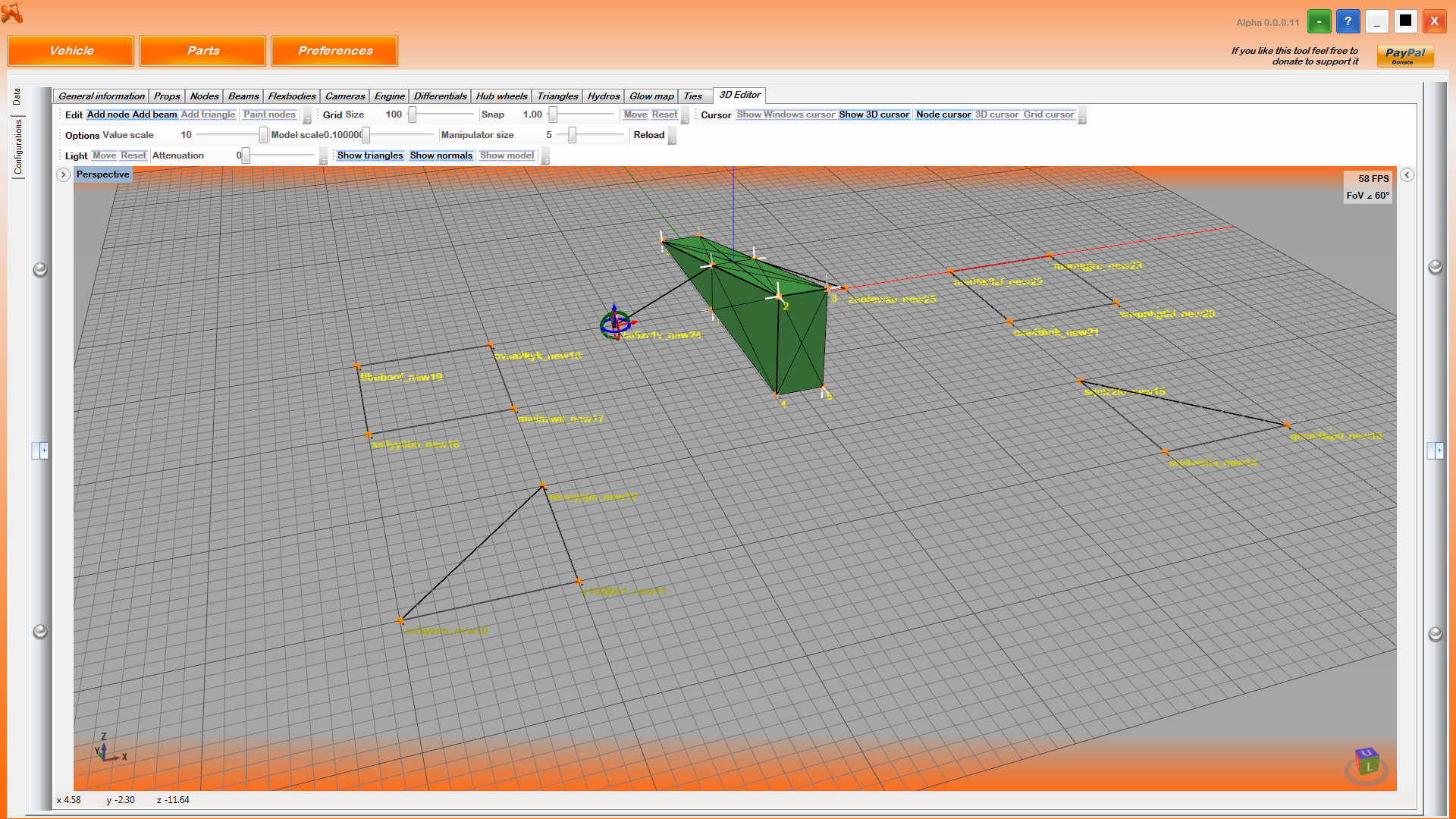

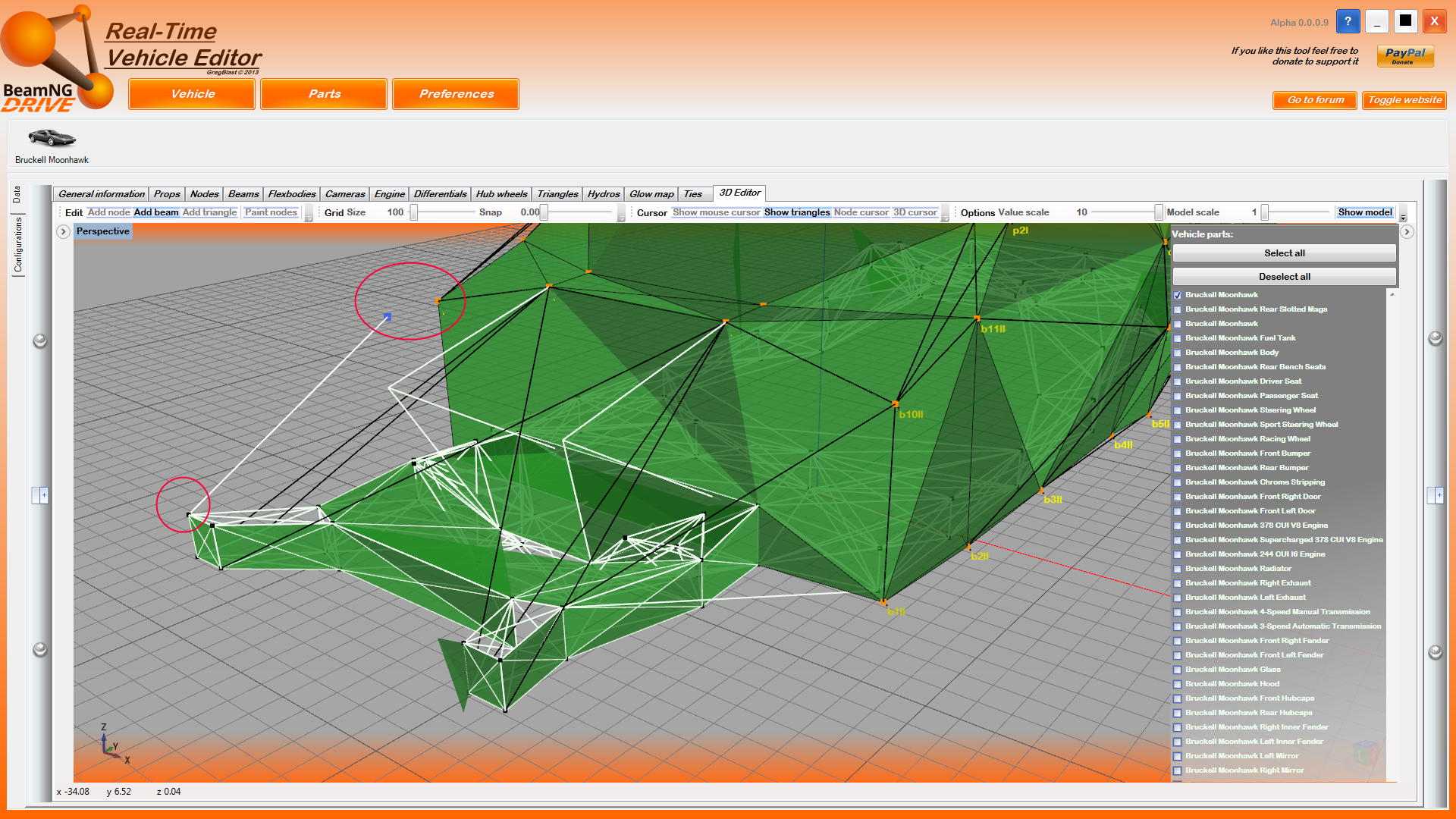

    Yes, this illustrates mirroring of nodes and beams. I'll point the fact that you can select the nodes in any order, the new beams will be correct. Also if you select for instance one unique node that is used for some beams those beams will be mirrored as well (as you can see here as I did with the beam linked to the flipramp).
    Only thing missing still is the mirroring of triangles. But I'll get that done as well.

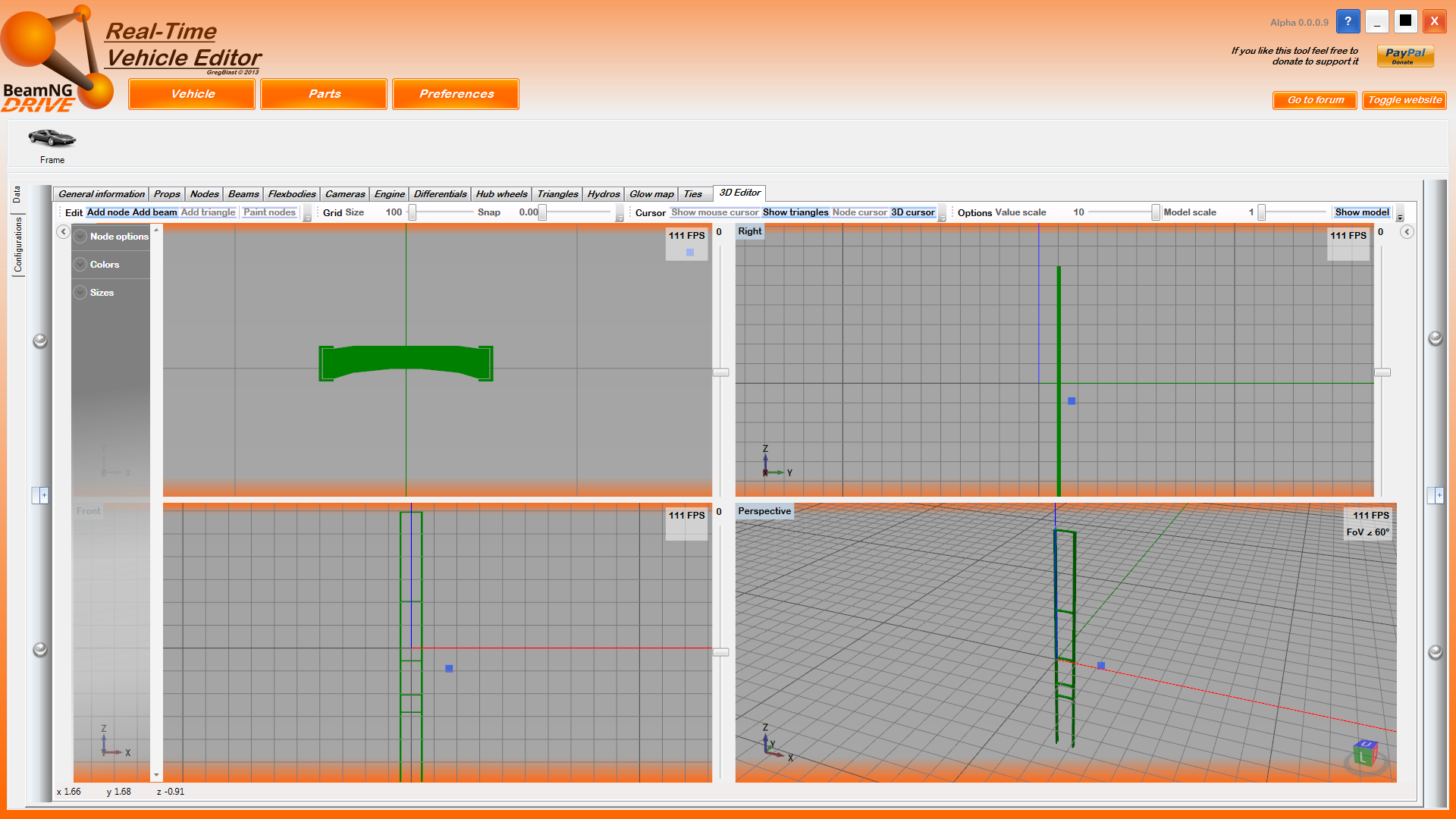

    You can of course transform on any axis relative to the grid...

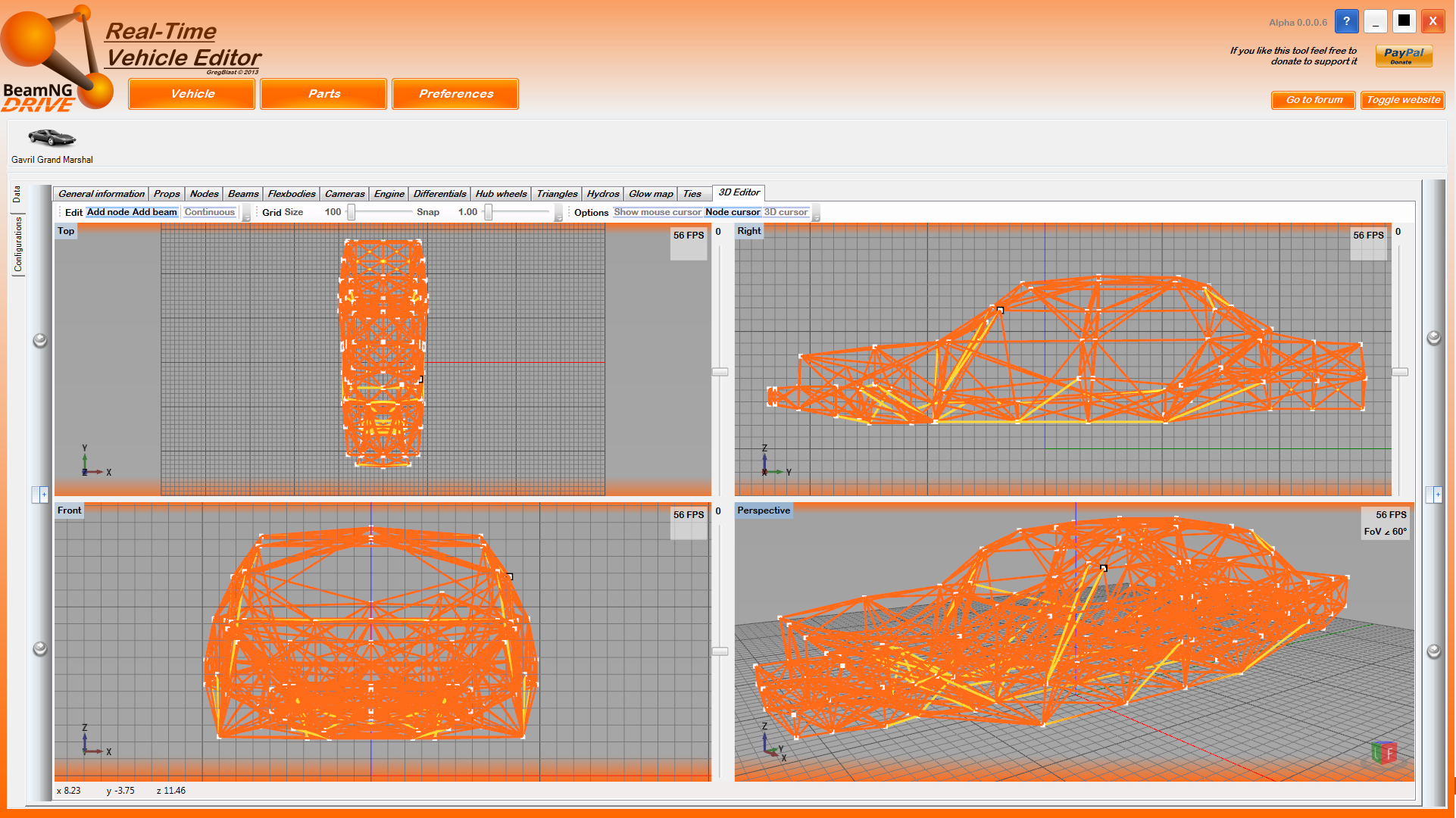

    ...and if the grid is transformed it will use the grid transformation to mirror.

    And here's the radial menu to do it.


    PS: I know some screenshots make it look like a mess but don't forget you can use a node prefix if you want.

    #184 GregBlast, Jan 21, 2014
    Last edited: Jan 21, 2014
  5. GregBlast

    GregBlast
    Expand Collapse

    Joined:
    Aug 12, 2013
    Messages:
    225
    Re: Real-Time Vehicle Editor - UPDATE 0.0.0.10: Showing how to "jbeam" the Flip Ramp from scratch

    Upcoming Alpha 11 - Thrusters

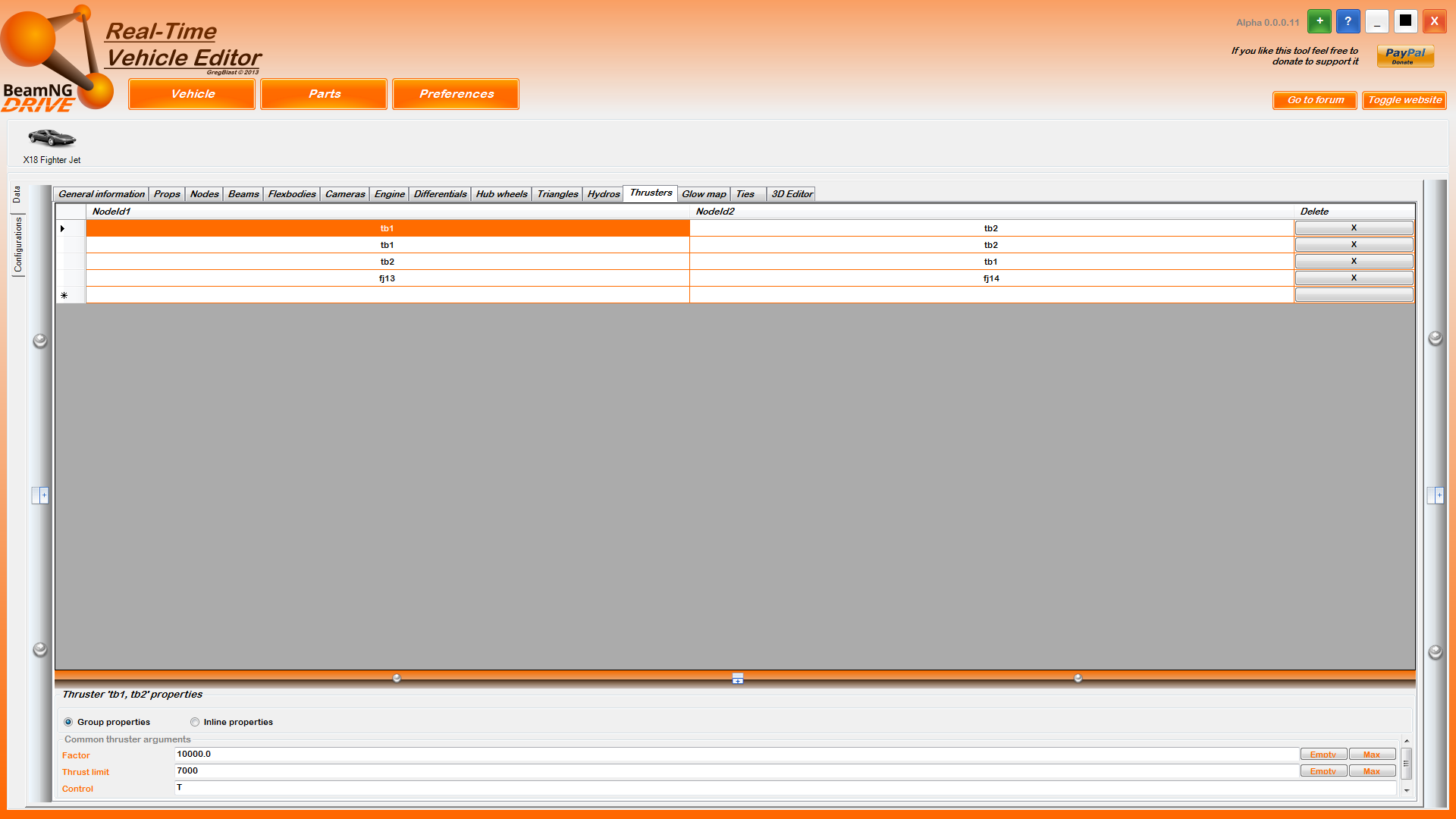

    Today after seeing the X18 jet from DrowsySam I decided to include support for thrusters in the tool which was not yet the case. Here's a screenshot of the stuff that looks pretty similar to others. "Control" is still a string because I hope we can use key combinations there (haven't tested yet personally).

    Thrusters control. Let me know if it needs more properties. Soon I will also add a way to define them like beams in the 3D editor.


    Upcoming Alpha 11 - JBeam format ready
    The new indenting of the JBeam format is ready ! It will now be a lot more readable so I guess some of you will be happy to see this Flipramp example:

    Code:
    {
    	"flipramp":{
    		"information":{
    			"name":null,
    			"authors":""},


    		"slotType":"main",
    		"refNodes":[
    			["ref:", "back:", "left:", "up:"],
    			["4", "0", "5", "2"]],


    		"flexbodies":[
    			["mesh", "[group]:", "nonFlexMaterials"],
    			{"rotation":{"x":0.0, "y":0.0, "z":0.0}, "translation":{"x":0.0, "y":0.0, "z":0.0}},
    			["flipramp_01a", ["flipramp"]]],


    		"nodes":[
    			["id", "posX", "posY", "posZ"],
    			{"nodeWeight":15.0, "nodeMaterial":"|NM_METAL", "group":"flipramp", "frictionCoef":1.0, "collision":true, "selfCollision":false},
    			["0", -0.18, 1.46, 0.0],
    			["1", 0.18, 1.46, 0.0],
    			["2", -0.18, -1.44, 0.78],
    			["3", 0.18, -1.44, 0.78],
    			["4", -0.18, -1.44, 0.0],
    			["5", 0.18, -1.44, 0.0],
    			["6", -0.18, 0.0, 0.0],
    			["7", 0.18, 0.0, 0.0],
    			["8", -0.18, 0.0, 0.39],
    			["9", 0.18, 0.0, 0.39],
    			{"group":""}],


    		"beams":[
    			["id1:", "id2:"],
    			{"beamSpring":8001000, "beamDamp":300, "beamDeform":200000, "beamStrength":"FLT_MAX"},
    			["0", "1"],
    			["0", "2"],
    			["0", "3"],
    			["0", "4"],
    			["0", "5"],
    			["1", "2"],
    			["1", "3"],
    			["1", "4"],
    			["1", "5"],
    			["2", "3"],
    			["2", "4"],
    			["2", "5"],
    			["3", "4"],
    			["3", "5"],
    			["4", "5"],
    			["6", "0"],
    			["6", "1"],
    			["6", "2"],
    			["6", "3"],
    			["6", "4"],
    			["6", "5"],
    			["6", "7"],
    			["7", "0"],
    			["7", "1"],
    			["7", "2"],
    			["7", "3"],
    			["7", "4"],
    			["7", "5"],
    			["8", "0"],
    			["8", "1"],
    			["8", "2"],
    			["8", "3"],
    			["8", "4"],
    			["8", "5"],
    			["8", "6"],
    			["8", "7"],
    			["9", "0"],
    			["9", "1"],
    			["9", "2"],
    			["9", "3"],
    			["9", "4"],
    			["9", "5"],
    			["9", "6"],
    			["9", "7"],
    			["9", "8"]],


    		"triangles":[
    			["id1:", "id2:", "id3:"],
    			{"group":"ramp"},
    			["2", "3", "9"],
    			["2", "9", "8"],
    			["9", "1", "0"],
    			["9", "0", "8"],
    			["3", "5", "7"],
    			["3", "7", "9"],
    			["9", "7", "1"],
    			["2", "6", "4"],
    			["2", "8", "6"],
    			["0", "6", "8"],
    			["2", "4", "5"],
    			["2", "5", "3"],
    			["5", "4", "6"],
    			["5", "6", "7"],
    			["7", "6", "0"],
    			["7", "0", "1"],
    			{"group":""}]}
    }

    - - - Updated - - -

    Version Alpha 11 Released
    Please check this new thread from now on. This one was getting too messy with that huge first post ;). I'll probably put it all on the wiki when I'll get the time.

    #185 GregBlast, Jan 24, 2014
    Last edited: Jan 23, 2014
  6. GregBlast

    GregBlast
    Expand Collapse

    Joined:
    Aug 12, 2013
    Messages:
    225
    Wiki page
    I have started working on a Wiki page to provide help content related to this tool. I will update it little by little until it covers everything and will also use it to give you some tutorials and tips. You can access it by using this link. In versions Alpha 12 of the tool and above you can click the help button in the upper-right corner (the blue button '?' next to the green '+').

    Don't hesitate to let me know if you need more. And don't forget I'm always open to your great suggestions so don't keep them in your mind. Share them !

  7. Mullethead

    Mullethead
    Expand Collapse

    Joined:
    Sep 15, 2013
    Messages:
    4,555
    I Need Help!:eek:

  8. GregBlast

    GregBlast
    Expand Collapse

    Joined:
    Aug 12, 2013
    Messages:
    225
    What for ? Do you have the verison Alpha 11 (0.0.0.11) ?

    Also you'd rather use the new thread now here.

  9. CaddyCar02

    CaddyCar02
    Expand Collapse

    Joined:
    Apr 12, 2015
    Messages:
    25
    Re: Real-Time Vehicle Editor

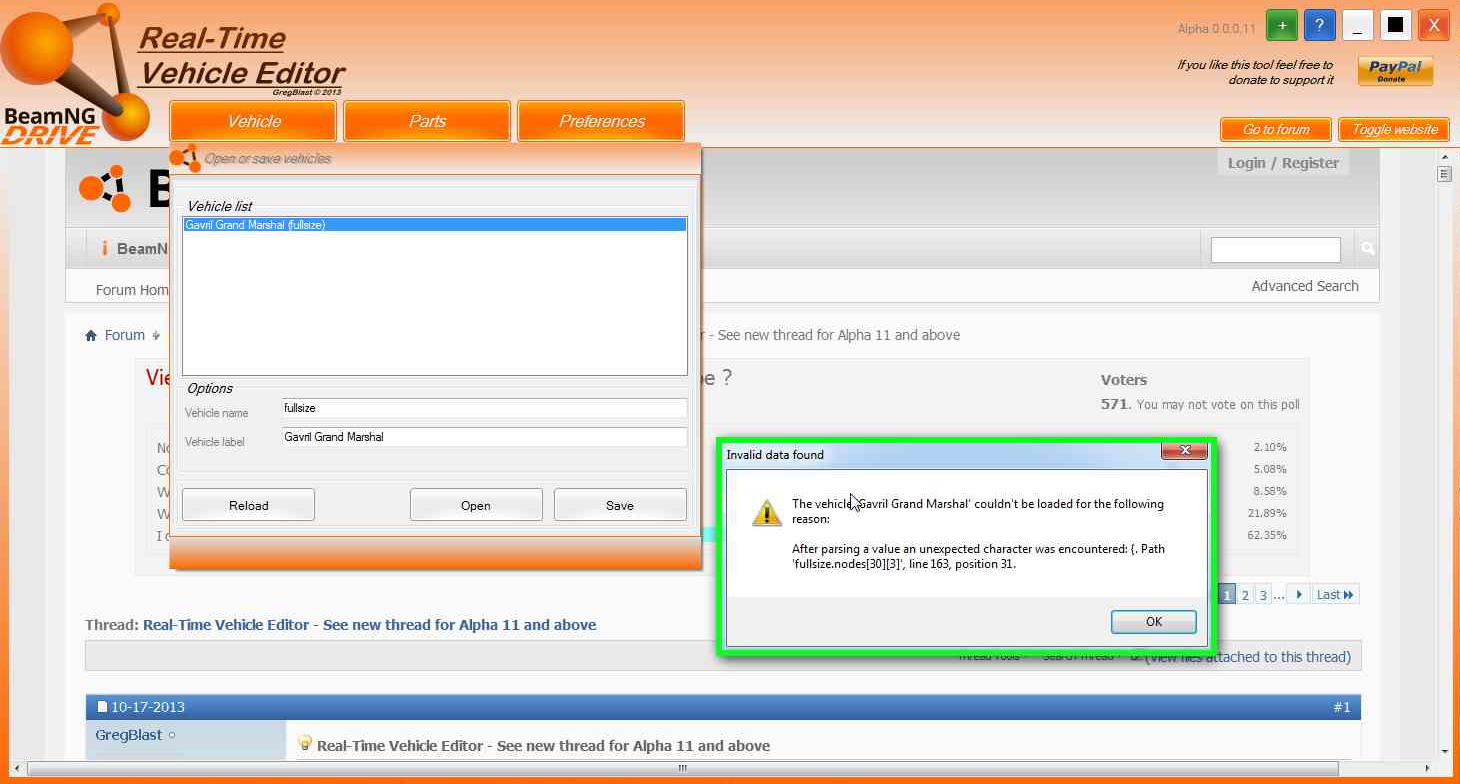

    So i downloaded it alpha 11 of the realtime editor beacuse i dont like spending hours typeing. So i tryed to load vehicles i get an error but i realy want to use this program. if you know of any ideas on how i can fix this please if you can.


  10. iheartmods

    iheartmods
    Expand Collapse

    Joined:
    Aug 8, 2012
    Messages:
    1,481
    Don't expect help from a thread that hasn't been touched in almost 6 months.

  11. CaddyCar02

    CaddyCar02
    Expand Collapse

    Joined:
    Apr 12, 2015
    Messages:
    25
    Yha I don't.. I have it already figured out. Thanks anyways

  12. luisseichter 2

    luisseichter 2
    Expand Collapse

    Joined:
    Oct 13, 2015
    Messages:
    4
    can someone plese tell me how to make mod I feel like that there are less and less moder that make mods I don't know but could someone please show me how to make them so I can help and make mods

  13. Logi_Veloce

    Logi_Veloce
    Expand Collapse

    Joined:
    Jun 25, 2015
    Messages:
    671
    There's a "Content Creation" section for a reason.

    And don't bump threads that haven't been touched since July.

  14. cardude001

    cardude001
    Expand Collapse

    Joined:
    Feb 16, 2016
    Messages:
    1
    No matter what I do, I can't get the Real Time Vehicle Editor to find my vehicles? It looks like so much fun but I can't figure out how to get the program to see my vehicles.

    Help?

    I couldn't find any FAQ, maybe I'm the only one who can't figure it out?

  15. Narwhal

    Narwhal
    Expand Collapse

    Joined:
    Aug 4, 2013
    Messages:
    1,720
    This things long dead. i would be surprised it if even works now. Also the newest version(version 12) is in another thread, though that one doesnt work either i think

    version 12 just b/c
    http://www.beamng.com/threads/real-...ation-plenty-of-fixes.6223/page-6#post-131142

  16. Richard

    Richard
    Expand Collapse

    Joined:
    Aug 20, 2013
    Messages:
    38
    Doesn't work, file paths won't select, many errors when trying to do things, horrible window formatting, no, just no.

  17. Narwhal

    Narwhal
    Expand Collapse

    Joined:
    Aug 4, 2013
    Messages:
    1,720
    dude. read the 1 post above you



  18. mrjij

    mrjij
    Expand Collapse

    Joined:
    May 23, 2016
    Messages:
    3

  19. mrjij

    mrjij
    Expand Collapse

    Joined:
    May 23, 2016
    Messages:
    3
    how do i get a vehicle imported to the editor?

  20. CaptanW

    CaptanW
    Expand Collapse

    Joined:
    Aug 18, 2014
    Messages:
    1,146
    the editor is out dated as you can see for like 2 years now. Please do not bump the threads. If you new to beamng you would not know what the editor is doing anyways.
