Maluch JBeam rebuild

Discussion in 'Troubleshooting: Bugs, Questions and Support' started by AdamPLGames, May 17, 2021.

  1. Czax125

    Czax125
    Expand Collapse

    Joined:
    Sep 3, 2021
    Messages:
    65
    I can do it for you after i finish my parts pack for Trapez

  2. Szeroki Pędzel

    Szeroki Pędzel
    Expand Collapse

    Joined:
    Dec 23, 2019
    Messages:
    105
    cool

  3. Xupaun

    Xupaun
    Expand Collapse

    Joined:
    Aug 18, 2020
    Messages:
    552
    Definitelly it isn't this bad. Although, it shouldn't open on the Piccolina too. On the Miramar the door stays closed at that speed.

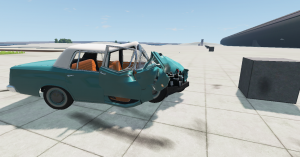

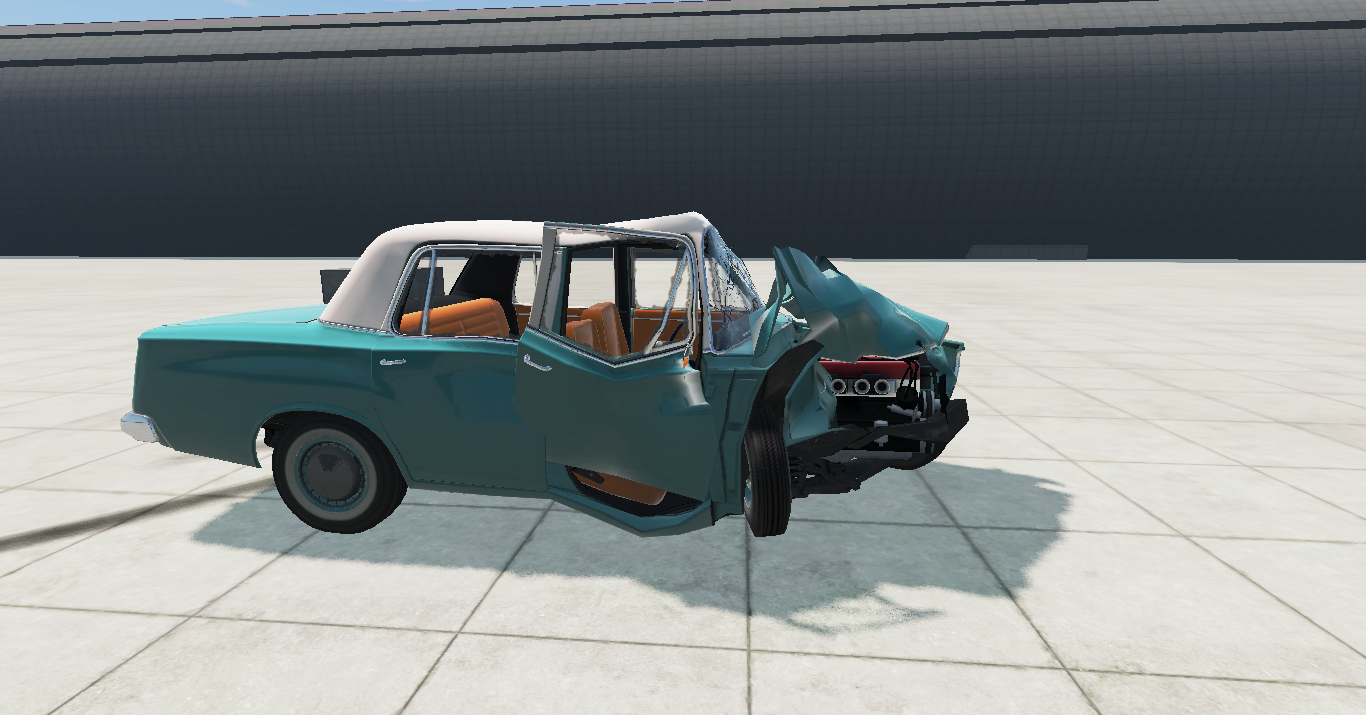

    Here is the Miramar after a 80 km/h "small overlap crash" with no bumper and no front fascia. Even with the fender crushing the door, it stays closed.

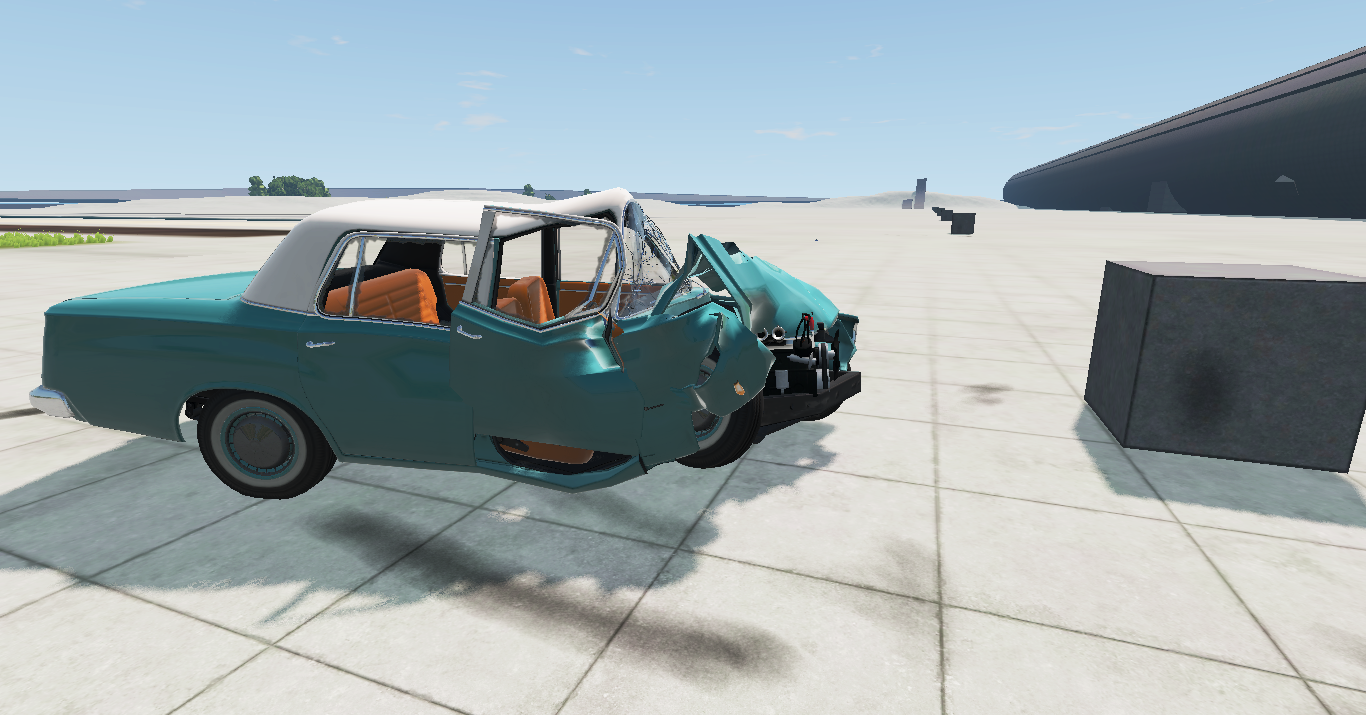

    Here is the same Miramar but also without the fender and a even smaller overlap (basically just the wheels width) so the deformation concentrated on the A pillar. Still, the door is shut.

    The problem is: The piccolina's door is always rear hinged, apparently, so what breaks is the latch, not the hinges. That may mean that its A pillar is not designed to have hinges, so that's why it opens so easily. Any deformation on the A pillar unlatches the door (even if it is "front hinged"). My suggestion would be take a look on the Miramar's door frame jbeam and look for differences between it and the Piccolina. That could help

  4. Agent_Y

    Agent_Y
    Expand Collapse

    Joined:
    Jul 10, 2020
    Messages:
    6,829
    Good idea, I think the Piccolina was never designed to have front hinges, so it's a structural fault that is simulated in game, so I shouldn't have used its hinges for the Maluch. Noted, will use Miramar ones instead.

  5. Xupaun

    Xupaun
    Expand Collapse

    Joined:
    Aug 18, 2020
    Messages:
    552
    I would suggest the Covet ones, but it is too modern for it. The Miramar is one of the oldest unibody car and, even being more of a upscale model, I imagine that the late 60s and early 70s safety requirements for cheap cars were quite equivalent to the 50s on bigger cars.

    Also, the Miramar's front doors have a quite similar shape to the Maluch's.

  6. Agent_Y

    Agent_Y
    Expand Collapse

    Joined:
    Jul 10, 2020
    Messages:
    6,829

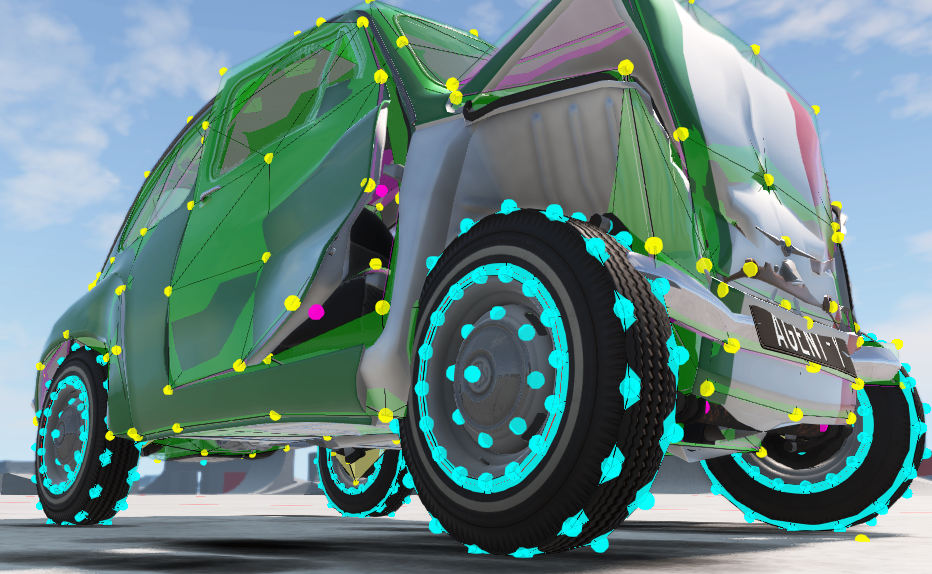

    Tried using Miramar hinges, literally no difference. Then I realised something.
    The reason why in real life door hinges don't break on crashes, is because the doors don't move forward compared to the rest of the body. And they don't move because they hit the fenders that deform outwards. That's the purpose of the fenders. The same thing happens in game.
    But if you remove the fenders, the doors don't hit anything, they don't lose momentum with the rest of the vehicle, and are held in place only by the hinges, which are too weak to hold them and break:
    So my issue is not with the hinges, it's because the fenders on this car are welded to the chassis so they don't deform outwards, I have no idea how the designers of the car solved this issue, but I assume it was done the same way as in game the devs did it on the Pigeon. So I have to look at that for reference instead of the Miramar.
    EDIT: The Pigeon simply deforms less because the frame below the hood takes the impact... So no idea at all
    --- Post updated ---

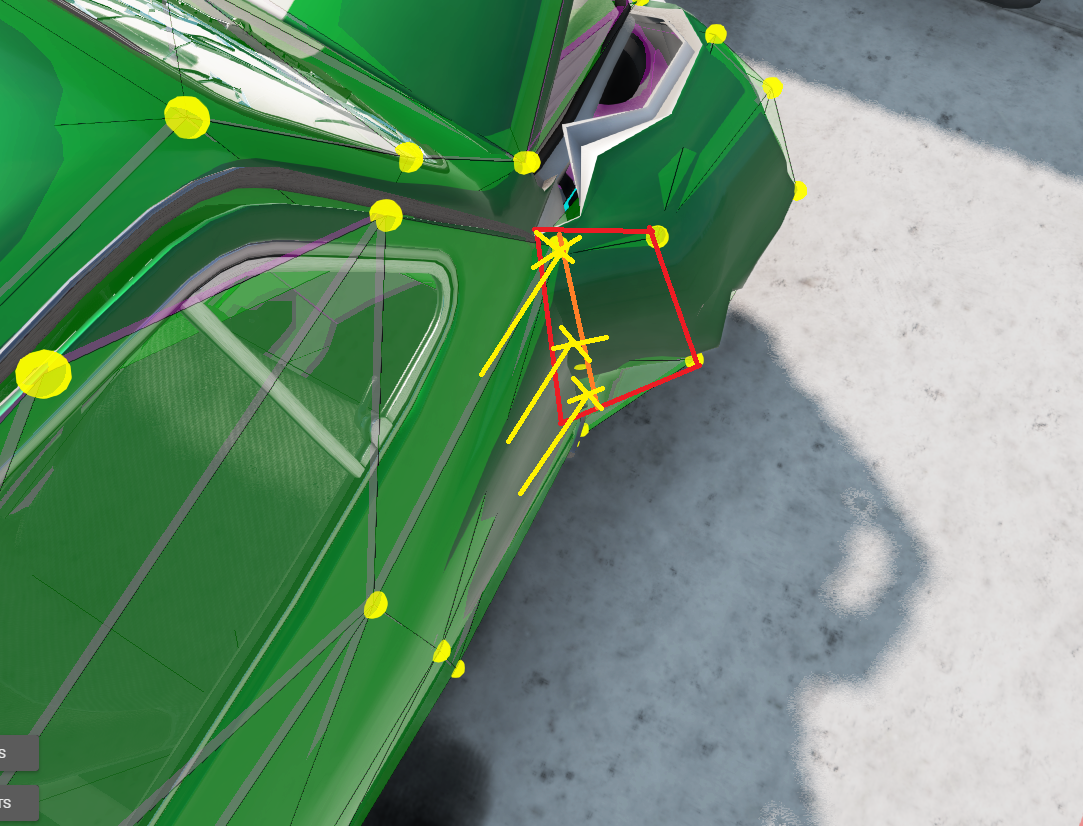

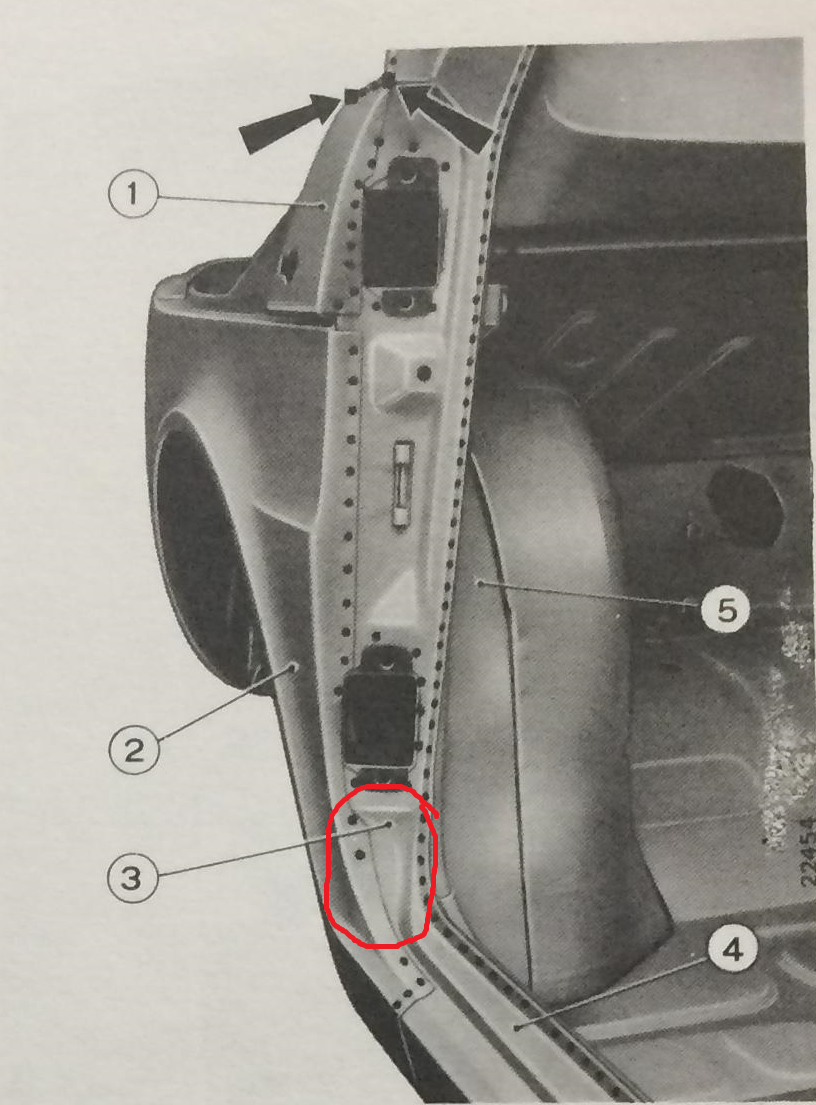

    Apparently irl this little piece here is supposed to reinforce the hinges in a crash... Does anyone have an idea of how that would work?
    --- Post updated ---

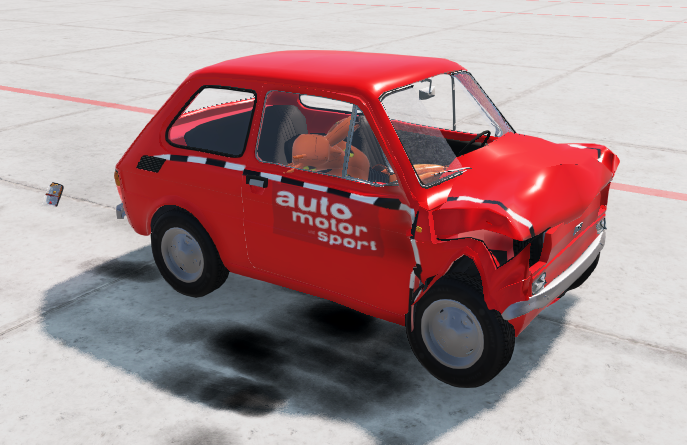

    I'VE GOT THIS! Miramar-like hinges, but the lower is stronger than upper (simulating that support piece), they turned out super strong compared to the latches, so I strengthened the latches too, and now doors no longer break off!

    #866 Agent_Y, Feb 14, 2022
    Last edited: Feb 14, 2022
    • Like Like x 9
  7. Slugfest

    Slugfest
    Expand Collapse

    Joined:
    Jun 28, 2020
    Messages:
    1,129
    Great!

  8. Xupaun

    Xupaun
    Expand Collapse

    Joined:
    Aug 18, 2020
    Messages:
    552

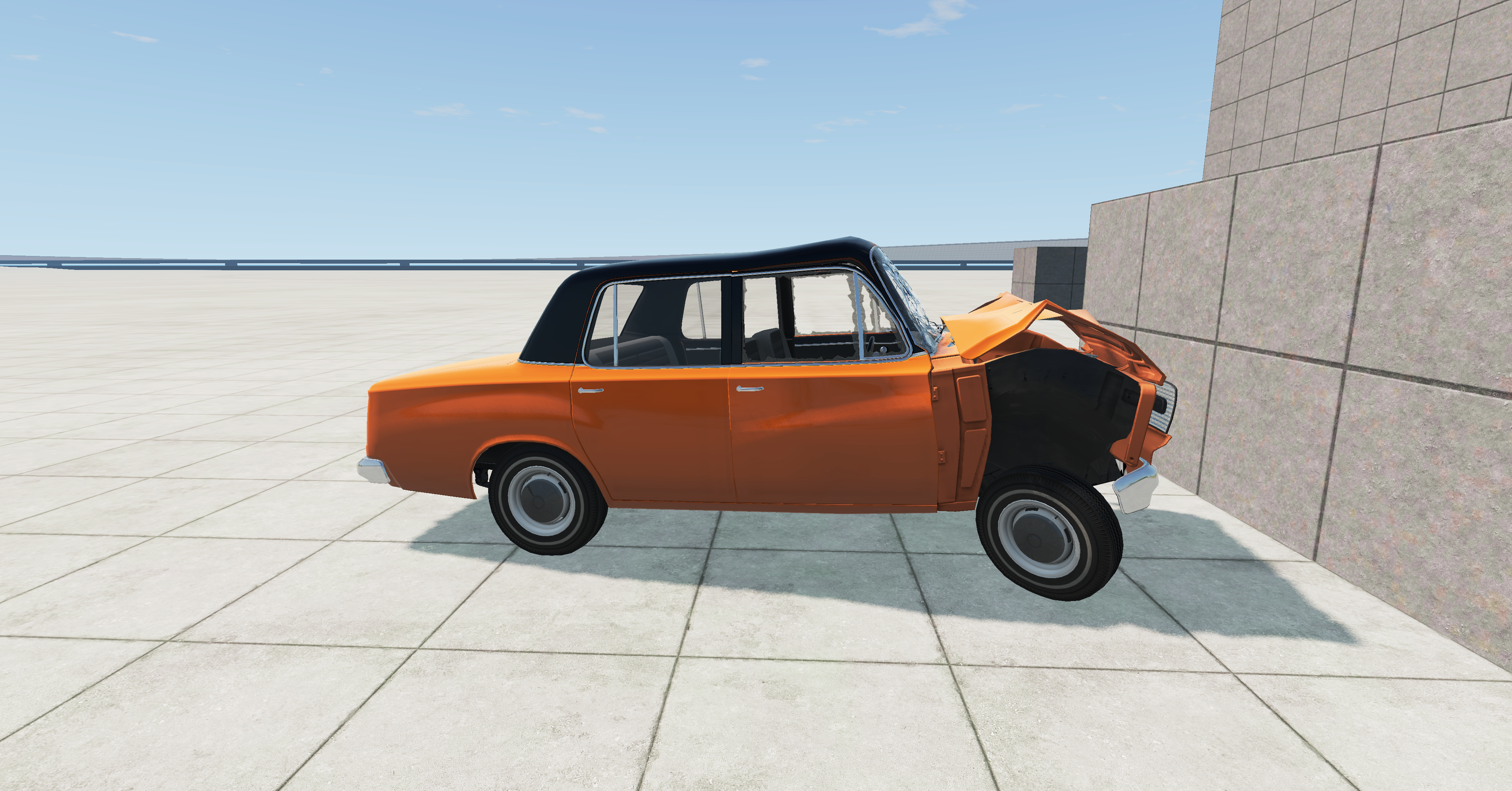

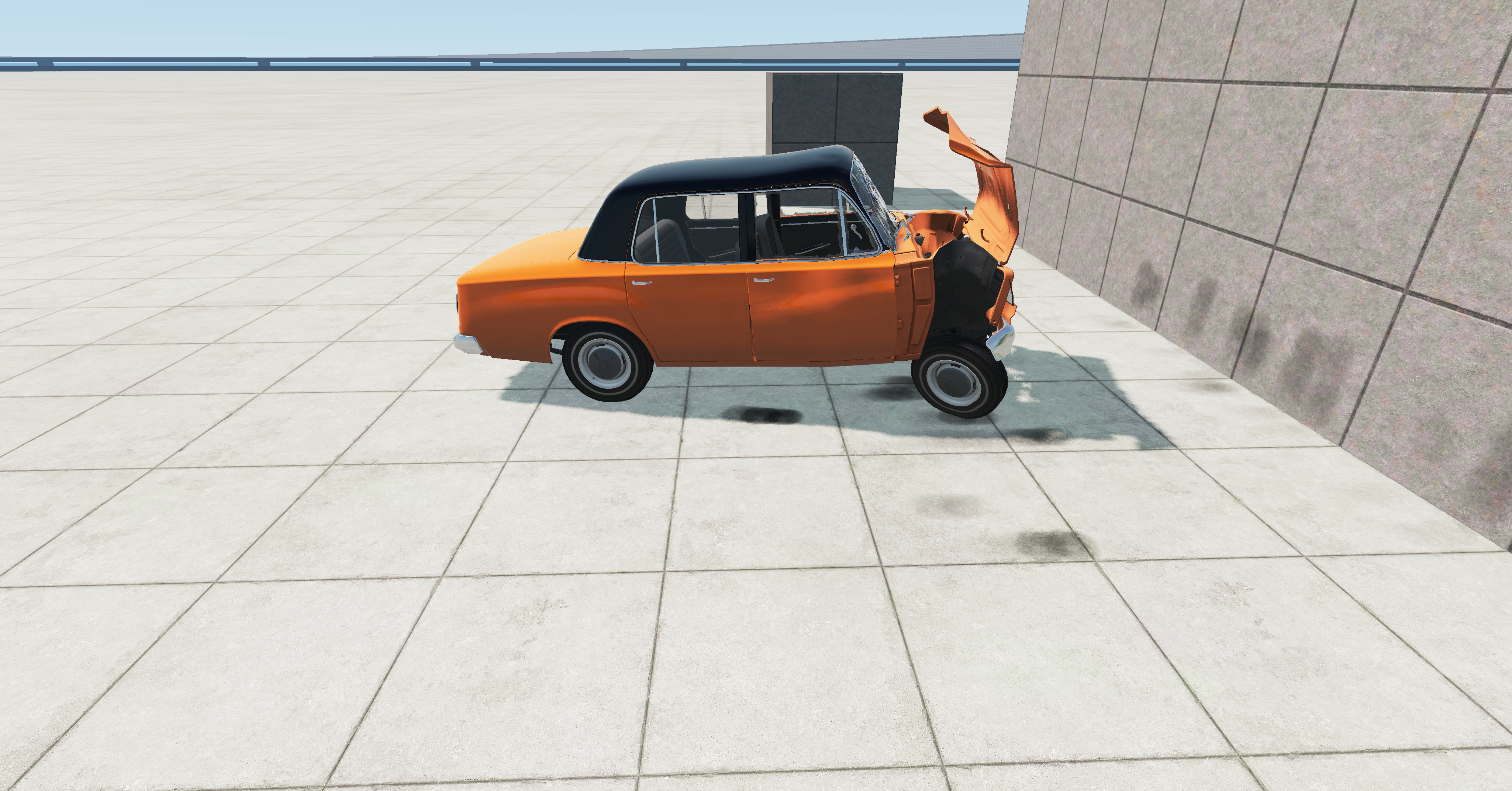

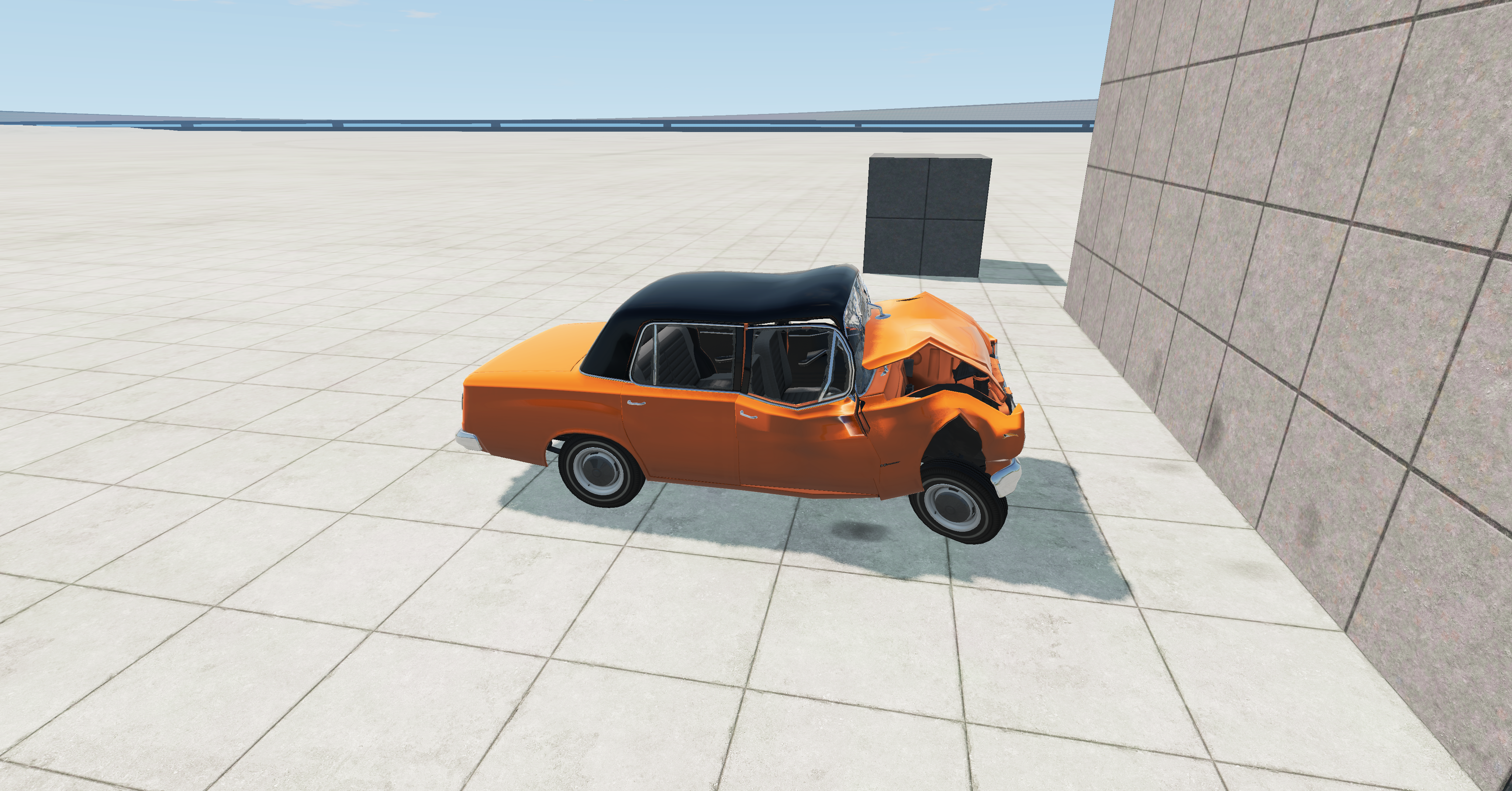

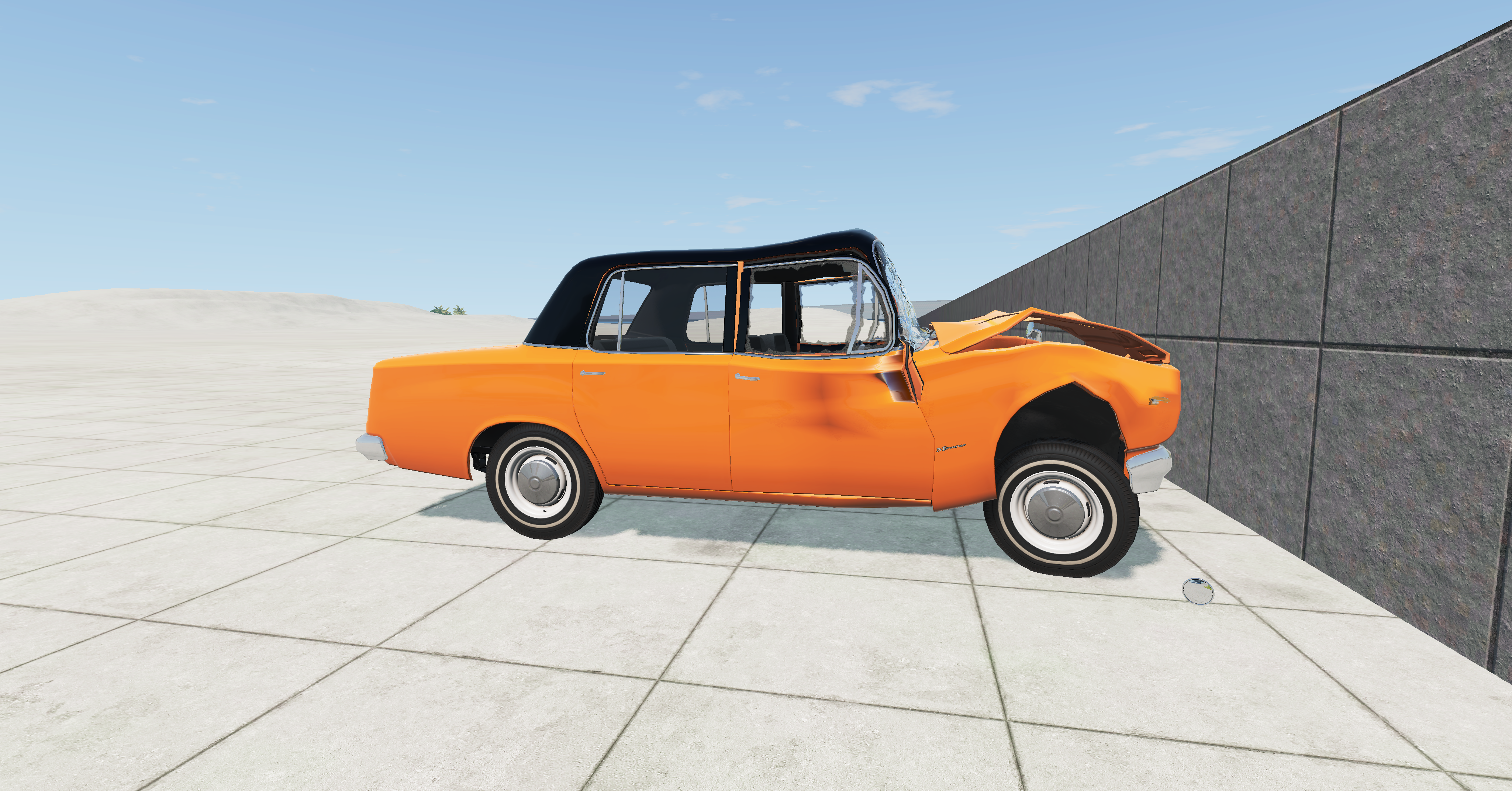

    Testing on the Miramar here (I even made it electric so I could remove the engine in front to avoid it affecting the structure).

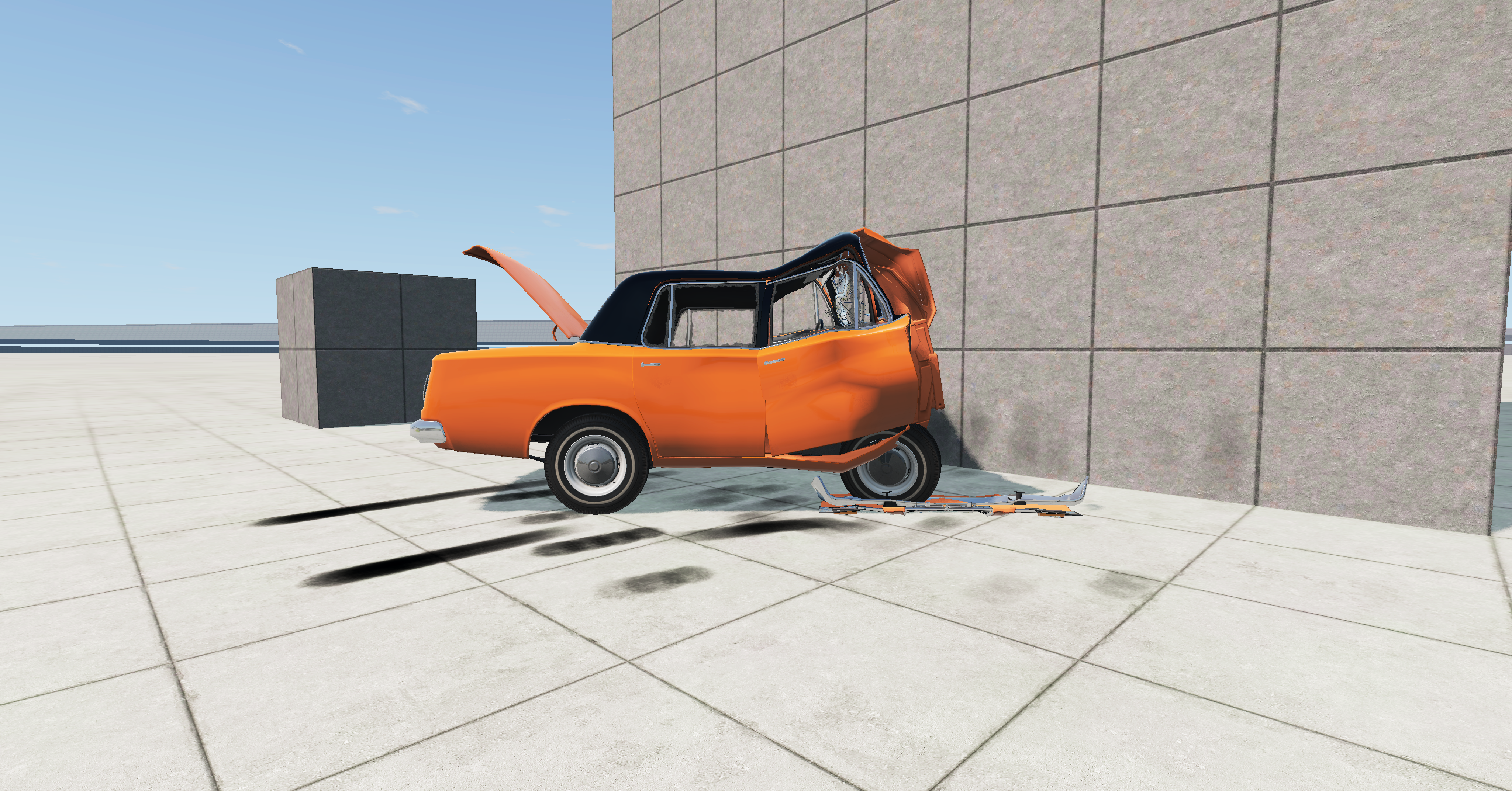

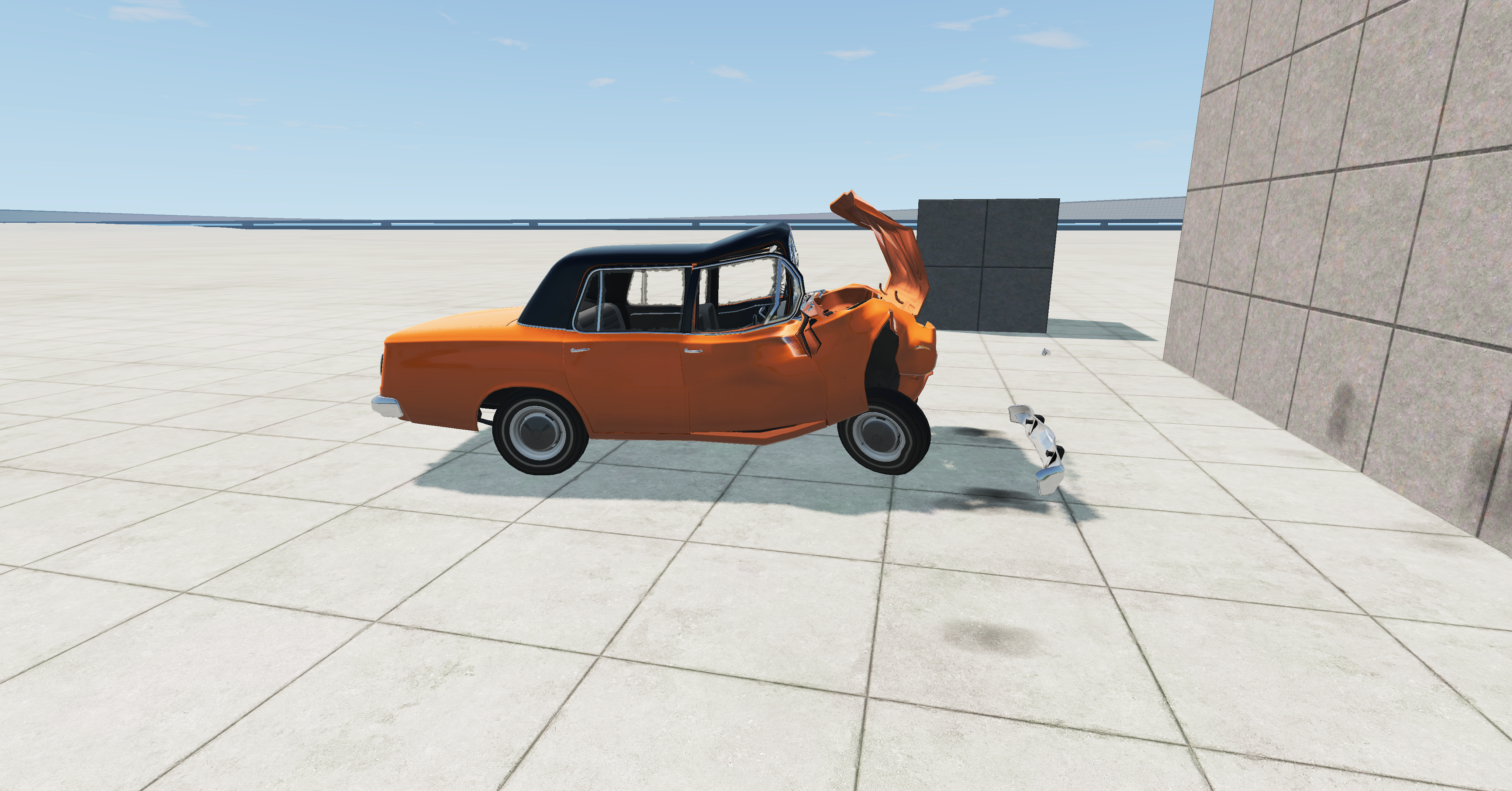

    At 65 km/h:

    With fenders:

    Without fenders:

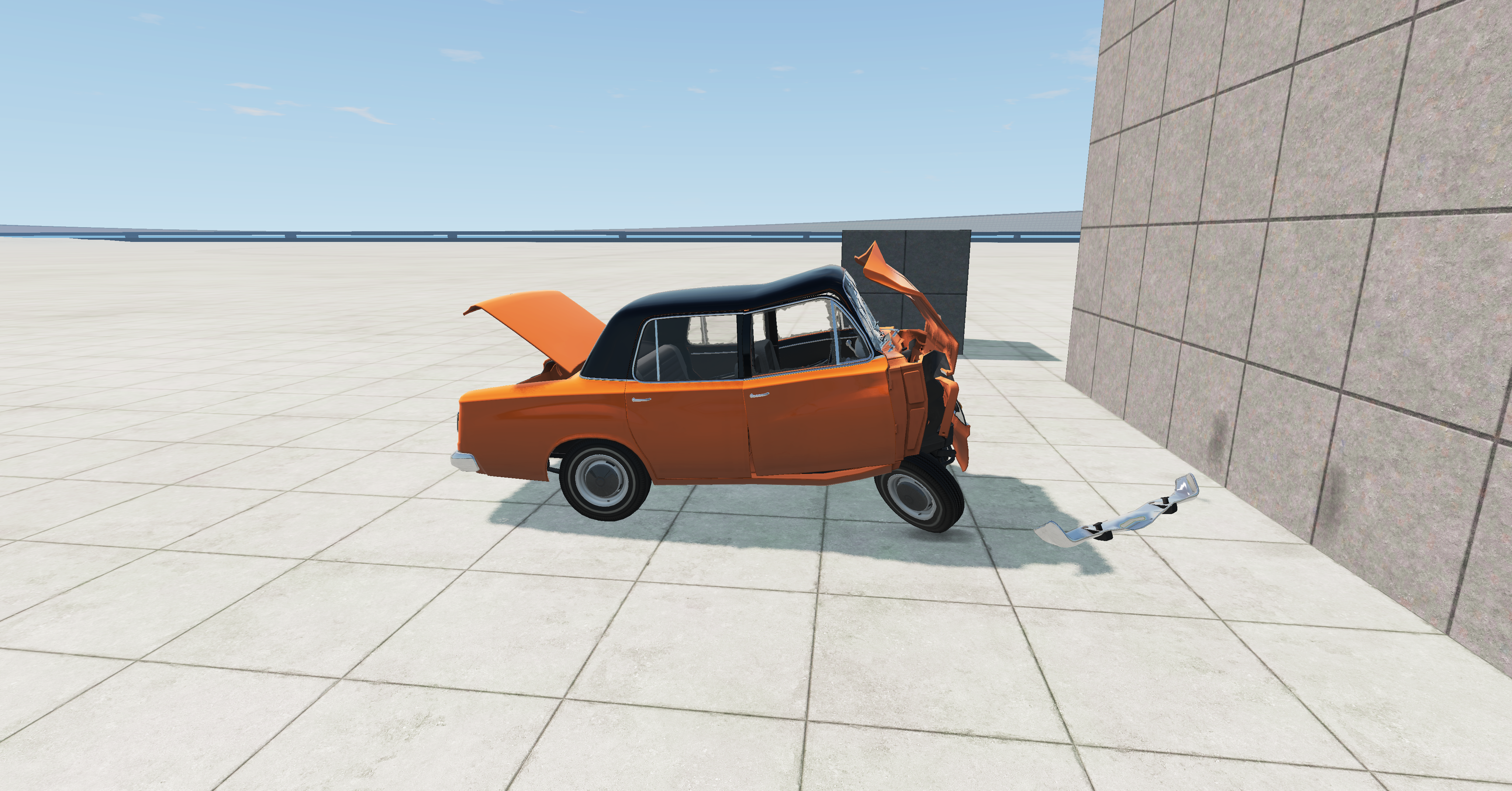

    At 80 km/h:

    With fenders:

    Without fenders:

    At 100 km/h:

    With fenders:

    Without fenders:

    At 120 km/h:

    With fenders:

    Without fenders:

    In any of them the hinges broke. Only at 120 km/h without fenders, the passenger door (front left in this car) unlatched. The driver door wasn't clipping and I could drag the car by the the node closest to the door handle and it still didn't open. That's why I said to you to take a look on the whole door frame from the Miramar, because if your cabin is based on the Piccolina, it may have traces of the rear hinged doors on it. I'll take a look on some coupe mod for the Miramar to ensure that the 4 door body doesn't have such a big influence on the door frame structure.


    Attached Files:

    • screenshot_2022-02-14_22-51-23.png
    • Like Like x 1
  9. Agent_Y

    Agent_Y
    Expand Collapse

    Joined:
    Jul 10, 2020
    Messages:
    6,829
    The thing is that the Miramar and Piccolina have a completely different approach to hinges, and I assume the Piccolina one is more realistic since the Jbeam of this one is newer. Fenders are supposed to protect the doors, in the Miramar they don't do their job because the crumple zone doesn't affect the hinges, they start behind it so only a side impact can damage them. Which I don't think is too realistic. But the Miramar has an advantage over Piccolina, in the way that the solution used there seems more logical and less hacky, like they didn't purposely try to get the hinges to break on a hard frontal impact like they definitely did on purpose on the Piccolina. The hinges on the Maluch visually resemble the ones on the Pigeon, except the Pigeon has only 1 hinge per door because it's cheap, and they don't break off because the crumple zone is further away from the cab, due to the frame filling the rear engine bay like a cage (and idk if you can even call it engine bay since the engine itself is in the transmission tunnel below the cab lol). So I couldn't use the Pigeon solution as it's drastically different. The Miramar one didn't work at first either, because I didn't completely think through the way it's adapted into the Maluch. There were a few more factors to consider that are not so obvious and I missed them the first time I tried it:
    • The lower hinge on the Maluch is actually positioned way higher than I initially thought, so the deformation of the fenders in the lower part doesn't affect it that much
    • The floor is way stiffer and stronger than the fenders and A pillars, same with the roof, if you look at the crash test video they don't bend at all, not even for a short while. Granted it's only 40 km/h impact, but the Piccolina floor isn't as sturdy and especially the front part of it can bend way easier
    • Generally the distribution of stiffness is way less even on the Piccolina than on the Miramar, which is more realistic, but also makes it harder to swap parts between them like the hinges in this case
    • The Miramar has no distinction in the bulkhead area of which part is Jbeam-wise supposed to be the lower bulkhead and which is the firewall. Which is maybe not too realistic but makes it easier to set up the hinges since they can be attached to whatever and it will all deform the same way. The Piccolina has a clear distinction so different beams in the original hinges needed to have different properties. On the Maluch additionally there is the lower windshield mount and the welded fenders, which makes an even bigger mess lol
    • The Piccolina has a sturdy steel subframe in the suspension that reinforces that area, on the Maluch there is no such thing so it naturally bends more in the suspension mount area, maybe the steering rods mount protects it a bit but not really, the spare tire is above that place and it cushions the impact to much greater extent than on Piccolina
    • There is that small support piece which I still don't understand how it really works, but it's supposed to dissipate the deformation before it gets higher to the hinge I think
    • For some reason which I don't understand, both hinges on each door of the Piccolina act as one, so they break at the same time, unlike in all other cars. I have no idea why that is a thing, but it means that the lower hinge breaks the upper one. I fixed that issue too but at first it didn't help by itself
    • While the Miramar has evenly distributed nodes in the bulkhead/firewall area, on the Piccolina on each level there are sometimes 6, sometimes 4 and sometimes 3 nodes. That makes it much harder to find where the upper hinge should attach. I could have just attached it to the same nodes as originally, but I wanted a clear pattern like in the Miramar instead of a big mess that I wouldn't understand. Now at least I get how the hinges work, like what are the angles in the geometry that keep the doors in place and openable properly. With the Piccolina Jbeam I didn't understand it at all.
    About door frames: You can't just swap one from one car to another, because the door frame nodes are also the side nodes of the floor, bulkhead, firewall, A pillar, B pillar and roof. And in the case of the Maluch, also the lower and side windshield mounts and the front fenders. So fixing 1 thing there could break 9 other things, exactly like my fix of the steering system broke the entire front of the car and the weight distribution (which probably wasn't fully correct in the first place but still). It also means that the door frames of the Maluch are modified so much now that they aren't comparable to the Piccolina, so I wouldn't find out anything useful when comparing it to the Miramar, because it's as different from the current thing as the Piccolina... Remember that my front fenders are scratch made, that's also a factor that makes it different. But generally door frames are NOT EVEN THE PLACE WHERE THE HINGES CONNECT TO IN GAME, so it would be pointless. They connect towards the middle of the car, so the floor and firewall. The reason is because we need to secure both hinge nodes in all 3 directions to prevent wobbles. Generally securing a node like this is done via 3 beams that all have 90 degree angles between each other. But here it would be tricky since you would have to connect the lower hinge to a rocker node in front of it or behind, to the floor towards the middle of the car, and then up to the A pillar or the roof, which you can already see that it would have unwanted side effect like A pillar deformation breaking lower hinge that shouldn't realistically be connected to it. So what is done instead is having 4 beams per hinge. For lower hinge there are 2 nodes in the floor that make about a 90 degree angle between each other and the hinge, and then on the firewall 2 nodes exactly above them, with about the same angle, and the angle between the lower and upper hinges is less than 90 degrees, but since there are 2 nodes with the same angle as the ones below, it's also properly secured against wobbling. For the upper hinges the same thing is done except it's the top and middle of the bulkhead. And in order to prevent a situation where one of the hinges breaks and the door can freely rotate on the other one, additionally the bottom hinge connects the top one to the floor the same way, and the top connects the bottom one to the firewall. As for the latch, it also doesn't connect to the door frame, because it would be too close to it and would cause vibrations, instead the connection points are further behind the B pillar. So I hope you can see now that the door frame is irrelevant here lol.

    • Like Like x 2
  10. Xupaun

    Xupaun
    Expand Collapse

    Joined:
    Aug 18, 2020
    Messages:
    552
    Now I understand. Also I forgot that the Miramar is, now, quite ancient in game jbeamwise. Maybe I'm thinking too much about IRL cars and how things connect to each other and forgeting that, to have that behaviour, the node and beam parts have to be quite different than it "should' be. That's something that scares me enough to cancel my plans of making my team's FSAE car in Beam. Making a structure in this game looks harder than in real life (remembering how a double wishbone suspension has about 7/8 nodes IRL, but in Beam it needs probably 40).

  11. Agent_Y

    Agent_Y
    Expand Collapse

    Joined:
    Jul 10, 2020
    Messages:
    6,829
    Actually suspension should have as little nodes as possible, often certain nodes are reused for multiple purposes. The wheel hub needs precisely 4 nodes for geometry setting, the other needed nodes are just the lower and upper mounts, and the shock mounts that double as mounts for everything else above the suspension. Additionally the steering system could have from 4 to 6 nodes depending on the setup. So the whole double wishbone front suspension could have as little as 13 nodes in total. The subframe usually has more. The reason why it needs as little nodes as possible is for stability reasons, because with less nodes you can have more weight per node, and that means you can make it more stiff without risking instability.
    And yeah the Miramar is "ancient" and its behavior of not needing fenders to protect the doors is probably outdated, but it works in my case and idk what I could do otherwise.

  12. Xupaun

    Xupaun
    Expand Collapse

    Joined:
    Aug 18, 2020
    Messages:
    552
    I get it. My point is: as someone who designs double wishbone suspensions (for that FSAE car I mentioned before) the suspensions in beam are kind of hard to understand, simply because the node positions are quite different lol. The fact that EVERYTHING in this game is made by "dots and traces" drive me nuts. That's why I'm sticking with powertrain mods lol

  13. Agent_Y

    Agent_Y
    Expand Collapse

    Joined:
    Jul 10, 2020
    Messages:
    6,829
    Yeah I get that it's weird how the node positions are a compromise between several things that use the same nodes, because the amount of nodes must be kept to the minimum in a lot of cases. Sometimes it even sacrifises the visual suspension movement, if you look at some cars you will see that they can look weird in compression or when turning. And if you don't follow the rule of reducing node count, you get low mass per node, and stuff like the old wobbly front suspension design I made myself for this mod, before TrackpadUser designed a superior one and told me how to make it.

  14. Agent_Y

    Agent_Y
    Expand Collapse

    Joined:
    Jul 10, 2020
    Messages:
    6,829
    A lot of progress today. I improved the roof rack Jbeam, and started adding TAN's textures in game.
    Manufacturer logo on glass:

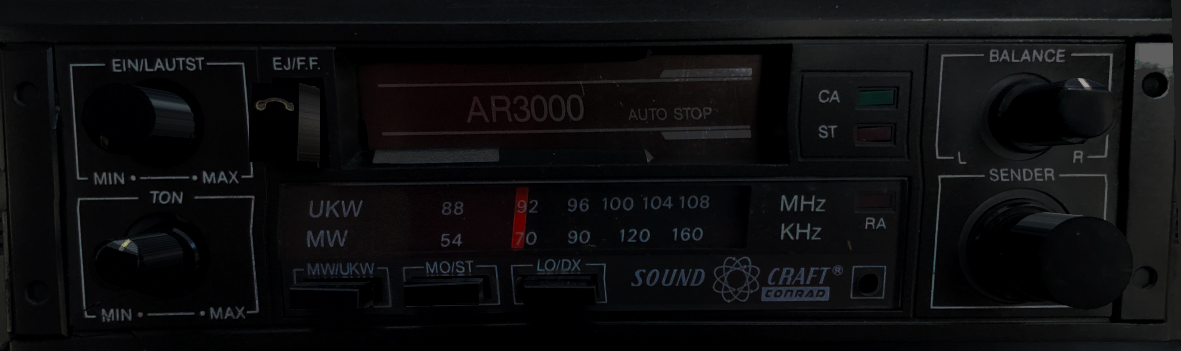

    Better radio texture:

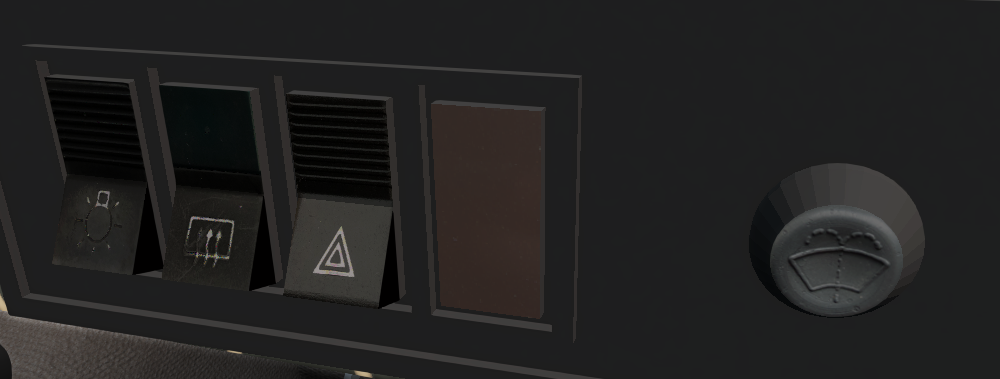

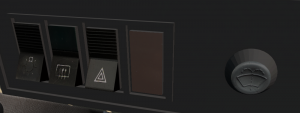

    And way better textures for dashboard controls:

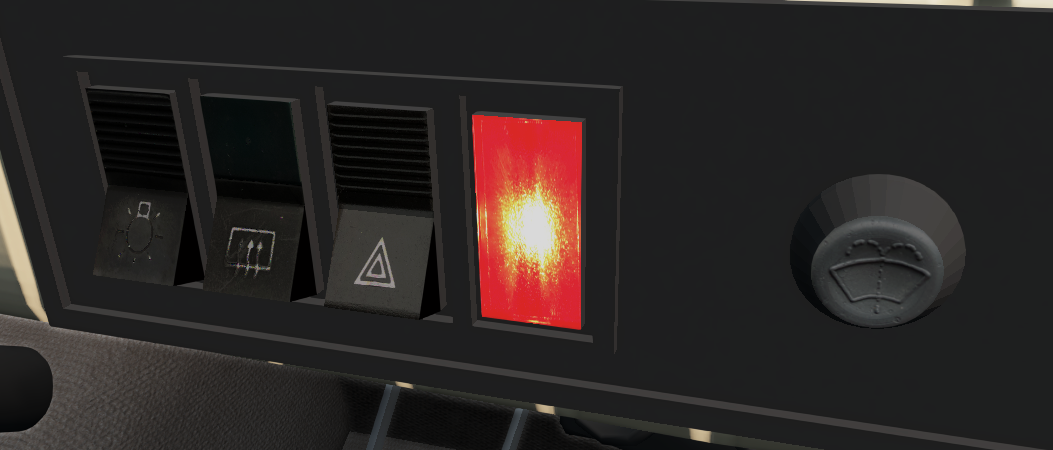

    And yes, the handbrake light works now!

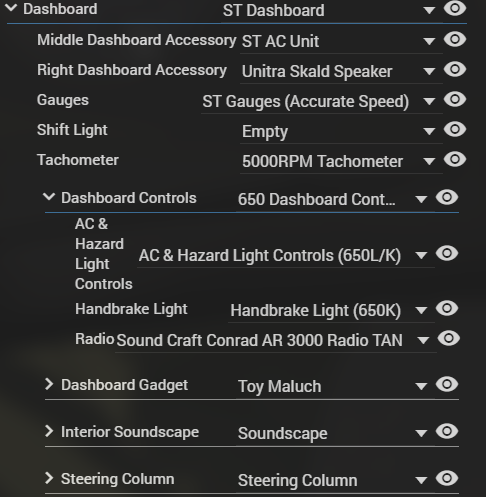

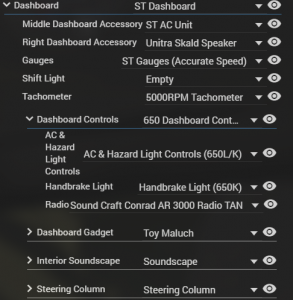

    These controls also have corrected slots system to properly show which trim had which controls.
    There are still lots of textures to port, I'll do more tomorrow.

    • Like Like x 10
  15. Agent_Y

    Agent_Y
    Expand Collapse

    Joined:
    Jul 10, 2020
    Messages:
    6,829
    Very WIP

    • Like Like x 6
  16. Agent_Y

    Agent_Y
    Expand Collapse

    Joined:
    Jul 10, 2020
    Messages:
    6,829

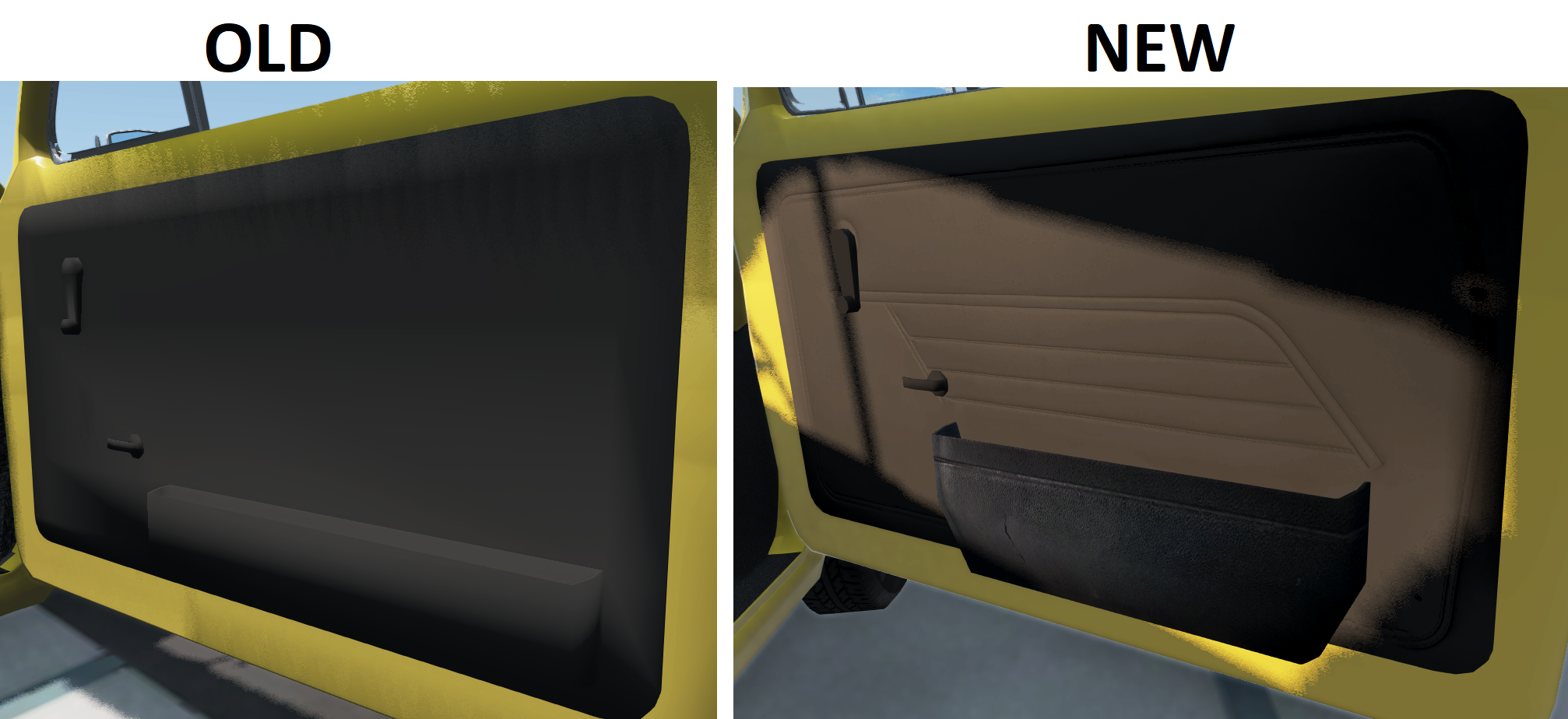

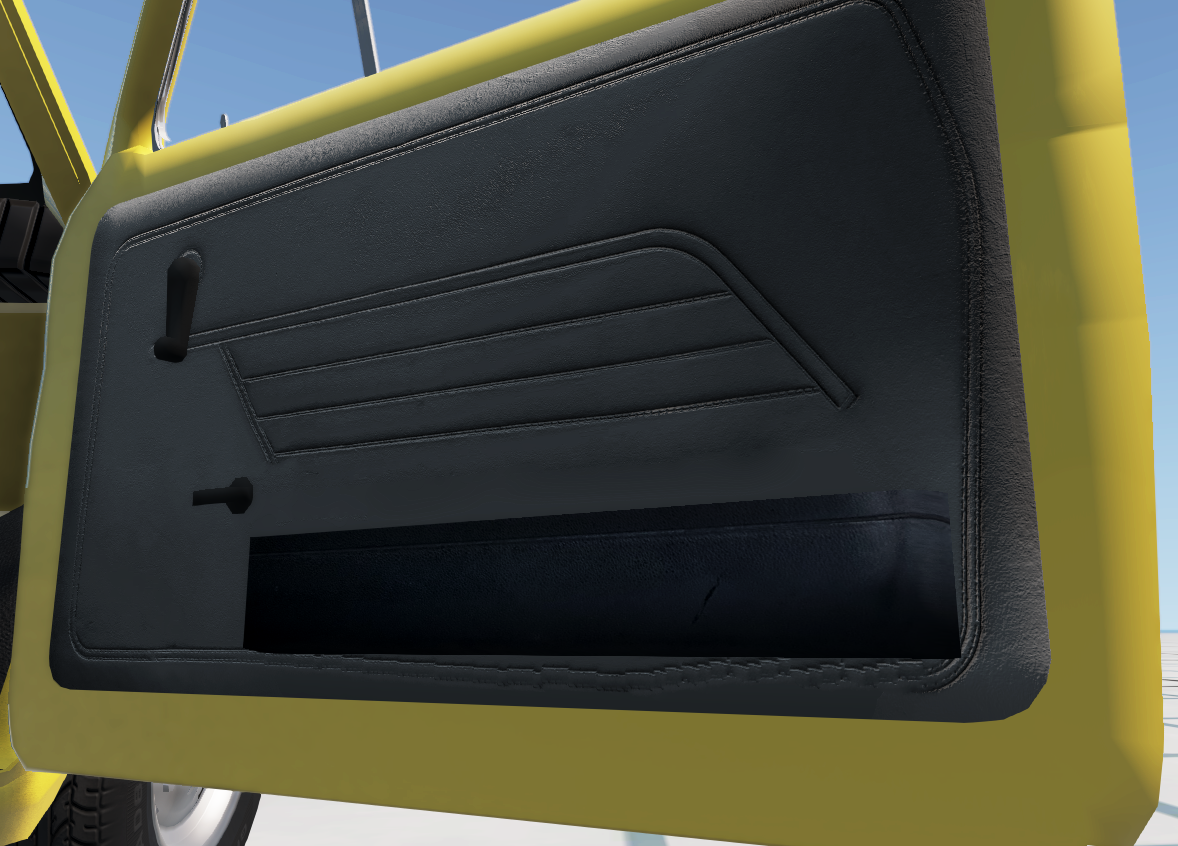

    Door panels pretty much completely redone. This includes the model, material and texture of the main panel, model and texture of the compartment, model and position of the window lever, and position of the interior door handle. And they are still skinnable with the same color options as before.

    • Like Like x 10
  17. Marf_

    Marf_
    Expand Collapse

    Joined:
    Sep 23, 2021
    Messages:
    91

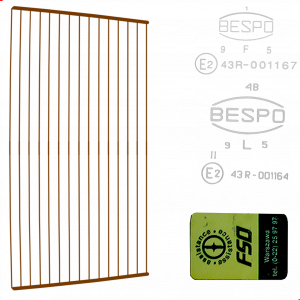

    If you need a better texture for your window bespo stamps, please feel free to use these


    • Like Like x 4
  18. Agent_Y

    Agent_Y
    Expand Collapse

    Joined:
    Jul 10, 2020
    Messages:
    6,829
    Thanks for this, will come in handy! Do you have a reference of where each sticker should be? Because so far I only had 1 random image of it without context, and I used that for the texture...

    Edit: Apparently I can't use these because the glass models are so badly made that I can't make a good UV for them, someone would have to redo all the glass...
    I think I'll just add them as separate models
    --- Post updated ---

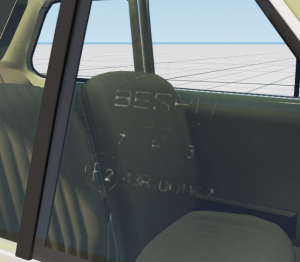

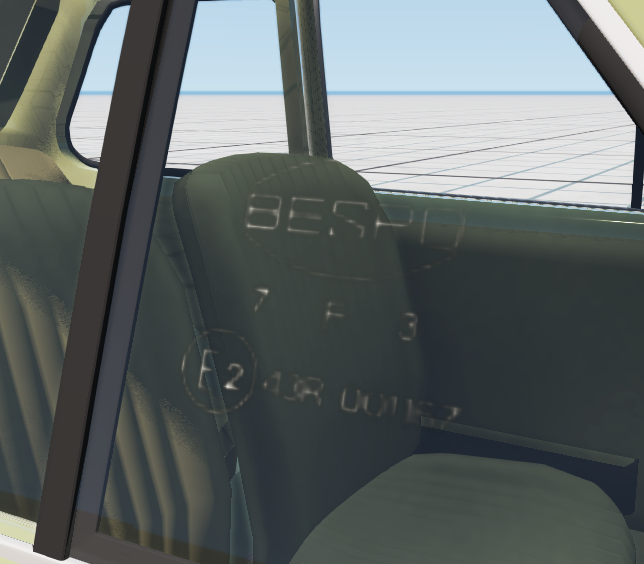

    Ok so I added the high quality glass logo to all windows:

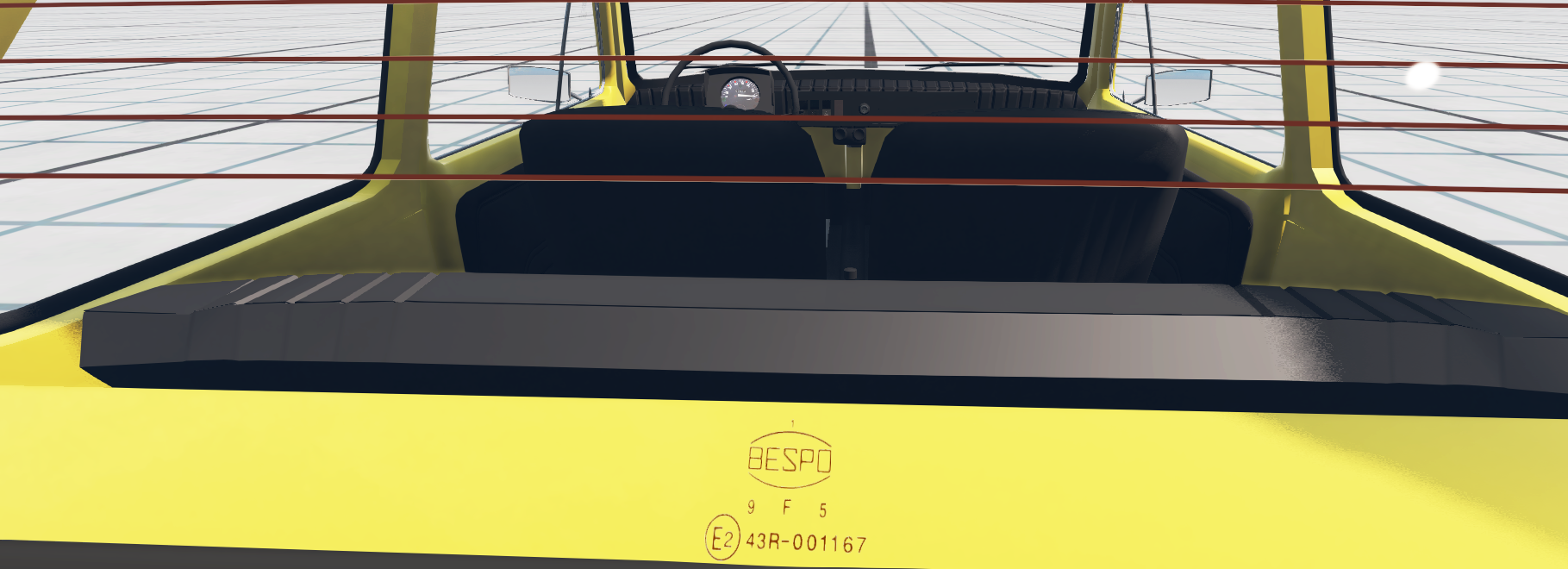

    Heated backlight has orange version:

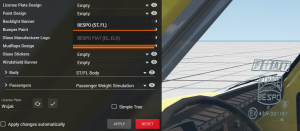

    And it's possible to change to the alternative version of the logo:

    #878 Agent_Y, Feb 25, 2022
    Last edited: Feb 25, 2022
    • Like Like x 7
  19. Agent_Y

    Agent_Y
    Expand Collapse

    Joined:
    Jul 10, 2020
    Messages:
    6,829

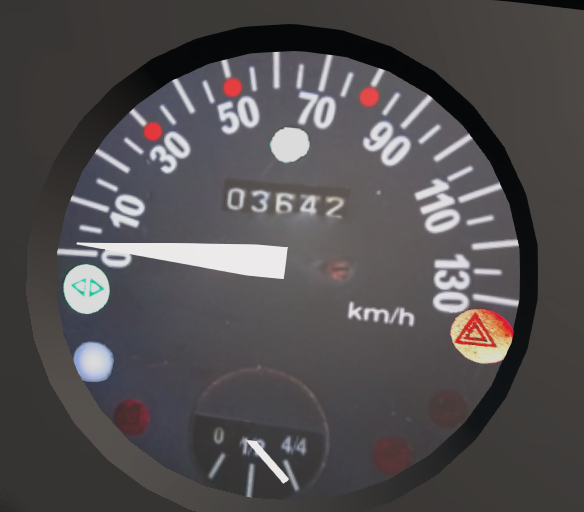

    Gauge lights working again with new textures, kinda janky but will have to do for now... No idea how to make it look like the real ones where each light illuminates the whole cluster

    • Like Like x 5
  20. A8den

    A8den
    Expand Collapse

    Joined:
    Jan 23, 2021
    Messages:
    405
    hi agent how about pickup maluch like homemade pickup maluch
    sry i didn´t find a picture of it in irl
