Solved how to add a towhitch to a car

Discussion in 'Mod Support' started by JBatic, Jun 30, 2016.

  1. JBatic

    JBatic
    Expand Collapse

    Joined:
    Jan 22, 2015
    Messages:
    1,052
    hello I have been trying to add a towhitch to the bronco Ive been working on and Ive run into a little bit of trouble adding it because one some cars it is just a modified jbeam that was copied from another car and other times like the bronco if I modify the jbeam from the pickup to attach to the bronco it doesn't show up as a part in the parts selector or on the truck itself, so can someone what am I doing wrong and how to fix it


    Attached Files:

  2. meywue

    meywue
    Expand Collapse
    Administrator
    BeamNG Team

    Joined:
    Nov 19, 2015
    Messages:
    325
    Hey,

    it seems that you just forgot to add the towhitch slot in your main jbeam. Add the following line to your slots:

    ["bronco_towhitch","","Tow Hitch"],

    It should appear now. But please be aware that you have to add a node offset to this slot to translate it to the correct position. Furthermore make sure that the nodeOffset of your trailer_small slot in your bronco_towhitch.jbeam fits.

    Cheers

  3. JBatic

    JBatic
    Expand Collapse

    Joined:
    Jan 22, 2015
    Messages:
    1,052
    thank you
    -post updated-
    just got it to work,I need some help setting the node offset and I have 2 problems, 1 default and moded trailers are missing wheels, 2 moded trailers cause wheels to fly off


    Attached Files:

  4. synsol

    synsol
    Expand Collapse
    QA Lead
    BeamNG Team

    Joined:
    Aug 4, 2013
    Messages:
    1,417
    About the node offset , you need to add it to the tow hitch (on the main jbeam) :
    Code:
    ["bronco_towhitch","bronco_towhitch","Tow Hitch"{"nodeOffset":{"x":0.0,"y":-0.500,"z":0}}],
    and for the tow hitch meshe (on the tow hitch jbeam)
    Code:
    ["towhitch", ["bronco_cab","bronco_towhitch"], [],{"pos":{"x":0.0, "y":0.0, "z":0.0}}],

    About the trailer wheel disapear , this need little more investigations, stay tuned :D

  5. JBatic

    JBatic
    Expand Collapse

    Joined:
    Jan 22, 2015
    Messages:
    1,052
    adding this right now, and thank you!
    --- Post updated ---

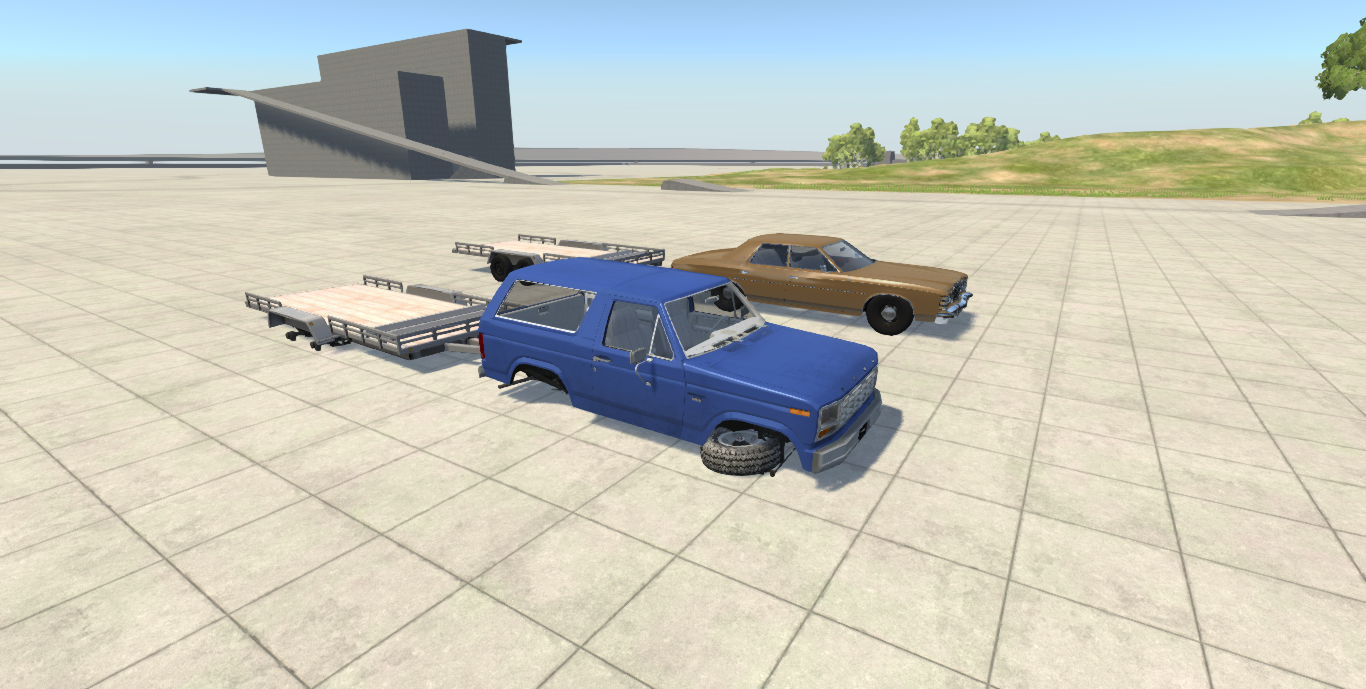

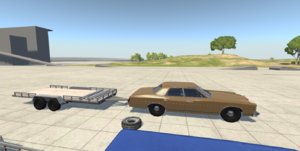

    I played with the node offset to fit how I want it to but I have found that with anything except the small trailer causes the wheels to fall off the truck, and all trailers are missing their wheels. this does not happen on any other vehicle with a working towhitch


    Attached Files:

    • screenshot_00025.png
    • screenshot_00026.png
  6. AR162B

    AR162B
    Expand Collapse

    Joined:
    Aug 11, 2013
    Messages:
    815
    You have to set the scalebeam ( and scalenode) etc values of all jbeams of the Bronco to one. That was changed in beam v0.5 so parts are interchangeable among vehicles.
    By the way you can't simply change the values to one without altering the rest of the beam values without changing the characteristics. (beamspring etc) Diamondback has a program which can alter those automatically.

    • Like Like x 2
