And i misspelled the title. thanks concussion! So i am trying to make a mod for the Pessima, and i figured i'd start with the engine. So i make the engine, do the editing in the .jbeam, and when i load up the game it's not showing up. Can anyone help me? I tried zipping the folder, unzipping it, renaming the .jbeam, fiddling with the brackets, putting it in another folder, and everything but it's still not showing up in the part selector. Also i may seem pretty dumb, some idiot hit me with a car at a 4-way stop and i hit my head. Code: { "pessima_engine_crazy": { "information":{ "authors":"EtyxNyx", "name":"2.0L DOHC I4 P35 Engine", "value":750, } "slotType" : "pessima_engine", "slots": [ ["type", "default", "description"] ["pessima_exhaust","pessima_exhaust", "Exhaust"], ["pessima_transmission","pessima_transmission_4A", "Transmission"], ["pessima_intake_dohc","pessima_intake_dohc", "Intake",{"coreSlot":true}], ], "powertrain": [ ["type", "name", "inputName", "inputIndex"], ["combustionEngine", "mainEngine", "dummy", 0], ], "mainEngine":{ "torque":[ ["rpm", "torque"] [500, 80.54], [600, 86.76], [700, 92.16], [800, 97.34], [900, 102.07], [1000, 106.01], [1100, 108.53], [1200, 110.67], [1300, 112.24], [1400, 114.55], [1500, 116.27], [1600, 118.6], [1700, 120.7], [1800, 122.85], [1900, 124.93], [2000, 126.21], [2100, 127.99], [2200, 130.04], [2300, 132.66], [2400, 135.23], [2500, 137.93], [2600, 140.91], [2700, 144.61], [2800, 148.07], [2900, 152.2], [3000, 156.86], [3100, 161.69], [3200, 167.51], [3300, 173.68], [3400, 181.69], [3500, 190.45], [3600, 202.69], [3700, 217.39], [3800, 235.78], [3900, 259.15], [4000, 281.74], [4100, 306.6], [4200, 330.27], [4300, 349.41], [4400, 362.88], [4500, 372.57], [4600, 375.92], [4700, 377.01], [4800, 376.71], [4900, 375.12], [5000, 373.65], [5100, 371.87], [5200, 369.06], [5300, 365.21], [5400, 362.19], [5500, 360.32], [5600, 358.49], [5700, 356.58], [5800, 353.96], [5900, 352.44], [6000, 351.33], [6100, 350.27], [6200, 348], [6300, 345.64], [6400, 343.14], [6500, 340.76], [6600, 338.26], [6700, 334.51], [6800, 330.69], [6900, 326.19], [7000, 321.69], [7100, 318.22], [7200, 312.98], [7300, 309.06], [7400, 304.92], [7500, 299.99], [7600, 294.21], [7700, 287.61], [7800, 281.14], [7900, 273.95], ], "idleRPM":900, "maxRPM":8000, "inertia":0.18, "friction":16 "dynamicFriction":0.02 "burnEfficiency":0.34 "torqueReactionNodes:":["e1l","e2l","e4r"] "particulates":0.02 "energyStorage": "mainTank", "requiredEnergyType":"gasoline", //cooling and oil system "thermalsEnabled":false "engineBlockMaterial":"aluminum" "oilVolume":4 //engine durability "cylinderWallTemperatureDamageThreshold":120 "headGasketDamageThreshold":1500000 "pistonRingDamageThreshold":1500000 "connectingRodDamageThreshold":2000000 //node beam interface "waterDamage": {"[engineGroup]:":["engine_intake"]}, "radiator": {"[engineGroup]:":["radiator"]}, "engineBlock": {"[engineGroup]:":["engine_block"]}, "breakTriggerBeam":"engine", }, "vehicleController": { "clutchLaunchStartRPM":2000, "clutchLaunchTargetRPM":2600, //**highShiftDown can be overwritten by automatic transmissions** "highShiftDownRPM":[0,0,0,2800,3300,3600,3800,3800] //**highShiftUp can be overwritten by intake modifications** "highShiftUpRPM":6300 }, "flexbodies": [ ["mesh", "[group]:", "nonFlexMaterials"], ["pessima_engine_dohc", ["pessima_engine"]], ], "nodes": [ ["id", "posX", "posY", "posZ"], //--2.0L I4 Engine-- {"selfCollision":false}, {"collision":true} {"nodeMaterial":"|NM_METAL"}, {"frictionCoef":0.5}, {"group":"pessima_engine"}, {"engineGroup":"engine_block"} {"nodeWeight":17}, ["e1r", 0.18, -1.62, 0.24,{"chemEnergy":1000,"burnRate":0.39,"flashPoint":800,"specHeat": 0.2,"selfIgnitionCoef":false,"smokePoint":650,"baseTemp":"thermals","conductionRadius":0.12}], ["e1l", 0.18, -1.38, 0.24], ["e2r", -0.29, -1.62, 0.24,{"chemEnergy":1000,"burnRate":0.39,"flashPoint":800,"specHeat": 0.2,"selfIgnitionCoef":false,"smokePoint":650,"baseTemp":"thermals","conductionRadius":0.12}], ["e2l", -0.29, -1.38, 0.24], {"engineGroup":["engine_block","engine_intake"]} ["e3r", 0.18, -1.66, 0.75,{"chemEnergy":1000,"burnRate":0.39,"flashPoint":800,"specHeat": 0.2,"selfIgnitionCoef":false,"smokePoint":650,"baseTemp":"thermals","conductionRadius":0.12}], ["e3l", 0.18, -1.28, 0.75], ["e4r", -0.29, -1.66, 0.75,{"isExhaust":true,"chemEnergy":1000,"burnRate":0.39,"flashPoint":800,"specHeat": 0.2,"selfIgnitionCoef":false,"smokePoint":650,"baseTemp":"thermals","conductionRadius":0.12}], ["e4l", -0.29, -1.28, 0.75], ["tc1", 0, -1.65, 0.42], {"engineGroup":""} {"group":""}, ], "beams": [ ["id1:", "id2:"], {"beamType":"|NORMAL", "beamLongBound":1.0, "beamShortBound":1.0}, {"beamSpring":8400600,"beamDamp":150}, {"beamDeform":540000,"beamStrength":"FLT_MAX"}, //engine ["e1r","e1l"], ["e2r","e2l"], ["e3r","e3l"], ["e4r","e4l"], ["e1r","e2r"], ["e1l","e2l"], ["e3r","e4r"], ["e3l","e4l"], ["e1r","e3r"], ["e1l","e3l"], ["e2r","e4r"{"isExhaust":true}], ["e2l","e4l"], ["e2r","e3r"], ["e2l","e3l"], ["e2r","e3l"], ["e2l","e3r"], ["e1r","e4r"], ["e1l","e4l"], ["e1r","e4l"], ["e1l","e4r"], ["e1r","e2l"], ["e1l","e2r"], ["e3r","e4l"], ["e3l","e4r"], ["e1r","e3l"], ["e1l","e3r"], ["e2r","e4l"], ["e2l","e4r"], ["tc1","e3l"], ["tc1","e3r"], ["tc1","e4l"], ["tc1","e4r"], ["tc1","e1l"], ["tc1","e1r"], ["tc1","e2l"], ["tc1","e2r"], {"beamSpring":60600,"beamDamp":50}, {"beamDeform":1000,"beamStrength":2000}, //rad tube beams {"breakGroup":"radtube"}, ["e3r","f15l"], ["e3r","f15"], ["e3r","f15l"], ["e3r","f15"], {"breakGroup":""}, {"beamPrecompression":1, "beamType":"|NORMAL", "beamLongBound":1.0, "beamShortBound":1.0}, ], } "pessima_intake_sohc": { "information":{ "authors":"BeamNG", "name":"Stock Intake", "value":150, } "slotType" : "pessima_intake_sohc", "flexbodies": [ ["mesh", "[group]:", "nonFlexMaterials"], ["pessima_airbox", ["pessima_engine","pessima_airbox"]], ["pessima_header", ["pessima_engine"]], ], "nodes": [ ["id", "posX", "posY", "posZ"], {"selfCollision":false}, {"collision":true} {"nodeMaterial":"|NM_METAL"}, {"frictionCoef":0.5}, {"group":"pessima_airbox"}, {"engineGroup":"engine_intake"}, {"nodeWeight":2}, ["airb", 0.57, -1.55, 0.75], {"engineGroup":""}, {"group":""}, ], "beams": [ ["id1:", "id2:"], {"beamType":"|NORMAL", "beamLongBound":1.0, "beamShortBound":1.0}, {"beamSpring":100600,"beamDamp":150}, {"beamDeform":12000,"beamStrength":36000}, ["airb","e1r"], ["airb","e2r"], ["airb","e3r"], ["airb","e4r"], ["airb","e1l"], ["airb","e2l"], ["airb","e3l"], ["airb","e4l"], {"beamPrecompression":1, "beamType":"|NORMAL", "beamLongBound":1.0, "beamShortBound":1.0}, ], } "pessima_intake_dohc": { "information":{ "authors":"BeamNG", "name":"Stock Intake", "value":150, } "slotType" : "pessima_intake_dohc", "flexbodies": [ ["mesh", "[group]:", "nonFlexMaterials"], ["pessima_airbox", ["pessima_engine","pessima_airbox"]], ["pessima_header", ["pessima_engine"]], ], "nodes": [ ["id", "posX", "posY", "posZ"], {"selfCollision":false}, {"collision":true} {"nodeMaterial":"|NM_METAL"}, {"frictionCoef":0.5}, {"group":"pessima_airbox"}, {"nodeWeight":2}, {"engineGroup":"engine_intake"}, ["airb", 0.57, -1.55, 0.75], {"engineGroup":""}, {"group":""}, ], "beams": [ ["id1:", "id2:"], {"beamType":"|NORMAL", "beamLongBound":1.0, "beamShortBound":1.0}, {"beamSpring":100600,"beamDamp":150}, {"beamDeform":12000,"beamStrength":36000}, ["airb","e1r"], ["airb","e2r"], ["airb","e3r"], ["airb","e4r"], ["airb","e1l"], ["airb","e2l"], ["airb","e3l"], ["airb","e4l"], {"beamPrecompression":1, "beamType":"|NORMAL", "beamLongBound":1.0, "beamShortBound":1.0}, ], } "pessima_intake_sport": { "information":{ "authors":"BeamNG", "name":"Sport Intake", "value":350, } "slotType" : "pessima_intake_dohc", "mainEngine":{ "torque":[ ["rpm", "torque"] [0, 0], [500, 90], [1000, 124], [2000, 142], [3000, 198], [4000, 215], [4500, 216], [5000, 215], [5500, 210], [6000, 195], [7000, 173], [8000, 113], ], "maxRPM":6700, "burnEfficiency":0.33 }, "flexbodies": [ ["mesh", "[group]:", "nonFlexMaterials"], ["pessima_airbox", ["pessima_engine","pessima_airbox"]], ["pessima_header", ["pessima_engine"]], ], "nodes": [ ["id", "posX", "posY", "posZ"], {"selfCollision":false}, {"collision":true} {"nodeMaterial":"|NM_METAL"}, {"frictionCoef":0.5}, {"group":"pessima_airbox"}, {"nodeWeight":2}, {"engineGroup":"engine_intake"}, ["airb", 0.57, -1.55, 0.75], {"engineGroup":""}, {"group":""}, ], "beams": [ ["id1:", "id2:"], {"beamType":"|NORMAL", "beamLongBound":1.0, "beamShortBound":1.0}, {"beamSpring":100600,"beamDamp":150}, {"beamDeform":12000,"beamStrength":36000}, ["airb","e1r"], ["airb","e2r"], ["airb","e3r"], ["airb","e4r"], ["airb","e1l"], ["airb","e2l"], ["airb","e3l"], ["airb","e4l"], {"beamPrecompression":1, "beamType":"|NORMAL", "beamLongBound":1.0, "beamShortBound":1.0}, ], } "pessima_turbo": { "information":{ "authors":"BeamNG", "name":"GTz Turbocharger", "value":950, } "slotType" : "pessima_intake_dohc", "turbocharger": { "wastegateStart":9, "wastegateLimit":11, "maxExhaustPower": 4000, "backPressureCoef": 0.000035, "frictionCoef": 1.4, "inertia":3.6, "damageThresholdTemperature": 620, "pressurePSI":[ //turbineRPM, pressure(PSI) [0, -0.5], [30000, 0], [60000, 5], [90000, 8], [150000, 11], [200000, 14], [250000, 17], ], "engineDef":[ //engineRPM, efficiency, exhaustFactor [0, 0.0, 0.0], [650, 0.2, 0.15], [1400, 0.3, 0.23], [2000, 0.36, 0.29], [2500, 0.46, 0.39], [3000, 0.78, 0.55], [4000, 0.9, 0.75], [5000, 0.95, 0.8], [6000, 1.0, 0.85], [7000, 1.0, 0.95], [8000, 0.9, 1.0], ], }, "mainEngine":{ "maxRPM":6900, "burnEfficiency":0.30 "cylinderWallTemperatureDamageThreshold":150 //turbocharger name "turbocharger":"turbocharger", }, "vehicleController": { "highShiftUpRPM":6700 }, "flexbodies": [ ["mesh", "[group]:", "nonFlexMaterials"], ["pessima_icpipe_intake", ["pessima_engine","pessima_intercooler","pessima_rad"]], ["pessima_icpipe_turbo", ["pessima_engine","pessima_intercooler","pessima_rad"]], ["pessima_turbo", ["pessima_engine"]], ["pessima_intercooler", ["pessima_intercooler","pessima_rad"]], ], "nodes": [ ["id", "posX", "posY", "posZ"], {"selfCollision":false}, {"collision":true} {"nodeMaterial":"|NM_METAL"}, {"frictionCoef":0.5}, {"group":"pessima_intercooler"}, {"nodeWeight":11}, ["interc", 0.0, -2.00, 0.35], {"group":""}, ], "beams": [ ["id1:", "id2:"], {"beamType":"|NORMAL", "beamLongBound":1.0, "beamShortBound":1.0}, {"beamSpring":350600,"beamDamp":60}, {"beamDeform":3000,"beamStrength":6000}, ["interc","f13rr"], ["interc","f13"], ["interc","f13ll"], ["interc","f18"], ["interc","f18r"], ["interc","f18l"], ["interc","f11rr"], ["interc","f11"], ["interc","f11ll"], {"beamPrecompression":1, "beamType":"|NORMAL", "beamLongBound":1.0, "beamShortBound":1.0}, ], } "pessima_turbo_stage2": { "information":{ "authors":"BeamNG", "name":"Stage 2 Turbocharger", "value":1800, } "slotType" : "pessima_intake_dohc", "turbocharger": { "wastegateStart":23, "wastegateLimit":25, "maxExhaustPower": 12000, "backPressureCoef": 0.00003, "frictionCoef": 5, "inertia":9, //"pressureRatePSI":55 "damageThresholdTemperature": 760, "pressurePSI":[ //turbineRPM, pressure(PSI) [0, -1.5], [30000, -0.5], [60000, 5], [90000, 13], [150000, 23], [200000, 29], [250000, 35], ], "engineDef":[ //engineRPM, efficiency, exhaustFactor [0, 0.0, 0.0], [650, 0.1, 0.15], [1400, 0.25, 0.23], [2000, 0.35, 0.39], [2500, 0.47, 0.50], [3000, 0.60, 0.65], [4000, 0.78, 0.8], [5000, 0.85, 0.95], [6000, 1.0, 1.0], [7000, 1.0, 1.0], [8000, 0.9, 1.0], ], }, "mainEngine":{ "idleRPM":1500, "maxRPM":7300, "burnEfficiency":0.26 "cylinderWallTemperatureDamageThreshold":150 //turbocharger name "turbocharger":"turbocharger", }, "vehicleController": { "clutchLaunchStartRPM":2200, "clutchLaunchTargetRPM":3200, "highShiftUpRPM":7000 }, "flexbodies": [ ["mesh", "[group]:", "nonFlexMaterials"], ["pessima_icpipe_intake", ["pessima_engine","pessima_intercooler","pessima_rad"]], ["pessima_icpipe_turbo", ["pessima_engine","pessima_intercooler","pessima_rad"]], ["pessima_turbo", ["pessima_engine"]], ["pessima_intercooler", ["pessima_intercooler","pessima_rad"]], ], "nodes": [ ["id", "posX", "posY", "posZ"], {"selfCollision":false}, {"collision":true} {"nodeMaterial":"|NM_METAL"}, {"frictionCoef":0.5}, {"group":"pessima_intercooler"}, {"nodeWeight":11}, ["interc", 0.0, -2.00, 0.35], {"group":""}, ], "beams": [ ["id1:", "id2:"], {"beamType":"|NORMAL", "beamLongBound":1.0, "beamShortBound":1.0}, {"beamSpring":350600,"beamDamp":60}, {"beamDeform":3000,"beamStrength":6000}, ["interc","f13rr"], ["interc","f13"], ["interc","f13ll"], ["interc","f18"], ["interc","f18r"], ["interc","f18l"], ["interc","f11rr"], ["interc","f11"], ["interc","f11ll"], {"beamPrecompression":1, "beamType":"|NORMAL", "beamLongBound":1.0, "beamShortBound":1.0}, ], } "pessima_turbo_stage3": { "information":{ "authors":"BeamNG", "name":"Stage 3 Variable Boost Turbocharger", "value":3000, } "slotType" : "pessima_intake_dohc", "variables": [ ["name", "type", "unit", "category", "default", "min", "max", "title", "description"] ["$wastegateStart", "range", "psi", "Turbocharger", 8, 6, 36, "Wastegate Start", "Pressure at which the wastegate begins to open"{"stepDis":0.5}] ["$wastegateLimit", "range", "psi", "Turbocharger", 10, 8, 38, "Wastegate Limit", "Pressure at which the wastegate is fully opened"{"stepDis":0.5}] ], "turbocharger": { "wastegateStart":"$wastegateStart", "wastegateLimit":"$wastegateLimit", "maxExhaustPower": 180000, "backPressureCoef": 0.000040, "frictionCoef": 20.3, "inertia":20.4, "pressureRatePSI": 95, "damageThresholdTemperature": 870, "pressurePSI":[ //turbineRPM, pressure(PSI) [0, -1], [30000, -0.5], [60000, 5], [90000, 18], [150000, 30], [200000, 36], [250000, 40], ], "engineDef":[ //engineRPM, efficiency, exhaustFactor [0, 0.0, 0.0], [650, 0.23, 0.15], [1400, 0.33, 0.23], [2000, 0.41, 0.29], [2500, 0.54, 0.41], [3000, 0.72, 0.61], [4000, 0.98, 0.77], [5000, 1.13, 0.87], [6000, 1.18, 1.0], [7000, 1.11, 1.00], [8000, 1.2, 1.0], [9000, 1.25, 1.0], ], }, "mainEngine":{ "idleRPM":1100, "maxRPM":8000, "burnEfficiency":0.24, "cylinderWallTemperatureDamageThreshold":180 //turbocharger name "turbocharger":"turbocharger", }, "vehicleController": { "clutchLaunchStartRPM":2200, "clutchLaunchTargetRPM":3200, "highShiftUpRPM":7700 }, "flexbodies": [ ["mesh", "[group]:", "nonFlexMaterials"], ["pessima_icpipe_intake", ["pessima_engine","pessima_intercooler","pessima_rad"]], ["pessima_icpipe_turbo", ["pessima_engine","pessima_intercooler","pessima_rad"]], ["pessima_turbo", ["pessima_engine"]], ["pessima_intercooler", ["pessima_intercooler","pessima_rad"]], ], "nodes": [ ["id", "posX", "posY", "posZ"], {"selfCollision":false}, {"collision":true} {"nodeMaterial":"|NM_METAL"}, {"frictionCoef":0.5}, {"group":"pessima_intercooler"}, {"nodeWeight":11}, ["interc", 0.0, -2.00, 0.35], {"group":""}, ], "beams": [ ["id1:", "id2:"], {"beamType":"|NORMAL", "beamLongBound":1.0, "beamShortBound":1.0}, {"beamSpring":350600,"beamDamp":60}, {"beamDeform":3000,"beamStrength":6000}, ["interc","f13rr"], ["interc","f13"], ["interc","f13ll"], ["interc","f18"], ["interc","f18r"], ["interc","f18l"], ["interc","f11rr"], ["interc","f11"], ["interc","f11ll"], {"beamPrecompression":1, "beamType":"|NORMAL", "beamLongBound":1.0, "beamShortBound":1.0}, ], } "pessima_transmission_4A": { "information":{ "authors":"BeamNG", "name":"4-Speed Automatic Transmission", "value":330, } "slotType" : "pessima_transmission", "slots": [ ["type", "default", "description"], ["pessima_transfer_case","pessima_transfer_case_FWD", "Transfer Case"{"coreSlot":true}], ["pessima_differential_F","pessima_differential_F", "Front Differential"], ], "powertrain": [ ["type", "name", "inputName", "inputIndex"], ["torqueConverter", "torqueConverter", "mainEngine", 1], ["automaticGearbox", "gearbox", "torqueConverter", 1], ], "gearbox": { "gearRatios":[-1.90, 0, 2.53, 1.44, 1.03, 0.725], "parkLockTorque":1800, "oneWayViscousCoef":10, "friction": 1, }, "torqueConverter": { "converterDiameter": 0.245, "converterStiffness":9, "couplingAVRatio":0.9, "stallTorqueRatio":1.8, "lockupClutchTorque":250, }, "vehicleController": { "automaticModes":"PRND21", "transmissionGearChangeDelay":1.5 "gearboxDecisionSmoothingDown":1 "gearboxDecisionSmoothingUp":2 "lowShiftDownRPM":1800, "lowShiftUpRPM":2800, "highShiftDownRPM":3400, "torqueConverterLockupRPM":2000 "torqueConverterLockupMinGear":3 }, "flexbodies": [ ["mesh", "[group]:", "nonFlexMaterials"], ["pessima_transmission", ["pessima_engine","pessima_transmission"]], ["pessima_shifterbase_A", ["pessima_body"]], ["pessima_gearindicator_A", ["pessima_dash"]], ], "glowMap":{ "auto_P":{"simpleFunction":"auto_p", "off":"pessima_gauges", "on":"pessima_gauges_on"}, "auto_R":{"simpleFunction":"auto_r", "off":"pessima_gauges", "on":"pessima_gauges_on"}, "auto_N":{"simpleFunction":"auto_n", "off":"pessima_gauges", "on":"pessima_gauges_on"}, "auto_D":{"simpleFunction":"auto_d", "off":"pessima_gauges", "on":"pessima_gauges_on"}, "auto_2":{"simpleFunction":"auto_2", "off":"pessima_gauges", "on":"pessima_gauges_on"}, "auto_1":{"simpleFunction":"auto_1", "off":"pessima_gauges", "on":"pessima_gauges_on"}, }, "props": [ ["func" , "mesh" , "idRef:", "idX:", "idY:" , "baseRotation" , "rotation" , "translation" , "min", "max", "offset", "multiplier"] //automatic transmission ["gear_A" ,"pessima_shifter_A", "f7r","f7l","f8r", {"x":85, "y":0, "z":0}, {"x":1, "y":0, "z":0} , {"x":0, "y":0.2, "z":0.0}, 0, 1, 0, 1], ], "nodes": [ ["id", "posX", "posY", "posZ"], //--4 Speed Auto-- {"selfCollision":false}, {"collision":true} {"nodeMaterial":"|NM_METAL"}, {"frictionCoef":0.5}, {"group":"pessima_transmission"}, {"nodeWeight":12}, ["tra1r",-0.27, -1.29, 0.31], ["tra1l", 0.27, -1.29, 0.31], ["ta1", 0, -1.29, 0.31], {"group":""}, ], "beams": [ ["id1:", "id2:"], //--TRANSMISSION-- {"beamType":"|NORMAL", "beamLongBound":1.0, "beamShortBound":1.0}, {"beamSpring":8400600,"beamDamp":150}, {"beamDeform":540000,"beamStrength":"FLT_MAX"}, ["tra1l","e2r"], ["tra1l","e4r"], ["tra1l","e2l"], ["tra1l","e4l"], ["tra1r","e1r"], ["tra1r","e3r"], ["tra1r","e1l"], ["tra1r","e3l"], ["tra1r","tra1l"], ["ta1","e1l"], ["ta1","e2l"], ["ta1","e4l"], ["ta1","e3l"], ["ta1","tra1l"], ["ta1","tra1r"], {"beamPrecompression":1, "beamType":"|NORMAL", "beamLongBound":1.0, "beamShortBound":1.0}, ], } "pessima_transmission_5M": { "information":{ "authors":"BeamNG", "name":"5-Speed Manual Transmission", "value":250, } "slotType" : "pessima_transmission", "slots": [ ["type", "default", "description"], ["pessima_transfer_case","pessima_transfer_case_AWD", "Transfer Case"{"coreSlot":true}], ["pessima_differential_F","pessima_differential_F", "Front Differential"], ], "powertrain": [ ["type", "name", "inputName", "inputIndex"], ["frictionClutch", "clutch", "mainEngine", 1], ["manualGearbox", "gearbox", "clutch", 1], ], "gearbox": { "gearRatios":[-3.0, 0, 3.31, 1.81, 1.19, 0.87, 0.71], "friction": 1, }, "vehicleController": { "lowShiftDownRPM":[0,0,0,2800,3300,3600,3800,3800] "lowShiftUpRPM":5000, "wheelSlipUpThreshold":120, }, "flexbodies": [ ["mesh", "[group]:", "nonFlexMaterials"], ["pessima_transmission", ["pessima_engine","pessima_transmission"]], ["pessima_shifter_M", ["pessima_body"]], ], "props": [ ["func" , "mesh" , "idRef:", "idX:", "idY:" , "baseRotation" , "rotation" , "translation" , "min", "max", "offset", "multiplier"] //manual transmission //["gear_M" ,"pessima_shifter_M", "f7r","f7l","f8r", {"x":85, "y":0, "z":0}, {"x":0, "y":0, "z":0} , {"x":0, "y":0, "z":0.0}, 0, 1, 0, 1], ["clutch", "pessima_clutchpedal", "f1l","f1r","f6l", {"x":5, "y":0, "z":180}, {"x":-25, "y":0, "z":0}, {"x":0.0, "y":0, "z":0}, 0, 1, 0, 1], ], "nodes": [ ["id", "posX", "posY", "posZ"], //--5 Speed Manual-- {"selfCollision":false}, {"collision":true} {"nodeMaterial":"|NM_METAL"}, {"frictionCoef":0.5}, {"group":"pessima_transmission"}, {"nodeWeight":12}, ["tra1r",-0.27, -1.29, 0.31], ["tra1l", 0.27, -1.29, 0.31], ["ta1", 0, -1.29, 0.31], {"group":""}, ], "beams": [ ["id1:", "id2:"], //--TRANSMISSION CONE-- {"beamType":"|NORMAL", "beamLongBound":1.0, "beamShortBound":1.0}, {"beamSpring":8400600,"beamDamp":150}, {"beamDeform":540000,"beamStrength":"FLT_MAX"}, ["tra1l","e2r"], ["tra1l","e4r"], ["tra1l","e2l"], ["tra1l","e4l"], ["tra1r","e1r"], ["tra1r","e3r"], ["tra1r","e1l"], ["tra1r","e3l"], ["tra1r","tra1l"], ["ta1","e1l"], ["ta1","e2l"], ["ta1","e4l"], ["ta1","e3l"], ["ta1","tra1l"], ["ta1","tra1r"], {"beamPrecompression":1, "beamType":"|NORMAL", "beamLongBound":1.0, "beamShortBound":1.0}, ], } "pessima_transmission_5M_HX": { "information":{ "authors":"BeamNG", "name":"High Efficiency 5-Speed Manual Transmission", "value":290, } "slotType" : "pessima_transmission", "slots": [ ["type", "default", "description"], ["pessima_transfer_case","pessima_transfer_case_FWD", "Transfer Case"{"coreSlot":true}], ["pessima_differential_F","pessima_differential_F", "Front Differential"], ], "powertrain": [ ["type", "name", "inputName", "inputIndex"], ["frictionClutch", "clutch", "mainEngine", 1], ["manualGearbox", "gearbox", "clutch", 1], ], "gearbox": { "gearRatios":[-3.1, 0, 3.25, 1.65, 1.03, 0.81, 0.64] "friction": 1, }, "vehicleController": { "lowShiftDownRPM":[0,0,0,2800,3300,3600,3800,3800] "lowShiftUpRPM":5000, "wheelSlipUpThreshold":120, }, "flexbodies": [ ["mesh", "[group]:", "nonFlexMaterials"], ["pessima_transmission", ["pessima_engine","pessima_transmission"]], ["pessima_shifter_M", ["pessima_body"]], ], "props": [ ["func" , "mesh" , "idRef:", "idX:", "idY:" , "baseRotation" , "rotation" , "translation" , "min", "max", "offset", "multiplier"] //manual transmission //["gear_M" ,"pessima_shifter_M", "f7r","f7l","f8r", {"x":85, "y":0, "z":0}, {"x":0, "y":0, "z":0} , {"x":0, "y":0, "z":0.0}, 0, 1, 0, 1], ["clutch", "pessima_clutchpedal", "f1l","f1r","f6l", {"x":5, "y":0, "z":180}, {"x":-25, "y":0, "z":0}, {"x":0.0, "y":0, "z":0}, 0, 1, 0, 1], ], "nodes": [ ["id", "posX", "posY", "posZ"], //--5 Speed Manual-- {"selfCollision":false}, {"collision":true} {"nodeMaterial":"|NM_METAL"}, {"frictionCoef":0.5}, {"group":"pessima_transmission"}, {"nodeWeight":12}, ["tra1r",-0.27, -1.29, 0.31], ["tra1l", 0.27, -1.29, 0.31], ["ta1", 0, -1.29, 0.31], {"group":""}, ], "beams": [ ["id1:", "id2:"], //--TRANSMISSION CONE-- {"beamType":"|NORMAL", "beamLongBound":1.0, "beamShortBound":1.0}, {"beamSpring":8400600,"beamDamp":150}, {"beamDeform":540000,"beamStrength":"FLT_MAX"}, ["tra1l","e2r"], ["tra1l","e4r"], ["tra1l","e2l"], ["tra1l","e4l"], ["tra1r","e1r"], ["tra1r","e3r"], ["tra1r","e1l"], ["tra1r","e3l"], ["tra1r","tra1l"], ["ta1","e1l"], ["ta1","e2l"], ["ta1","e4l"], ["ta1","e3l"], ["ta1","tra1l"], ["ta1","tra1r"], {"beamPrecompression":1, "beamType":"|NORMAL", "beamLongBound":1.0, "beamShortBound":1.0}, ], } "pessima_transmission_6M_race": { "information":{ "authors":"BeamNG", "name":"Race 6-Speed Manual Transmission", "value":900, } "slotType" : "pessima_transmission", "slots": [ ["type", "default", "description"], ["pessima_transfer_case","pessima_transfer_case_AWD_race", "Transfer Case"{"coreSlot":true}], ["pessima_differential_F","pessima_differential_F", "Front Differential"], ], "variables": [ ["name", "type", "unit", "category", "default", "min", "max", "title", "description"] ["$gear_R", "range", ":1", "Transmission", -2.95, -6.0, -0.5, "Reverse Gear Ratio", "Torque multiplication ratio"] ["$gear_1", "range", ":1", "Transmission", 3.65, 0.5, 6.0, "1st Gear Ratio", "Torque multiplication ratio"] ["$gear_2", "range", ":1", "Transmission", 2.37, 0.5, 6.0, "2nd Gear Ratio", "Torque multiplication ratio"] ["$gear_3", "range", ":1", "Transmission", 1.67, 0.5, 6.0, "3rd Gear Ratio", "Torque multiplication ratio"] ["$gear_4", "range", ":1", "Transmission", 1.28, 0.5, 6.0, "4th Gear Ratio", "Torque multiplication ratio"] ["$gear_5", "range", ":1", "Transmission", 1.02, 0.5, 6.0, "5th Gear Ratio", "Torque multiplication ratio"] ["$gear_6", "range", ":1", "Transmission", 0.82, 0.5, 6.0, "6th Gear Ratio", "Torque multiplication ratio"] ], "powertrain": [ ["type", "name", "inputName", "inputIndex"], ["frictionClutch", "clutch", "mainEngine", 1], ["manualGearbox", "gearbox", "clutch", 1], ], "gearbox": { "gearRatios":["$gear_R", 0, "$gear_1", "$gear_2", "$gear_3", "$gear_4", "$gear_5", "$gear_6"], "friction": 1, }, "vehicleController": { "lowShiftDownRPM":[0,0,0,3200,3500,4000,4200,4200] "lowShiftUpRPM":5400, }, "flexbodies": [ ["mesh", "[group]:", "nonFlexMaterials"], ["pessima_transmission", ["pessima_engine","pessima_transmission"]], ["pessima_shifter_M", ["pessima_body"]], ], "props": [ ["func" , "mesh" , "idRef:", "idX:", "idY:" , "baseRotation" , "rotation" , "translation" , "min", "max", "offset", "multiplier"] //manual transmission //["gear_M" ,"pessima_shifter_M", "f7r","f7l","f8r", {"x":85, "y":0, "z":0}, {"x":0, "y":0, "z":0} , {"x":0, "y":0, "z":0.0}, 0, 1, 0, 1], ["clutch", "pessima_clutchpedal", "f1l","f1r","f6l", {"x":5, "y":0, "z":180}, {"x":-25, "y":0, "z":0}, {"x":0.0, "y":0, "z":0}, 0, 1, 0, 1], ], "nodes": [ ["id", "posX", "posY", "posZ"], {"selfCollision":false}, {"collision":true} {"nodeMaterial":"|NM_METAL"}, {"frictionCoef":0.5}, {"group":"pessima_transmission"}, {"nodeWeight":12}, ["tra1r",-0.27, -1.29, 0.31], ["tra1l", 0.27, -1.29, 0.31], ["ta1", 0, -1.29, 0.31], {"group":""}, ], "beams": [ ["id1:", "id2:"], //--TRANSMISSION CONE-- {"beamType":"|NORMAL", "beamLongBound":1.0, "beamShortBound":1.0}, {"beamSpring":8400600,"beamDamp":150}, {"beamDeform":540000,"beamStrength":"FLT_MAX"}, ["tra1l","e2r"], ["tra1l","e4r"], ["tra1l","e2l"], ["tra1l","e4l"], ["tra1r","e1r"], ["tra1r","e3r"], ["tra1r","e1l"], ["tra1r","e3l"], ["tra1r","tra1l"], ["ta1","e1l"], ["ta1","e2l"], ["ta1","e4l"], ["ta1","e3l"], ["ta1","tra1l"], ["ta1","tra1r"], {"beamPrecompression":1, "beamType":"|NORMAL", "beamLongBound":1.0, "beamShortBound":1.0}, ], } "pessima_transfer_case_FWD": { "information":{ "authors":"BeamNG", "name":"FWD Transfer Case", "value":500, }, "slotType" : "pessima_transfer_case", "powertrain" : [ ["type", "name", "inputName", "inputIndex"], ["shaft", "transfercase", "gearbox", 1, {"outputPortOverride":[2], "friction":3}], ], }, "pessima_transfer_case_RWD": { "information":{ "authors":"BeamNG", "name":"RWD Transfer Case", "value":700, }, "slotType" : "pessima_transfer_case", "powertrain" : [ ["type", "name", "inputName", "inputIndex"], ["shaft", "transfercase", "gearbox", 1, {"friction":3}], ], "flexbodies": [ ["mesh", "[group]:", "nonFlexMaterials"], ["pessima_transfercase", ["pessima_engine","pessima_transmission"]], ], }, "pessima_transfer_case_AWD": { "information":{ "authors":"BeamNG", "name":"Viscous AWD Transfer Case", "value":1100, }, "slotType" : "pessima_transfer_case", "controller": [ ["fileName"], ["viscotronic", {"transfercaseName":"transfercase"}], ], "powertrain" : [ ["type", "name", "inputName", "inputIndex"], ["splitShaft", "transfercase", "gearbox", 1, {"splitType":"viscous", "primaryOutputID":2, "viscousCoef":15, "viscousTorque":500, "friction":5}], ], "flexbodies": [ ["mesh", "[group]:", "nonFlexMaterials"], ["pessima_transfercase", ["pessima_engine","pessima_transmission"]], ], }, "pessima_transfer_case_AWD_race": { "information":{ "authors":"BeamNG", "name":" Race AWD Transfer Case", "value":2500, }, "slotType" : "pessima_transfer_case", "variables": [ ["name", "type", "unit", "category", "default", "min", "max", "title", "description"], ["$difftorquesplit_C", "range", "", "Differentials", 0.5, 0.25, 0.75, "Center LSD Torque Split", "Percent torque to rear wheels", {"minDis":25, "maxDis":75}], ["$lsdpreload_C", "range", "N/m", "Differentials", 50, 0, 500, "Center LSD Preload", "Initial cross torque between front and rear wheels"], ["$lsdlockcoef_C", "range", "", "Differentials", 0.20, 0, 0.5, "Center LSD Forward Locking ", "Locking effect proportional to engine torque", {"minDis":0, "maxDis":100}], ["$lsdlockcoefrev_C", "range", "", "Differentials", 0.05, 0, 0.5, "Center LSD Reverse Locking", "Locking effect proportional to engine braking", {"minDis":0, "maxDis":100}], ], "powertrain" : [ ["type", "name", "inputName", "inputIndex"], ["differential", "transfercase", "gearbox", 1, {"diffType":"lsd", "lsdPreload":"$lsdpreload_C", "lsdLockCoef":"$lsdlockcoef_C", "lsdRevLockCoef":"$lsdlockcoefrev_C", "diffTorqueSplit":"$difftorquesplit_C", "friction":5}], ], "flexbodies": [ ["mesh", "[group]:", "nonFlexMaterials"], ["pessima_transfercase", ["pessima_engine","pessima_transmission"]], ], }, "pessima_differential_F": { "information":{ "authors":"BeamNG", "name":"Open Front Differential", "value":400, }, "slotType" : "pessima_differential_F", "powertrain" : [ ["type", "name", "inputName", "inputIndex"], ["differential", "differential_F", "transfercase", 2, {"diffType":"open", "gearRatio": 4.266, "friction":6}], ], "flexbodies": [ ["mesh", "[group]:", "nonFlexMaterials"], ["pessima_halfshaft_F", ["pessima_tierod_F","pessima_hub_F","pessima_transmission","wheelhub_FR","wheelhub_FL"]], ], "beams": [ ["id1:", "id2:"], //halfshafts {"beamPrecompression":1, "beamType":"|BOUNDED", "beamLongBound":0.04, "beamShortBound":0.04}, {"beamSpring":0,"beamDamp":0,"beamDeform":3240,"beamStrength":8550}, {"beamLimitSpring":7501000,"beamLimitDamp":300}, {"optional":true}, {"breakGroupType":1}, {"breakGroup":"wheel_FR"}, ["fw1r","tra1r", {"name":"axle_FR"}], {"breakGroup":"wheel_FL"}, ["fw1l","tra1l", {"name":"axle_FL"}], {"breakGroup":""}, {"optional":false}, {"breakGroupType":0}, {"beamPrecompression":1, "beamType":"|NORMAL", "beamLongBound":1.0, "beamShortBound":1.0}, ], }, "pessima_differential_F_LSD": { "information":{ "authors":"BeamNG", "name":"Limited Slip Front Differential", "value":800, }, "slotType" : "pessima_differential_F", "powertrain" : [ ["type", "name", "inputName", "inputIndex"], ["differential", "differential_F", "transfercase", 2, {"diffType":"viscous", "gearRatio": 4.266, "viscousCoef":10, "viscousTorque":500, "friction":6}], ], "flexbodies": [ ["mesh", "[group]:", "nonFlexMaterials"], ["pessima_halfshaft_F", ["pessima_tierod_F","pessima_hub_F","pessima_transmission","wheelhub_FR","wheelhub_FL"]], ], "beams": [ ["id1:", "id2:"], //halfshafts {"beamPrecompression":1, "beamType":"|BOUNDED", "beamLongBound":0.04, "beamShortBound":0.04}, {"beamSpring":0,"beamDamp":0,"beamDeform":3240,"beamStrength":8550}, {"beamLimitSpring":7501000,"beamLimitDamp":300}, {"optional":true}, {"breakGroupType":1}, {"breakGroup":"wheel_FR"}, ["fw1r","tra1r", {"name":"axle_FR"}], {"breakGroup":"wheel_FL"}, ["fw1l","tra1l", {"name":"axle_FL"}], {"breakGroup":""}, {"optional":false}, {"breakGroupType":0}, {"beamPrecompression":1, "beamType":"|NORMAL", "beamLongBound":1.0, "beamShortBound":1.0}, ], }, "pessima_differential_F_race": { "information":{ "authors":"BeamNG", "name":"Race Limited Slip Front Differential", "value":1250, }, "slotType" : "pessima_differential_F", "variables": [ ["name", "type", "unit", "category", "default", "min", "max", "title", "description"], ["$lsdpreload_F", "range", "N/m", "Differentials", 50, 0, 500, "Front LSD Preload", "Initial cross torque between left and right wheels"], ["$lsdlockcoef_F", "range", "", "Differentials", 0.20, 0, 0.5, "Front LSD Forward Locking ", "Locking effect proportional to engine torque", {"minDis":0, "maxDis":100}], ["$lsdlockcoefrev_F", "range", "", "Differentials", 0.10, 0, 0.5, "Front LSD Reverse Locking", "Locking effect proportional to engine braking", {"minDis":0, "maxDis":100}], ], "powertrain" : [ ["type", "name", "inputName", "inputIndex"], ["differential", "differential_F", "transfercase", 2, {"diffType":"lsd", "gearRatio":4.266, "lsdPreload":"$lsdpreload_F", "lsdLockCoef":"$lsdlockcoef_F", "lsdRevLockCoef":"$lsdlockcoefrev_F", "friction":6}], ], "flexbodies": [ ["mesh", "[group]:", "nonFlexMaterials"], ["pessima_halfshaft_F", ["pessima_tierod_F","pessima_hub_F","pessima_transmission","wheelhub_FR","wheelhub_FL"]], ], "beams": [ ["id1:", "id2:"], //halfshafts {"beamPrecompression":1, "beamType":"|BOUNDED", "beamLongBound":0.04, "beamShortBound":0.04}, {"beamSpring":0,"beamDamp":0,"beamDeform":3240,"beamStrength":8550}, {"beamLimitSpring":7501000,"beamLimitDamp":300}, {"optional":true}, {"breakGroupType":1}, {"breakGroup":"wheel_FR"}, ["fw1r","tra1r", {"name":"axle_FR"}], {"breakGroup":"wheel_FL"}, ["fw1l","tra1l", {"name":"axle_FL"}], {"breakGroup":""}, {"optional":false}, {"breakGroupType":0}, {"beamPrecompression":1, "beamType":"|NORMAL", "beamLongBound":1.0, "beamShortBound":1.0}, ], }, }

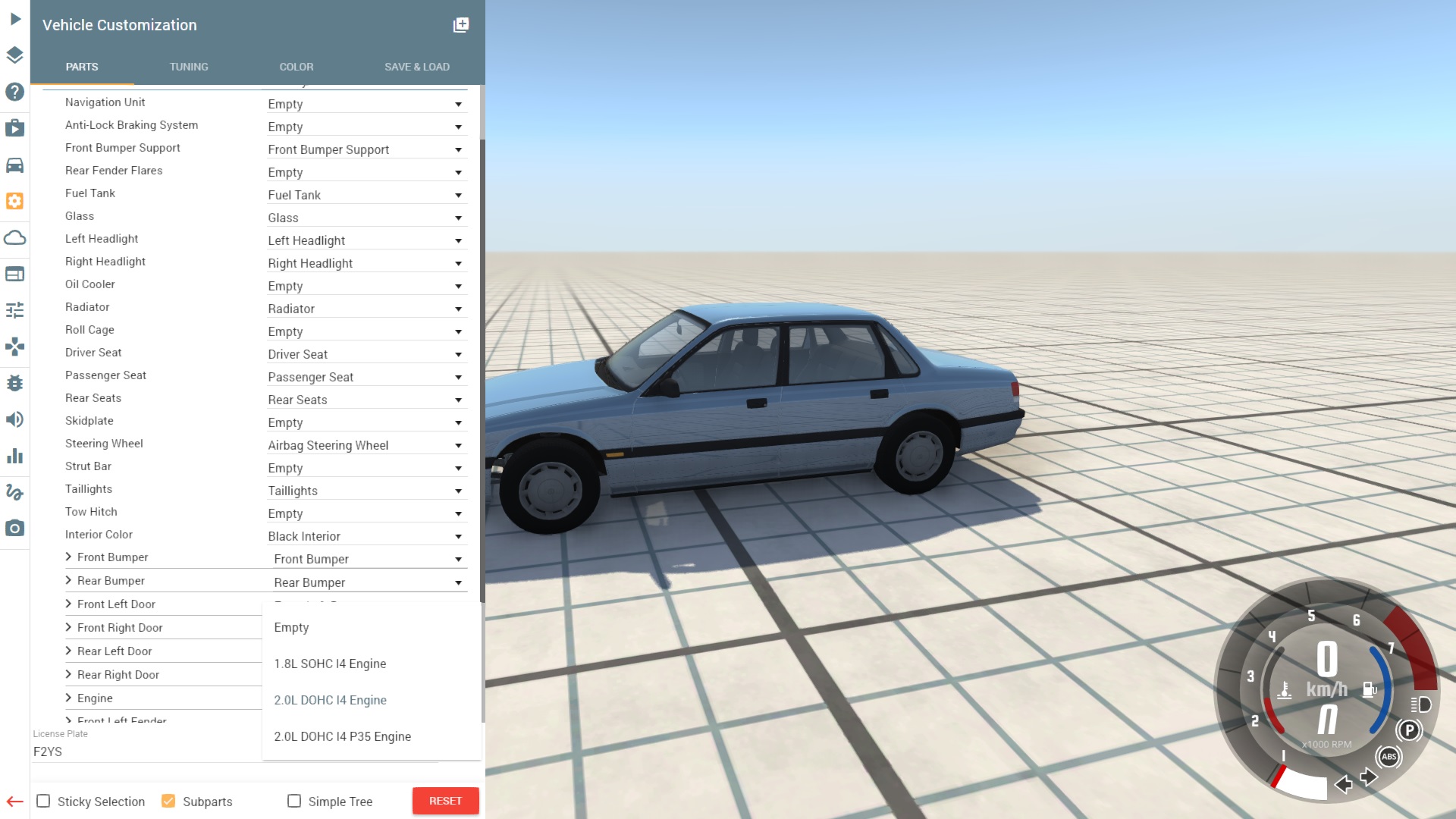

Works for me...? Although I just copy/pasted the "engine" part. All the others seemed redundant stock parts, so I left them out.
okay that may be it, haha. Or maybe it's cause i have it in my mods folder. By the way, how does it handle (since i haven't tested it and may not) Yeah, i have it in my mod folder, i have no other mods that affect the pessima, all that's in the jbeam now is the engine, it's not showing up. ANYONE know why it isn't working?
I don't know, I just checked whether the part was selectable or not. I don't know if the stock parts on the standard LX Pessima can cope with a "crazy" engine anyway.
I was putting it in a rally pessima lel.. anyways i'm just gonna insert it into the stock jbeam for now, figure it out later My grand plan is to make the Ibishu P35, a lancia 037 that's not a lancia 037. --- Post updated --- Now the damn car's just entirely not showing up arrrrrgh rfersdgferdge --- Post updated --- WHat did you do to make it work forr you, because i do something and now the pessima isn't even in the vehicle selector
No, i think the problem *may* be that instead of being "content/vehicles/pessima/vehicles/pessima" i have "content/vehicles/pessima/pessima/pessima/vehicles/pessima". ALthough i'll check the brackets too.
well now it shows up in the selector but it won't spawn. I have a really messed up bain rn (think i may have a concussion) so looking at the brackets & shiz is like a sea of black lines-can you check?(sorry i sound really needy, i would wait until i'm at top capability but i may have this as a school project)
K. Once that's done(by the way thank you thankyouthankyouthankyouthankyouthankyouthankyouthankyouthankyouthankyouthankyouthankyouthankyouthankyouthankyouthankyouthankyouthankyouthankyouthankyouthankyouthankyouthankyouthankyouthankyouthankyouthankyou!!!!!!!!!!!!!!!!!!!!!!) i'll create a thread in Content Creation for the Ibishu P35, and i think the rest'll go off pretty well.
If you actually think you have a concussion, take a break. Then come back with a clear head, it will be far more productive to have a clear head and take some time off than to just sit there doing very little. Trust me I do it all the time Also can you take a screenshot of console?
Sadly I can't take time off other than sleeping (which I'm about to), this project has to be finished on the 26th and I still need to do the body of the car.
