Drivetrain Creation Issues

Discussion in 'Content Creation' started by Bobmc757, Jan 13, 2015.

  1. Bobmc757

    Bobmc757
    Expand Collapse

    Joined:
    Nov 7, 2014
    Messages:
    43
    I recently have been trying to modify some vehicles for personal use by adding new or replacing engines and transmissions with my own. I have not been changing the modeling of the engine but what I do is copy and engine or directly replace one, change the torque numbers and the rpm parameters, and add a new engine sound and I have modified a transmission which worked. What's happened to two of the engines I've done (they're on separate cars and are the only two that I have renamed) is when I try to accelerate on the first one of them I get serious torque converter slip. It's supposed to be a diesel so it can barely pass 3000 rpm and the issue is the stall is at 2100 rpm so if I hit the gas it instantly revs up to that and stays until the the speed of the engine and transmission nearly match. Then after that point like if I reach the redline in gear 1 at 3100 rpm for example, if I let off the gas it drops down to 2500 rpm which seems to be the true gear ratio speed. Is there any way to lower the rpm at which this happens and fix the rpm drop issue? The second issue is on a manual on a different car. I took a default engine for a car copied it, renamed it, changed its performance, and gave it a custom engine sound. This car does not have a specific transmission file nor is there a specific one in the engine file or on the parts selection. The default engine works fine, but mine will climb to 500 rpm normally which is the biggest increase of torque but after that, regardless of what gear it is in, it revs right to the redline much life flooring an automatic stuck in limp mode or in its high is gear as if it is simulating a torque converter. The clutch input reads at 0 and it happens on all transmission settings. If someone can point me in the right direction that would greatly be appreciated.

    #1 Bobmc757, Jan 13, 2015
    Last edited: Jan 13, 2015
  2. KennyWah

    KennyWah
    Expand Collapse

    Joined:
    Jan 16, 2013
    Messages:
    2,199
    In the differential try changing the diff ratio to a higher value.

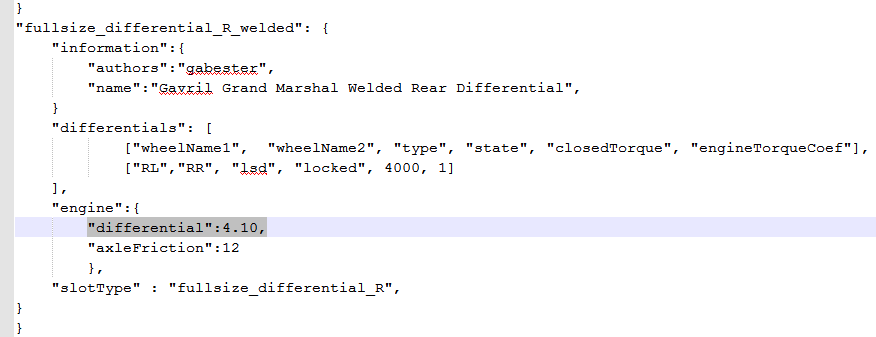

    Example from random car


  3. Miura

    Miura
    Expand Collapse

    Joined:
    Aug 5, 2012
    Messages:
    311
    Sounds like the clutch slips if the engines have higher torque than before. "clutchTorque" should be same as or higher than max torque of the engine. If "clutchTorque" is not defined, it's set to the engine's peak torque. Try higher "viscousCoupling" with the automatic.

    If those don't help, post the files.

  4. Bobmc757

    Bobmc757
    Expand Collapse

    Joined:
    Nov 7, 2014
    Messages:
    43
    The manual is fixed, but the Automatic is still being a real problem. Here is the file for it:


    Attached Files:
