D series has a massive steering pull. (solved)

Discussion in 'Troubleshooting: Bugs, Questions and Support' started by AllTerrainOutlaw, Jun 8, 2017.

  1. AllTerrainOutlaw

    AllTerrainOutlaw
    Expand Collapse

    Joined:
    Feb 7, 2015
    Messages:
    375
    okay before you guys say anything, no it is not torque steer. I tested that with the independent front suspension.

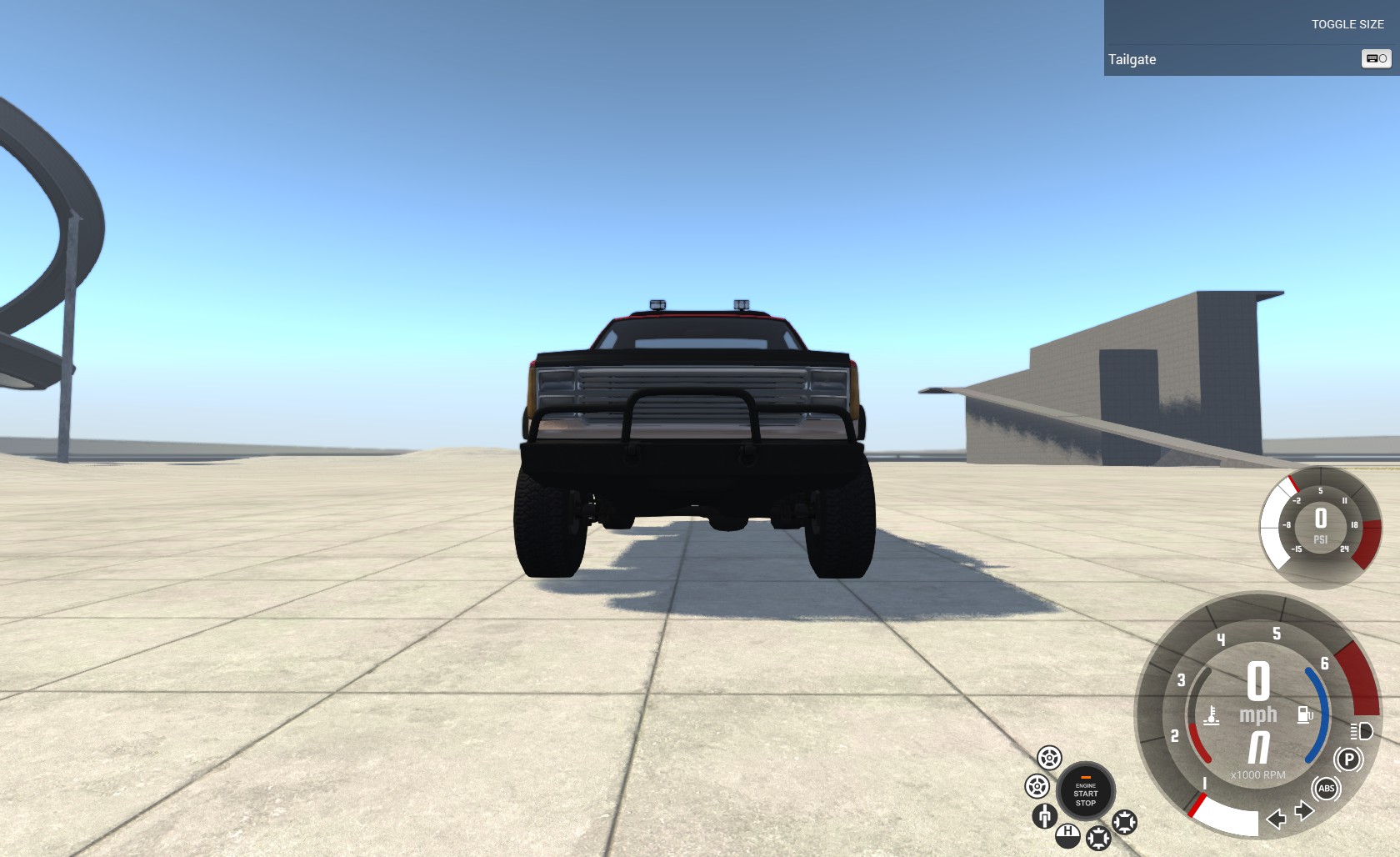

    So, i had tried to build an off-road rig with the live axle suspension with off road parts. and it always seemed to have massive pull even with the steering center set to 0 and toe set to 0. However if i make the center counteracting the pull it still pulls to the left. After extensive experimenting i found that the issue comes from a bad alignment with the front driver side wheel. as seen in the pic below.

    As u notice the driver side front wheel toe is slightly turned out as the passenger side is straight.

    #1 AllTerrainOutlaw, Jun 8, 2017
  2. Rainvest

    Rainvest
    Expand Collapse

    Joined:
    Dec 26, 2014
    Messages:
    1,902
    Mess around with steering center as the default D series with a solid axle has something set to around -32. Or it's just a bug and i'm looking like a complete fool.

    #2 Rainvest, Jun 8, 2017
  3. Goosah

    Goosah
    Expand Collapse
    Global Moderator
    BeamNG Team

    Joined:
    Aug 30, 2013
    Messages:
    790

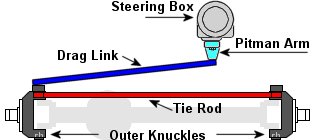

    Because of the drag link steering design coupled with leaf springs, when the ride height changes, the axle moves straight up and down but the angle of the drag link changes, forcing the steering to the side. You have to tune the steering center for a given ride height. Adjusting steering center is like adjusting the drag link, toe is adjusting the tie rod. Set the toe until both wheels have equal toe readout in the real time alignment data (like 0.3 one side, -0.3 other side) then adjust steering center until the truck cruises straight.

    In reality, if you lift this type of truck without adjusting the drag link, the steering wheel would want to sit off center, but in game, a gamepad or kbd control forces the steering wheel to be centered. With a FFB wheel however, everything reacts exactly as it should.


    #3 Goosah, Jun 8, 2017
    • Like Like x 1
    • Informative Informative x 1
  4. firestarspelt

    firestarspelt
    Expand Collapse

    Joined:
    Aug 4, 2013
    Messages:
    100
    could you add rack and pinion

    #4 firestarspelt, Jun 8, 2017
  5. rocksim

    rocksim
    Expand Collapse

    Joined:
    Nov 10, 2014
    Messages:
    373
    Happens to me all the time.

    #5 rocksim, Jun 8, 2017
  6. Rainvest

    Rainvest
    Expand Collapse

    Joined:
    Dec 26, 2014
    Messages:
    1,902
    You are ingenious! No more tuning the dumb steering center like that with rack and pinion.

    #6 Rainvest, Jun 8, 2017
  7. AllTerrainOutlaw

    AllTerrainOutlaw
    Expand Collapse

    Joined:
    Feb 7, 2015
    Messages:
    375
    so i tuned the truck so that i do not notice a pull. im assuming that the initial start off steering pull is torque steer?

    #7 AllTerrainOutlaw, Jun 9, 2017
  8. AllTerrainOutlaw

    AllTerrainOutlaw
    Expand Collapse

    Joined:
    Feb 7, 2015
    Messages:
    375
    @Goosah so is it normal for the drag link to snap when i floor it then brake. 4wd is engaged.

    #8 AllTerrainOutlaw, Jun 12, 2017
  9. Car8john

    Car8john
    Expand Collapse

    Joined:
    May 12, 2016
    Messages:
    6,292
    It is?
    Huh
    Odd

    #9 Car8john, Jun 12, 2017
  10. Goosah

    Goosah
    Expand Collapse
    Global Moderator
    BeamNG Team

    Joined:
    Aug 30, 2013
    Messages:
    790
    No oem pickup truck would ever have such an arrangement, because when the axle flexes, it will try to turn the rack around the pinion gear, causing bump steer. It would probably have even worse behavior!

    I could cheat and put the steering hydro on the axle itself, but I'm not going to. It's not realistic. I'd rather the game simulate every vehicle's strengths and weaknesses. In the end, it's more interesting and educational. No other vehicle sim on the market, to my knowledge, approaches the level of detail needed to show these weaknesses in real vehicles, we do and we're proud of it.

    #10 Goosah, Jun 12, 2017
    • Like Like x 5
    • Agree Agree x 3
  11. firestarspelt

    firestarspelt
    Expand Collapse

    Joined:
    Aug 4, 2013
    Messages:
    100
    well there is aftermarket hydraulic steering

    #11 firestarspelt, Jun 12, 2017
