Texture and Jbeam problems

hey, I am creating a car right now, so yesterday I put some material (green) on it and I have some problems... First of all i have no reflections on the material and I cant change the color in selector , I created the material with blender, so added a material and added in material.cs file a line like there for every single part of the car :

singleton Material(z8)
{
mapTo = "z8";
diffuseColor[0] = "0 1 0 1";
specular[0] = "0.5 0.5 0.5 1";
specularPower[0] = "50";
doubleSided = "1";
translucentBlendOp = "None";
};

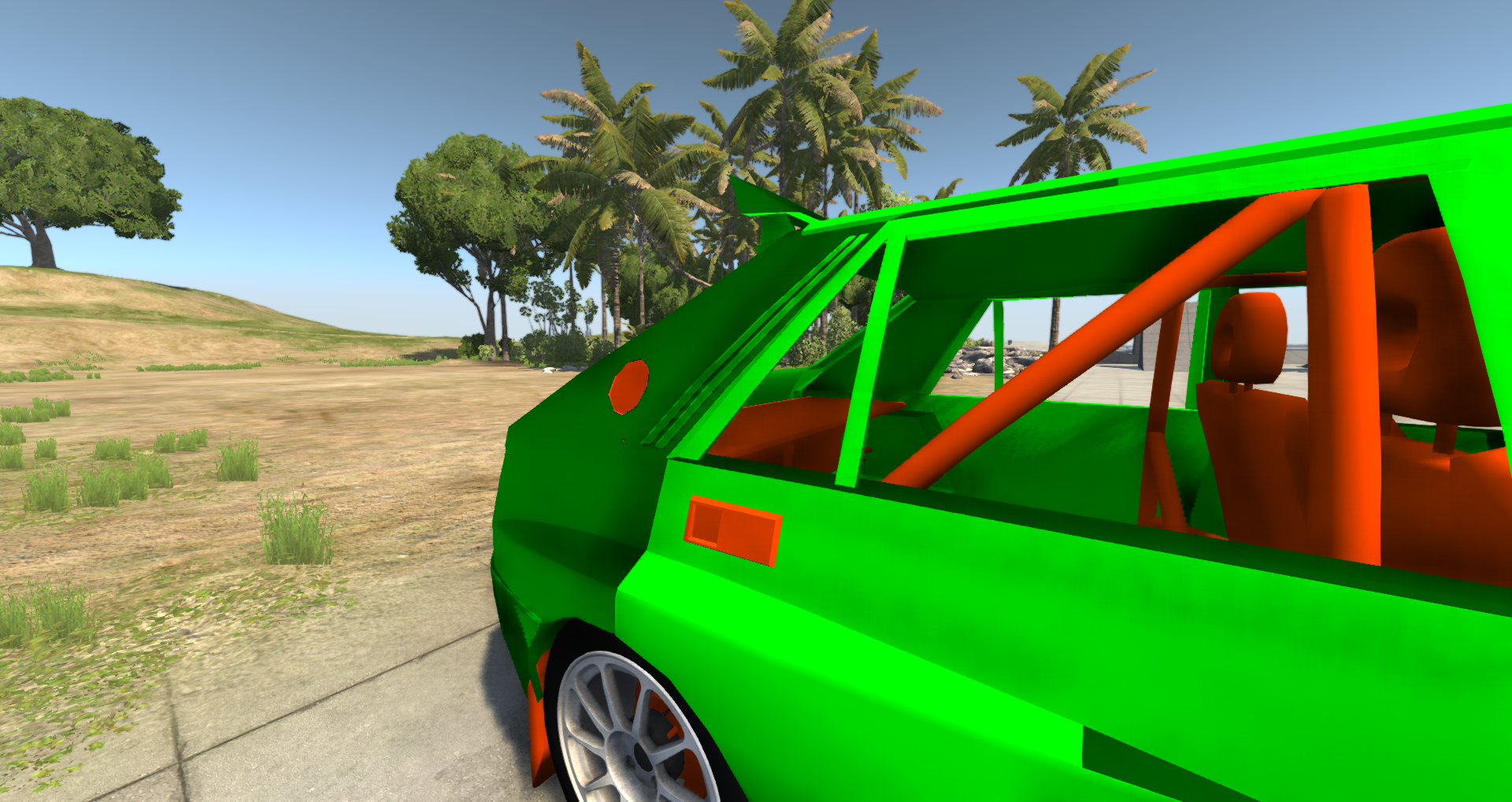

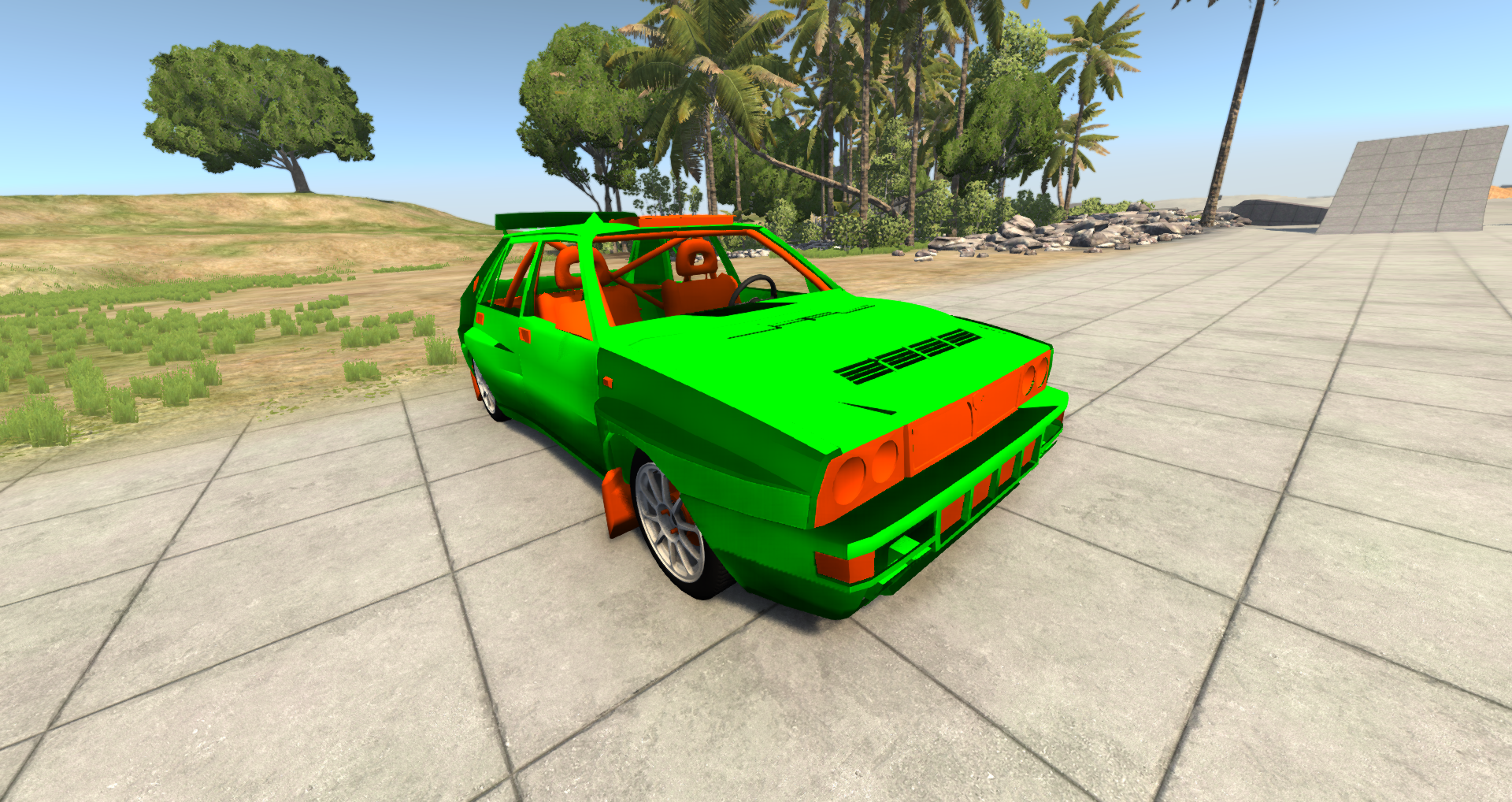

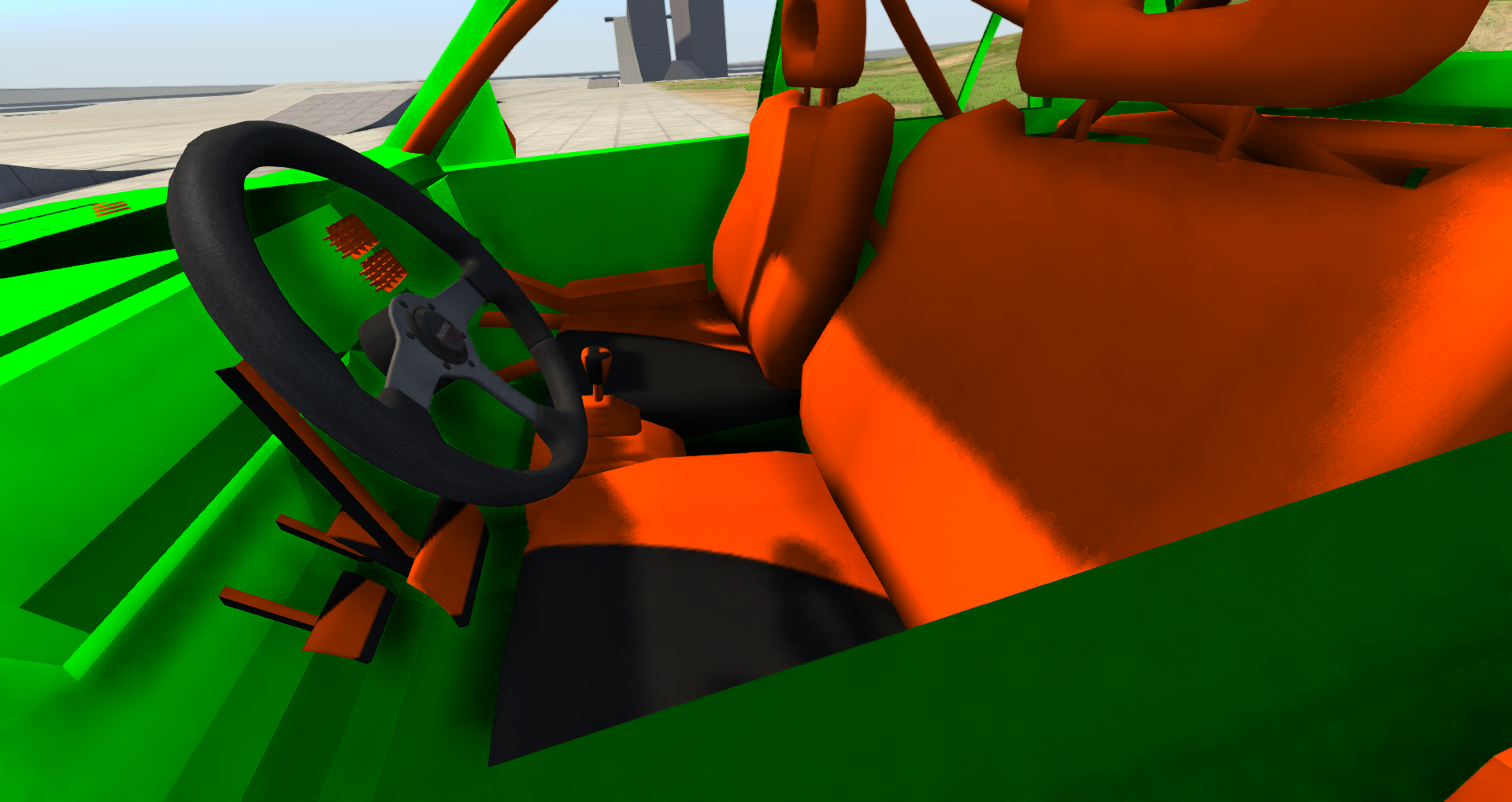

so I just had the green on the car but it got some dark green pieces which should not be there I think, so how I can get them away ?



also after I added all the lines in material.cs my parts from the covet which before had texture from the covet now got no texture ... (its still in the material.cs file)

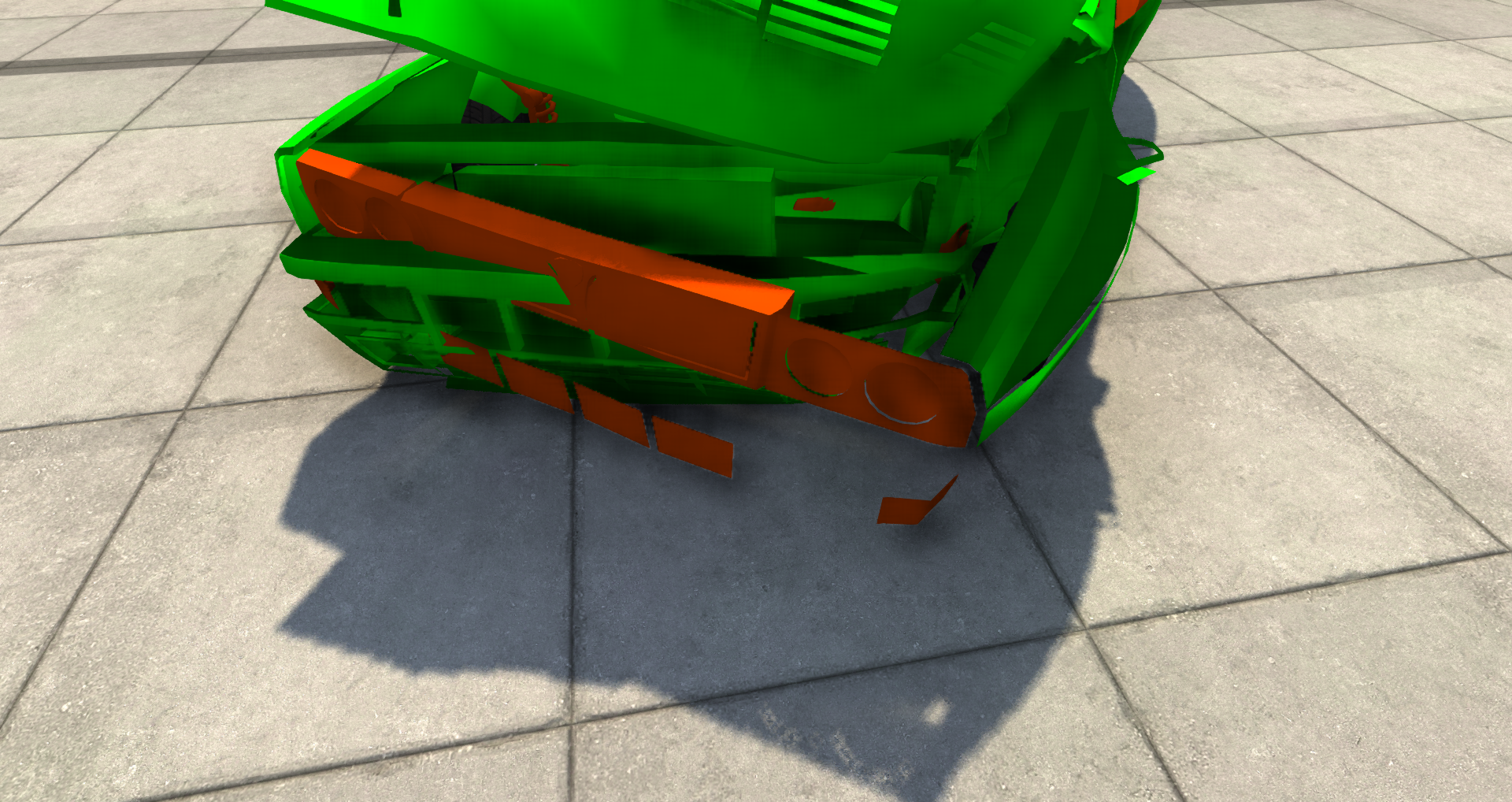

now for the problem with the jbeam, I used for now the hatch jbeam so may this bug happens because of that but some parts of the car wont deform if I crash into sth. or stratching stangly out , so does also know sb. how to fix this ?



so I hope someone can help me !

Thanks Schumacher



The dark green bits might possibly come from backfaces since the material is doublesided, but it might be something else as I don't know how doublesided materials look like in BNG.

For reflection and colour selector stuff you need image files, I hope my following explinations are correct as I'm myself very unexperienced with materials:
diffuse texture: The actual texture, depending on how transparent it is it will be more or less reflective.
specular texture: Depending how black/white (or grey tones between) there'll be differences in how the light affects the material.
normal map: normal map for normal mapping
_c texture: I don't know its name, but it defines how much colour from the colour selector something gets. Transparency here means it'll get colour (more transparency, more colour).



O.k thanks for the explanations, Ill Take a look if the Materials are Double sided and May I can also get it with pictures and stuff like that Im also very New to car creation



the dark green thing happened with my daytona, its because the textures arent set up properly. also, just to test things out. Take an empty image, not white, just empty. and use that instead of the green.
also use the materials codes from one of the official vehicles and just keep [0], usually the official cars has difuse color [0] and [1] [2] depends, but just keep the [0]
And then just replace everything with your empty image. Everything should be able to work with changeable colors.
Im not that good with textures tho, so i cant go in details that much.


Now, for the jbeam part.
the front where it does not deform, it is 1 mesh? does it have its own name? where did you put it in the jbeam?
It should be in the flexbody of the front fascia. like this.

["Your mesh", ["hatch_fascia"]],

But it depends if those parts of the car are separate, or attached with other parts.

Hope this helped a bit.



The materials are doublesided:
doubleSided = "1";
Setting it to "0" will make them single sided.

What I meant though was that the mesh might have backfaces which you'd have to flip in Blender, but reading crashmasters post I think it has nothing to do with it



Actually, if you have to flip them in blender, that means that they are inverted, which should make the invisible from one side in beamng, that is not the problem tho.
The weird shadow thing happened to me as well, im not 100% sure why it happened, and the way i understood it was that i didnt make the textures right. maybe because you are using the same materials as the specular maps.
All that double sided means is that, even if you have inverted faces, it will appear on the other side.

Also, i have to say that, i am no expert at this, im just saying what could be the issue, dont quote me on anything, because i am bad at textures and materials things.
But it might still be worth checking out.
If you want to you could just post the vehicle here and we could all look at whats the issue.



Oh, so he didn't even want it to be green? I thought green was the colour he aimed for, but that dark green made problems (re-reading your first post and it all makes sence...). I thought the weird dark colours came from backfaces.



Oh thanks for telling me but I didnt used textures I think , I just applied Materials over blender to the car .. .maybe I can pm you the car so that you May can take a look at it ? I am really Bad understanding things like that :/



ein Golf also :d Okay, freu mich drauf!



Ajajajajaj ne, das ist ein Lancia Delta (Ajajajajaj no, that's a Lancia Delta )
___

I think you need textures for your materials, otherwise it won't work.



Poorly I cant do this my own -.-



Okay



First, does the model probably already have textures which just aren't applied yet? Like, were there any texture files in the download (.tga, .dds, .png, .jpg, .bmp should be the common ones).



Nope Poorly not I dl d it From 3dwarehouse it was a sketchup model... but I asked someone and he said that He can tell me how to put texture on Single parts so that they are change the color



Then I guess you'd either have to create textures yourself (read/view some Blender tutorials for this) or only create the image for each texture, which will look worse as then there's only be exactly one colour per texture.
For images, just open a pic editor, create a new image, colour it one colour you want, save it, done.



The green is probably what he aimed for, the darker part is where the issue is. when the faces are inverted it just makes them invisible from that side.

I never really played around with the materials from blender, i use textures, i also never made a model from scratch, but since i know nothing about materials in blender, i prefer using textures.
If you want to you can send it to me, ill have a look and ill fix the jbeam thing in a min or so, ill take a closer look at the textures thing too.
