Unsolved NEED HELP FROM EXPERIENCED MODDER: Tuning my suspension for the Maluch Remastered mod

Discussion in 'Mod Support' started by Agent_Y, May 28, 2021.

  1. Xupaun

    Xupaun
    Expand Collapse

    Joined:
    Aug 18, 2020
    Messages:
    522

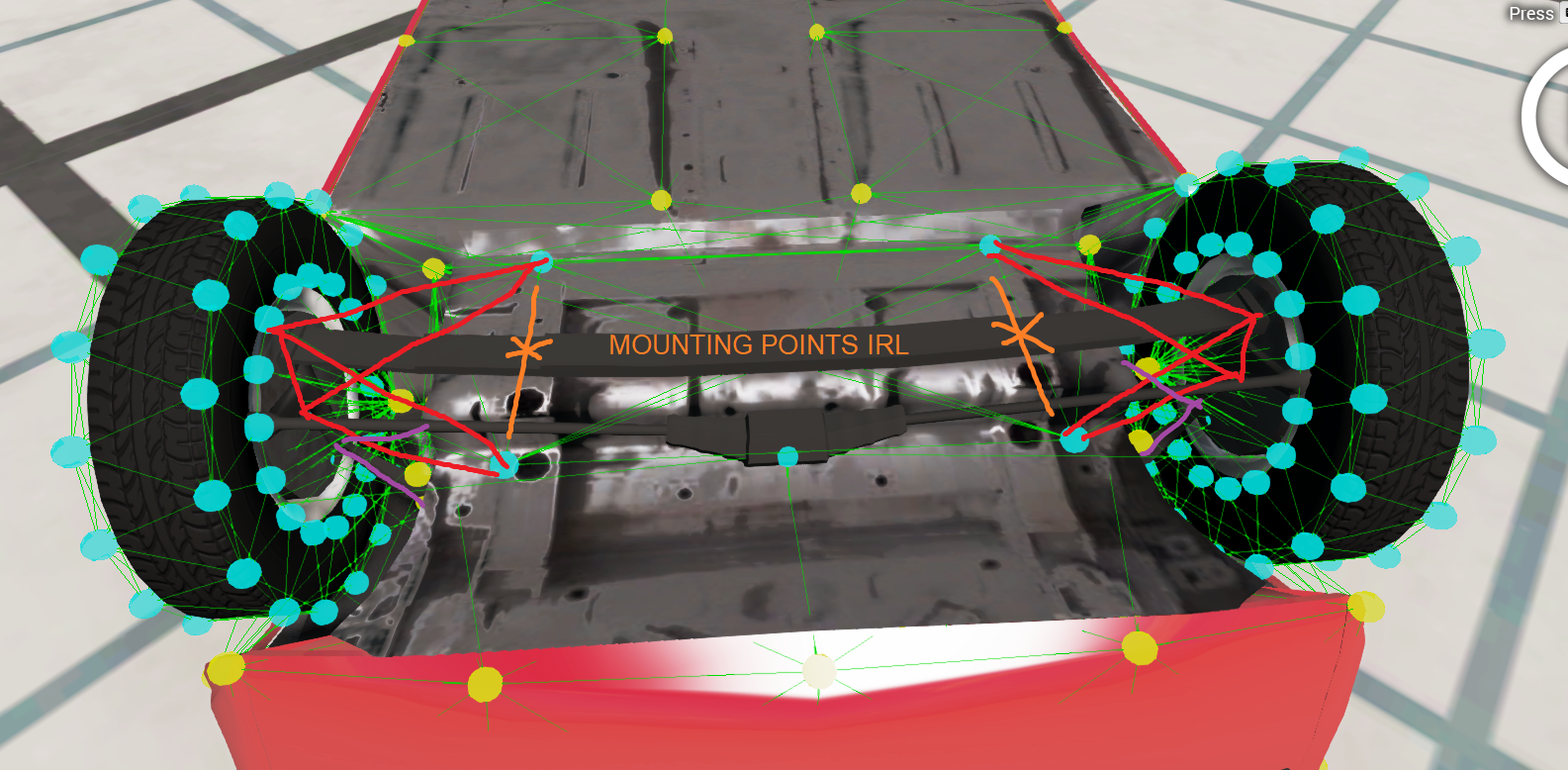

    Well, looking at this picture, the side mounting point basically ceates a "folding" point for the leaf springs.

    Also, if it isn't exacly the same behavior from a Double wishbone, it is REALLY close.

  2. Agent_Y

    Agent_Y
    Expand Collapse

    Joined:
    Jul 10, 2020
    Messages:
    6,495
    I didn't realise the points were THIS close to the wheels... That explains a lot, I know now how it doesn't wobble back and forth. In this case, it really is close to a double wishbone, except the lower arm is less rigid and acts as the spring itself... Interesting

    • Agree Agree x 1
  3. EozCompanyCZ

    EozCompanyCZ
    Expand Collapse

    Joined:
    Dec 11, 2016
    Messages:
    194
    The spring also acts as a natural anti roll bar.

    It acts a bit differently, but I don’t know how hard it would be to model these differences. For instance, during hard cornering the leaf spring flexis and allows the wheel to change camber drastically, it can be seen on this late 30s Škoda Popular. It also flexes front and back and has to be a quite stiff to provide appropriate road holding.



    Attached Files:

    • 194392928_1197492874022742_8167273536551532405_n.jpg
  4. Agent_Y

    Agent_Y
    Expand Collapse

    Joined:
    Jul 10, 2020
    Messages:
    6,495
    So the front and back flexing is normal? Because LucasBE ultimately had no idea how to fix it, it can stay then?

  5. Xupaun

    Xupaun
    Expand Collapse

    Joined:
    Aug 18, 2020
    Messages:
    522
    As someone that works with suspension desing, that image made me feel really unconfortable.

  6. EozCompanyCZ

    EozCompanyCZ
    Expand Collapse

    Joined:
    Dec 11, 2016
    Messages:
    194
    The front and back flex is normal, it shouldn’t be severe, but some flex is standard feature of this type of suspension and in can be seen on all car that used this style of suspension.

    • Like Like x 1
  7. Xupaun

    Xupaun
    Expand Collapse

    Joined:
    Aug 18, 2020
    Messages:
    522
    It could, but it's another variable that you have no control over. adding a invisible lower arm not so rigid, maybe will help you to control and understand those movements

  8. Agent_Y

    Agent_Y
    Expand Collapse

    Joined:
    Jul 10, 2020
    Messages:
    6,495
    That's exactly what I had in mind, I'll try it tomorrow

    • Like Like x 1
  9. EozCompanyCZ

    EozCompanyCZ
    Expand Collapse

    Joined:
    Dec 11, 2016
    Messages:
    194
    It looks really horrible but then this is a 30s style central European suspension (used by many Manufacturers: Škoda, Tatra, Mercedes, DKW, Adler, BMW, Horch and many more) also the Maluch’s suspension doesn’t change camber even nearly as much because the Škoda allows almost a complete half of the spring to flex whilst the Maluch only a small part.

    Here you can see how most of the Central European manufactures did it, with the spring attached only in the middle allowing massive flex but also minimalizing the chance of the spring braking whilst driving on bad roads (for which Central Europe was famous at that time, probably also reason why so many cars made here during that time had our wheel independent suspension.

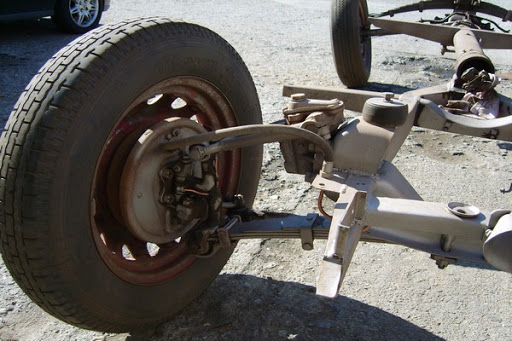

    Attached Files:

    • unnamed1.jpg
    • image003.jpg
    • Like Like x 1
  10. Agent_Y

    Agent_Y
    Expand Collapse

    Joined:
    Jul 10, 2020
    Messages:
    6,495
    So the suspension I made is 30s style... That's so outdated lol I need to make a "flexible double wishbone" instead
    I might leave this one in the mod too and call it the 30s style leaf spring lol

  11. Xupaun

    Xupaun
    Expand Collapse

    Joined:
    Aug 18, 2020
    Messages:
    522
    Well, here in Brazil, we did't have those cars, so the "worst" suspension design that we had here was in the VW Beetle suspension. Compared to those, the Beetle has a really well designed suspension (geometry wise).
    --- Post updated ---
    Actually, you can get that type of suspension flex in any car, you only need to have worn out bushes, or too soft ones on the lower arms mounting points.

    • Like Like x 1
  12. EozCompanyCZ

    EozCompanyCZ
    Expand Collapse

    Joined:
    Dec 11, 2016
    Messages:
    194
    The Beetle's suspension was actually designed with that in mind. Ferdinand Porsche (a quiz questing; which country did Porsche come from, without looking it up.) was worried that if he'd put such a suspension into a rear engined car it would either have to be too stiff or it would have too mux flex. There was also the solution used by the bigger Škoda Superb which literary was a double wishbone that used a leaf spring only as a spring but that was only on bigger cars.

    Here on the Škoda Superb

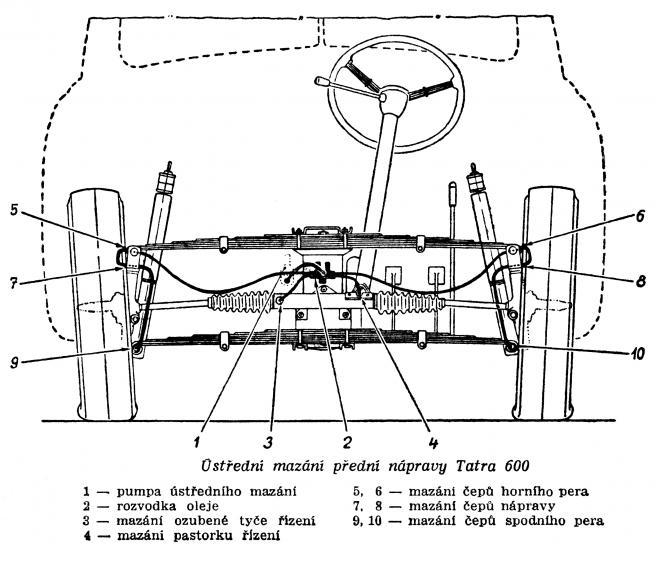

    Other manufactures like Tatra or Mercedes-Benz just didn't care and put double leaf spring parallelograms on their rear engine cars.

    Tatra (600 Tatraplan in this case)

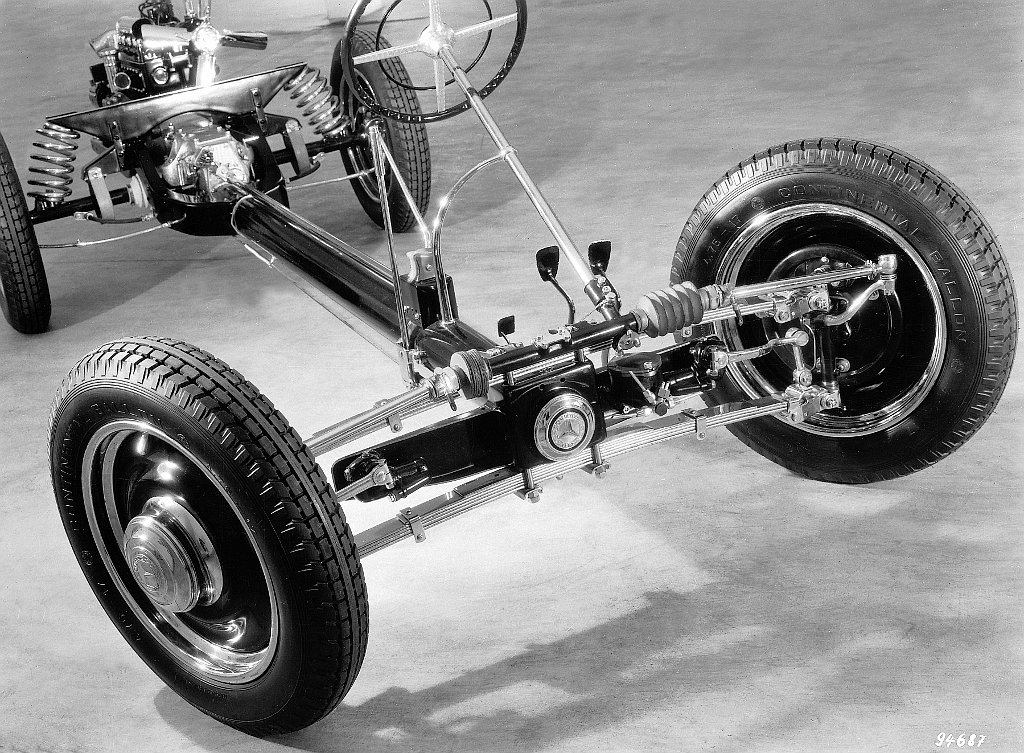

    Mercedes-Benz 130


    Attached Files:

    • SuperbSuspension.png
    • D4H0C3.jpg
    • Tatraplan_predni_naprava.png
    • MB_130h-chassis.jpeg
    • Like Like x 1
  13. Agent_Y

    Agent_Y
    Expand Collapse

    Joined:
    Jul 10, 2020
    Messages:
    6,495
    Then I'll call it beater leaf spring, maybe I can make a beater config

    • Like Like x 2
  14. EozCompanyCZ

    EozCompanyCZ
    Expand Collapse

    Joined:
    Dec 11, 2016
    Messages:
    194
    That would be interessting!

  15. Agent_Y

    Agent_Y
    Expand Collapse

    Joined:
    Jul 10, 2020
    Messages:
    6,495
    So this is my new suspension design that solves the problem of the leaf spring wobbling back and forth:
    Orange are stiff and mounted to the body, red are a bit flexible. Maybe LucasBE will be able to tune this one easier.

    • Like Like x 1
  16. Xupaun

    Xupaun
    Expand Collapse

    Joined:
    Aug 18, 2020
    Messages:
    522
    Actually, you can have that type of suspension flex it you have worn out bushes, or too soft ones on the lower arms mounting points
    Well, I'd suggest you to add those "lower arms" to the spring part, so, a soft spring would get a pair of "soft" lower arms, and the race spring would get a pair of "non deformable" lower ams (as rigid as the upper arms).

    #36 Xupaun, Jun 3, 2021
    Last edited: Jun 3, 2021
  17. Agent_Y

    Agent_Y
    Expand Collapse

    Joined:
    Jul 10, 2020
    Messages:
    6,495
    The red ones are basically lower arms but much wider, less stiff and connected to 2 parts. So stiffening them in theory should work as stiffening both the "springs" and the "arms" which would improve handling at high speed but ruin the drivability on less smooth roads, so mostly like race suspension.

    • Like Like x 1
  18. Agent_Y

    Agent_Y
    Expand Collapse

    Joined:
    Jul 10, 2020
    Messages:
    6,495
    Still need help, it possibly requires redoing the whole suspension from scratch including the model. Can't do this myself, this is way too complex.
