>>Logitech Wheel FFB Tutorial for Response Correction Curve with WheelCheck<<

Discussion in 'General Discussion' started by Jopa56, Oct 2, 2021.

  1. Jopa56

    Jopa56
    Expand Collapse

    Joined:
    Aug 12, 2020
    Messages:
    33

    So you have or just bought Logitech wheel (G29, G920) and you want the best FFB settings for driving or drifting?


    You come to the right place.


    First do you know anything about Response Correction Curve? The last thing in FFB settings in the game.



    ""Force feedback works by asking the steering wheel drivers to apply certain torque (certain rotational force) through the motors housed inside your steering wheel.

    In an ideal world, the resulting torques would be proportional to the torques you initially requested.

    However, in practice, this is rarely the case. Sometimes, when you ask 1 unit of torque, you may get 1.2 resulting units of torque. And then you ask for 2 units, but get only 1.9 units back. The result can vary wildly along the range of torques, and is impossible to know without testing each of all the possible torque values.""


    (You can find this doc on Beamng.drive Wiki here (Scrool down to "Response correction curves")
    : https://documentation.beamng.com/support/hardware/steering_wheel_setup/ )


    Here is what you need to do:

    (look at "Attached Files" for download)

    1. Mount and Plug the wheel. It must me good mounted.
    2. Run WheelCheck.exe
    3. Set up Max Count and Step Time to 500.
    4. At "Spring Force" drop select "Step Log 2 (linear force test)"
    5. DON'T touch the wheel!! You started the test and it needs time to actully start. After like minut it will start moving.
    6. When it stop moving that means it is finish.
    7. Now open LUTGenerator.exe and find your "log2.csv" in My Document.
    8. Name it "wheel.lut" and save it in "C:\Users\"UserName"\AppData\Local\BeamNG.drive\"latest version"\settings\inputmaps\wheel.lut"
    9. Now open game, go to FFB settings and check "Use Response correction curves" and you load your file with CTRL+L. Press Apply and reopen the FFB settings and you will see your curve.
    10. Test drive it!



    Also very imported put Linearity on throttle for more realistic throttle response. Put it like 1.3 or more.




    And for more precise clutch engagement :





    And for my G29 I setup my FFB Strenght to 490, Smoothing to 160 and Side Accel Feedback to 10%.
    But you can tune however you want.






    I hope this will help some of you guys with logitech wheel that have strugle to drift in game.


    Attached Files:

    #1 Jopa56, Oct 2, 2021
    Last edited: Oct 18, 2021
    • Like Like x 9
  2. Brother_Dave

    Brother_Dave
    Expand Collapse

    Joined:
    Aug 16, 2012
    Messages:
    1,562
    Agree 100% on using a non-linear throttle (and brake and clutch), using 1.5 - 2 for a few years and it makea a massive difference. Good thing instructing ppl on the correction curve too.

    • Agree Agree x 2
    • Like Like x 1
  3. Jiming

    Jiming
    Expand Collapse

    Joined:
    Mar 24, 2019
    Messages:
    2
    hi, I tried the steps above and my curve appears to be a little off from yours.

    I also have the g29 but my curve is like this:
    https://prnt.sc/1ukhfms

    Could you please share your wheel.csv with us?


    Attached Files:

    • upload_2021-10-2_22-10-23.png
  4. Jopa56

    Jopa56
    Expand Collapse

    Joined:
    Aug 12, 2020
    Messages:
    33
    May I ask why are using deadzone?

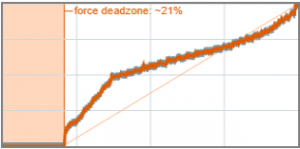

    The first picture is from beamng wiki.

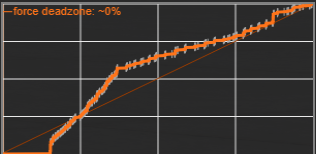

    Here is my curve and it work perfectly for me:




    And this must be on Default

    Logitech Gaming Software 9.02.65

  5. Jiming

    Jiming
    Expand Collapse

    Joined:
    Mar 24, 2019
    Messages:
    2
    Thank you so much for your reply

    I've followed the steps above and BeamNG automatically configured the dead zone after I placed the wheel.csv inside the settings file
    Is there any way to fix this?

    Thank you

  6. sinsforeal

    sinsforeal
    Expand Collapse

    Joined:
    Aug 31, 2021
    Messages:
    6
    Wow thanks man great write up really helped me out cheers!

    • Like Like x 1
  7. Jopa56

    Jopa56
    Expand Collapse

    Joined:
    Aug 12, 2020
    Messages:
    33
    Okey I been looking why is a deadzone for you guys and not for me. It's because I am using .lut file.
    I updated the tutorial with LUT Generator so download once again WheelCheck.zip and there will be LUT generator. Read the steps once more.

    • Like Like x 1
  8. P_enta

    P_enta
    Expand Collapse

    Joined:
    Jan 11, 2020
    Messages:
    3,024
    I know this is a bump, but how do I fix the brake pedal? Ive removed the stupid rubber garbage from the pedal so I can push it down more than 20% of the way, but after pushing it 50% down it jumps to 100% braking force. Custom pedal curves are seriously needed.

  9. Brother_Dave

    Brother_Dave
    Expand Collapse

    Joined:
    Aug 16, 2012
    Messages:
    1,562
    P_enta, ive adjusted my deadzone in the end of the curve, shortened the pickup area so to speak. Its in the settings for the brake.

    ANOTHER THING ID LIKE SOMEONE ELSE TO TRY:

    Increase the g-force (the g-forces that impact the driver) which is capped at a max of 20% in the FFB settings. Ive increased that manually and since update 0.24 im actually running 200% (100% might be enough for thers, its a matter if taste i guess).
    This, for me, tightens up the behaviour of the ffb and also tightens up the steering around 0° rotation. Before i did this i always thought the wheel was kinda loose and dead around center, agreeing with Ermin Hamidovic about that in his 0.24 YT-vid.

    My settings on my G920 is now:

    Strength 700
    Smoothing 20
    G-forces 200%

    Now, this might cause other issues that im not aware of but it makes driving with a wheel much more predictable, improves my track times and drifting 'skill'.

    The way to increse it is to open the input file in the users BeamNG folder (in subfolder Settings, subfolder Inputmaps... i think... and then the file with a weird name). Youll find 'g-force' somewhere in the beginning, at a value of 0 - 0.20 (0.20 being 20%) so ive set that to 2.

    IF you dont like this then you can just click the value ingame and itll reset.

    Would someone be able to test this and see if they feel the same? :rolleyes:

  10. P_enta

    P_enta
    Expand Collapse

    Joined:
    Jan 11, 2020
    Messages:
    3,024
    The actual solution to my problem is this cable that fixes the signal from the brake so that the last 25% of the pedal isn't so grabby. https://www.ricmotech.com/bodnar-cable-logitech-pedals

    Im also going to get a load cell mod for the brake so its not so garbage.

    Thanks for the other tips, ill try them out now and see how they are
    --- Post updated ---
    your new method feels great but the wheel is so god damn loud @Brother_Dave

    • Like Like x 1
  11. Brother_Dave

    Brother_Dave
    Expand Collapse

    Joined:
    Aug 16, 2012
    Messages:
    1,562
    Glad and not glad to hear i guess lol
    I can say that im using a G920 with these settings atm:
    Strength 610
    Smoothing 20
    Side accel forces 200

    About the loud part i cant say much :D

  12. den_chik

    den_chik
    Expand Collapse

    Joined:
    Dec 12, 2019
    Messages:
    829

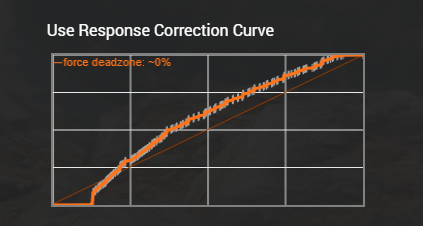

    Hey, thank you so much for so detailed explanation. I have used the somebody's lut profile before but now I build my own. Respect to you. My profile for G25


    Attached Files:

    • 2021-12-09at01-22-25.png
    • Like Like x 1
  13. Brother_Dave

    Brother_Dave
    Expand Collapse

    Joined:
    Aug 16, 2012
    Messages:
    1,562
    @P_enta what did you mean that the wheel is loud? Do you mean in decibel or in strength?:rolleyes:

  14. P_enta

    P_enta
    Expand Collapse

    Joined:
    Jan 11, 2020
    Messages:
    3,024
    Im probably going to open it up and put some sound deadening in there, it feels 100 times better to drive though.
    I mean its loud as in hearing. It makes a ton of noise and racket I can hear it through my headphones with music blasting

    • Like Like x 1
  15. Sithhy™

    Sithhy™
    Expand Collapse

    Joined:
    Apr 5, 2017
    Messages:
    3,279
    Welcome to the world of very easily overwhelming the G29s' 2Nm torque

  16. NicOz

    NicOz
    Expand Collapse

    Joined:
    Oct 14, 2019
    Messages:
    91
    I think something messed up my response curve, and in the Steering Wheel Setup it says it's usually the same curve for given brand and model of the steering wheel.

    Can I have yours?

  17. Jopa56

    Jopa56
    Expand Collapse

    Joined:
    Aug 12, 2020
    Messages:
    33
    here:


    Attached Files:

    • Like Like x 1
  18. Ace2on

    Ace2on
    Expand Collapse

    Joined:
    Jan 20, 2022
    Messages:
    2
    Every time I do it, I can’t save the doc to any other file, it’s name is log2 but it’s not named log.csv

  19. Jopa56

    Jopa56
    Expand Collapse

    Joined:
    Aug 12, 2020
    Messages:
    33
    Start as Admin. Maybe is that.

  20. den_chik

    den_chik
    Expand Collapse

    Joined:
    Dec 12, 2019
    Messages:
    829
    What's wrong with log2 name? It's just right how OP described.
