hello again I am having some issues updating the suspension in the bronco to current standards. my issue is with global wheels where they aren't attaching to the axles and some potential alignment issues thanks (I decided to reuse this thread instead of starting a new one like I have in the past) old post hello again I am having some issues with modding the D series camper into a removable top, so far I have just replaced pickup with bronco but for the life of me can't figure out what the error is. I could also use some help on how to attach it to my truck
First of all missing closing curly bracket in line 7 of you bronco_top.jbeam. Code: { "bronco_top": { "information":{ "authors":"MB201,jbatic,BeamNG", "name":"Removeable Top", "value":300, }, Whenever a vehicle does not appear at all it's most-probably a parsing error in one of jbeam files.

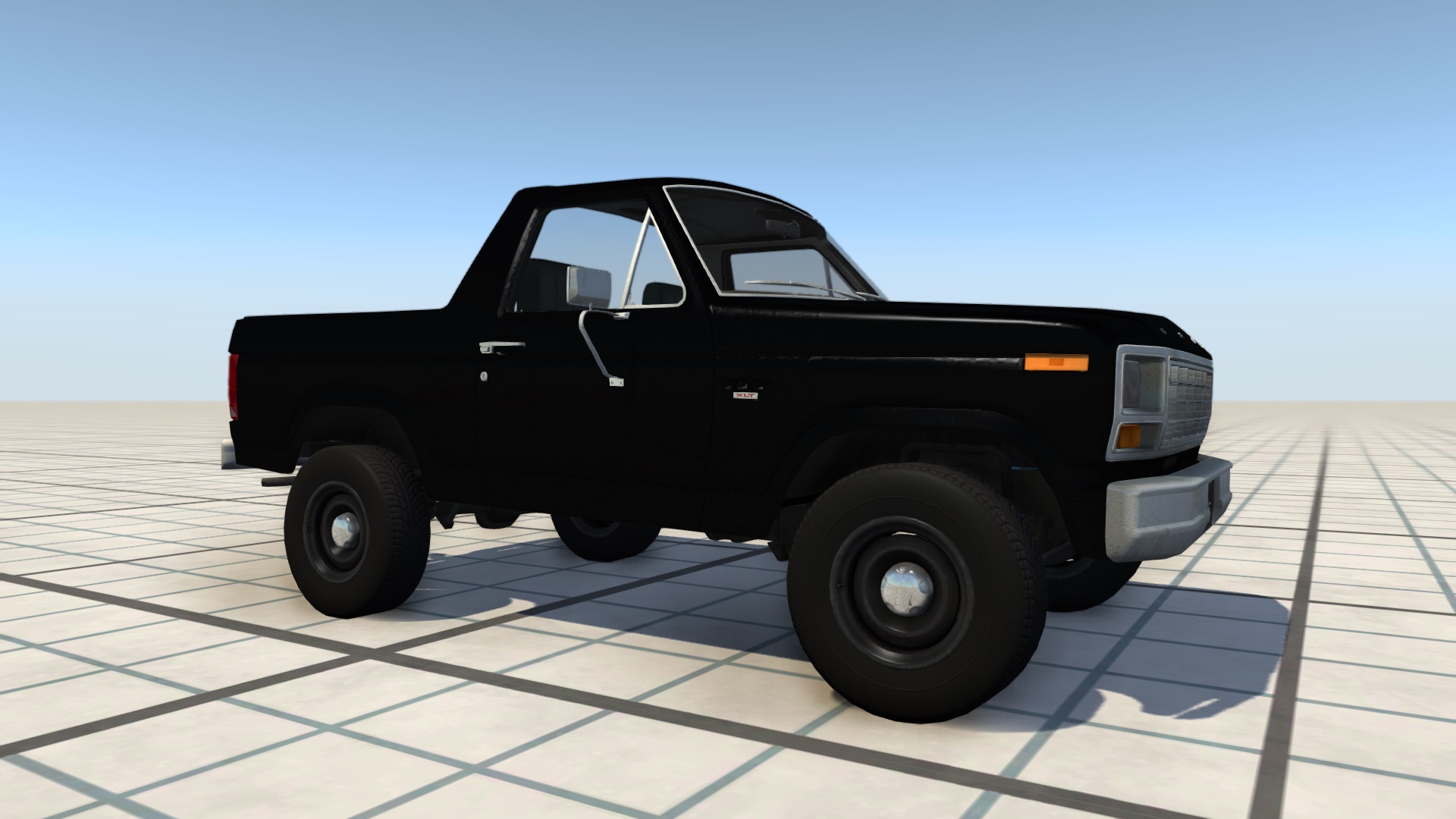

A physical connection between wheel and hub is missing. This: Code: {"breakGroup":"wheel_FR"}, ["hu2r","a5r"], ["hu2r","a4r"], ["hu3r","a5r"], ["hu3r","a4r"], {"breakGroup":"wheel_FL"}, ["hu2l","a5l"], ["hu2l","a4l"], ["hu3l","a5l"], ["hu3l","a4l"], [...] Should be: Code: ["hu5r","fw1rr",], ["hu5r","fw1r"], ["hu1r","fw1r"], ["fw1r","a5r"], ["fw1r","a4r"], ["fw1rr","a5r"], ["fw1rr","a4r"], ["fw1rr","hu1r"], ["hu4r","fw1r"], ["hu4r","fw1rr"], {"breakGroup":"wheel_FL"}, ["hu5l","fw1ll",], ["hu5l","fw1l"], ["hu1l","fw1l"], ["fw1l","a5l"], ["fw1l","a4l"], ["fw1ll","a5l"], ["fw1ll","a4l"], ["fw1ll","hu1l"], ["hu4l","fw1l"], ["hu4l","fw1ll"], [...] Same at the rear, where the nodeOffset for the hub should also be modified as follows: Code: ["bronco_hub_R","bronco_hub_R_6","Rear Wheel Hubs", {"nodeOffset":{"x":"$trackwidth_R", "y":1.087, "z":0.4101}}], EDIT - Picture and files added
Some nodes positioning might need a little bit of adjustment. The rear brakes are still misaligned and both tracks are a tad too wide.
