How to use dem heightmap thingys (look at picture)

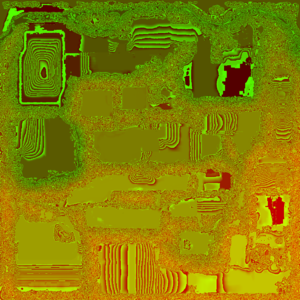

Here's a picture of the one I want to use or convert to a gray scale



it's from fs 2013 btw


So can I import that to t3d if so how ? if not how can I convert it to traditional heightmap or can someone do that for me ?

thanks for your time

rokzy



whoa what's that?
1st of all - heightmaps are black and white.
2nd - i've never seen anything like that, it looks like a strange fractal



that's what I mean hot do I convert this to a black and white heightmap. I've got it in l3dt but how do I export it as a black and white heightmap ?



You could open the image with photoshop or paint.net and use the black and white filter than save it and see if it works.



use gray-scale, it would be more accurate than "black and white"



why not.



thank you now to make the map :|

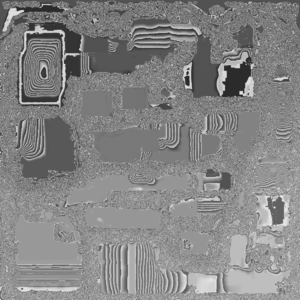

That image just converted to greyscale would result in a spiky mess of a terrain.. I think you'll have to import / export it with different settings, if possible. I don't know what programs you used or what format it is, so it's hard to say more. Maybe post the original image here.



the one at the top is the original image. I can get the terrain as a 3d model but it results in a like 700mb .obj file (.obj is the only file I can export bar .i3d) and when I try to load it in blender crash, sketchup crash even 3d object converter crashes.



I had a look at the image in Photoshop. Strange heightmap format. Looks like you could use could get just the red channel and use it as the heightmap, but it would have large steps because it's 8 bit depth. Possibly it could be converted to 16 bits by combining the channels with the green channel at very low strength. I tried it, see if this works:



the map is going to be called Rockenstedt because it's based on fs 2013's Haggenstedt


Thank you Miura for the heightmap works perfect !






(imported from here).


Miura do you want your name incorporated into the name of the map ? for slightly more credit than : Miura for the heightmap



No need to credit me, it only took a few minutes to convert the image..



Miura any suggestions to find the middle of the map ?



divide the length of the height map by 2.

if its a 2048x2048 map then place the terrain at 1024x1024 and it should be in the center of the world.



explain in noob terms please (lol) I just need to know so I put the main farm bit in the right place


Image of the map from fs 2013



So most importantly farm must be in the right place second most importantly the fields need to be in the right place which will be hard to do.


Bonus image for everyones help



(imported from here)



How do I make the grey parts transparent ? Do I have to do it in blender ? if so how ? (explain in noob terms(I'm still a blender noob))


I know that was in dev screens but may as well ask it here.



sorry I thought you wanted to know how to set the terrain in the center of the world to minimize Z fighting.

If you have centered the terrain correctly then the center of the map will be at 0 x 0 x 0

if you havent centered your terrain then I guess that would be the first place to start.



Does it center it automatically ?



no it just dumps it where the camera was when you imported the height map.

So in the scene tree manually set the terrains position to -1024 x -1024 x 0

The zero is the height and can be set to something suitable.



how do you get the camera to 0 0 0 ?



You don't need to. To set the terrain in the center of the map edit the terrain position in the scene tree.



This it how I have it set up for a 2048 x 2048 height map.

Hope this helps

EDIT:

The terrains origin is in the corner of the terrain block so to get the center you have to divide the height maps length by 2.
Thats why a 2048 x 2048 height map needs to be placed at -1024 x -1024
