How to get vehicle roll, pitch, yaw?

Discussion in 'Troubleshooting: Bugs, Questions and Support' started by Meriel, Apr 14, 2021.

  1. Meriel

    Meriel
    Expand Collapse

    Joined:
    Apr 9, 2021
    Messages:
    4
    How do I get the vehicle roll, pitch and yaw? I can retrieve vehicle pos, dir, up, and front but currently have no way to convert it into a meaningful set of Euler angles.

  2. Geraldo_o_geral

    Geraldo_o_geral
    Expand Collapse

    Joined:
    Jan 30, 2021
    Messages:
    211
    go on ui and select what you want

    i think you are asking this

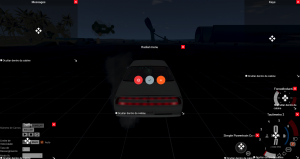

    press 'esc' and click here

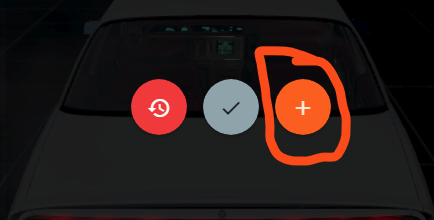

    click in '+'

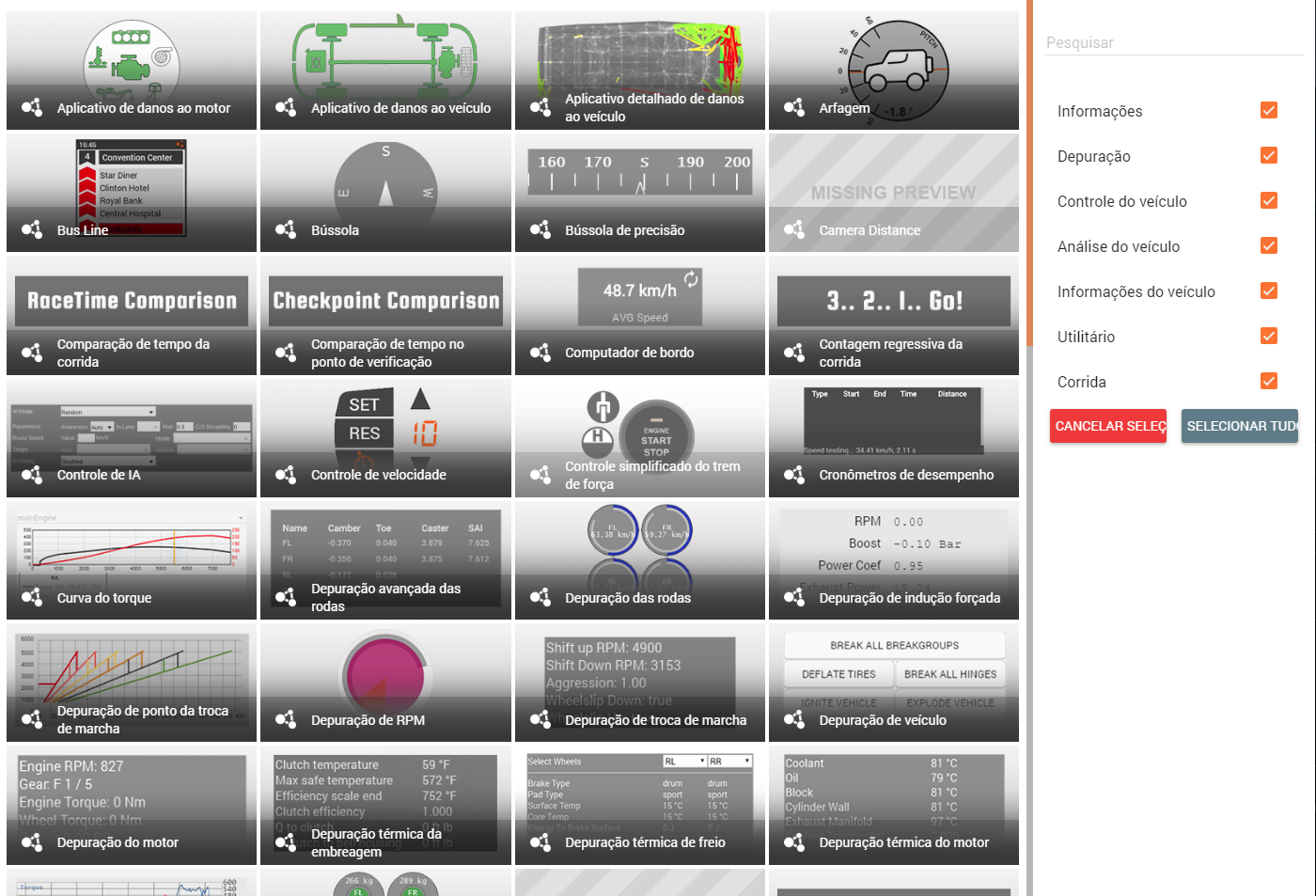

    select what you want
    put it where you want in the screen

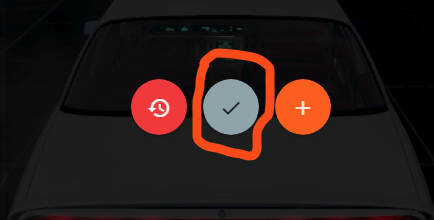

    and then press '✓'

    hope this helps

  3. angelo234

    angelo234
    Expand Collapse
    Programmer
    BeamNG Team

    Joined:
    Aug 11, 2017
    Messages:
    540
    Here you go (its in radians):
    Code:
    local roll, pitch, yaw = obj:getRollPitchYaw()

    • Like Like x 1
  4. Geraldo_o_geral

    Geraldo_o_geral
    Expand Collapse

    Joined:
    Jan 30, 2021
    Messages:
    211
    i thought he was asking about the ui, but that makes more sense:p

  5. Meriel

    Meriel
    Expand Collapse

    Joined:
    Apr 9, 2021
    Messages:
    4
    Thanks, these both help. I'll inspect the lua for the pitch and roll UI apps and hopefully find documentation of pos,dir,up,front that's better than what BeamNG and beamNGpy provide :)

    • Like Like x 2
  6. angelo234

    angelo234
    Expand Collapse
    Programmer
    BeamNG Team

    Joined:
    Aug 11, 2017
    Messages:
    540
    This is some code that might help that I just took from my mod (you can find how to use vec3 in "BeamNG.drive\lua\common\mathlib.lua" and "LuaVec3" is equal to "vec3"):
    Code:
    --Vector that points where the car is facing
    local car_dir = vec3(obj:getDirectionVector())

    --Vector that points 90 degrees "up" from car_dir vector in a plane that runs in the direction of car and vertically
    local car_dir_up = vec3(obj:getDirectionVectorUp())

    --Vector that is the cross product of car_dir and car_dir_up that points in lateral direction of the car
    local car_dir_right = vec3(obj:getDirectionVectorRight())

    --This one doesn't give you the center of the vehicle position
    local pos = vec3(obj:getPosition())

    --Offset by car_dir * 0.5 which seems to be a good aproximation of actual front position
    local front_pos = vec3(obj:getFrontPosition()) + car_dir * 0.5
    local center_pos = front_pos + -car_dir * obj:getInitialLength() * 0.5
    local rear_pos = front_pos + -car_dir * obj:getInitialLength()

    --usage example: print(car_dir.x)
