D-15 Transmission location and front transaxle issues

Howdy im having issues locating the transmission code for the Gavril D-15. ive looked in the engine file the suspension files and anything else i could think but i just cannot find the code for it. i made a new engine and i want to adjust the gear ratios but i cannot do this without the code. Also i made a locked diff for the rear but the front diff is called front transaxle dont know if thats relevant or not but i made a locked front one as well but im having issues getting it to work in game. the game either freezes and crashed or wont load till i open the vehicle selector and select a different car. This is my first post ever on BeamNG if i am not providing enough information please let me know, thanks in advance

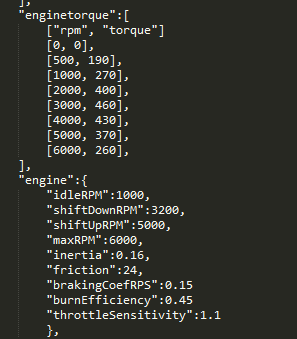

is this what you are looking for (engine)



No im looking for the gear ratios.



in the i6 engine jbeam you will find the transmission, as both the v8 and i6 use the same slot type it only needs 1 transmission between them.

Code:

"pickup_transmission_A": {

	"information":{


		"authors":"gabester",


		"name":"Gavril D-Series 4-Speed Automatic Transmission",


	}


	"engine":{


		"transmissionType":"automatic",


		"lowShiftDownRPM":1300,


		"lowShiftUpRPM":2400,


		"highShiftDownRPM":2200,


		"highShiftUpRPM":4800,


		// -1, 0 (neutral), 1, etc


		"gears":[-2.8, 0, 2.8, 1.53, 1.0, 0.72]


		"clutchDuration":0.35


		"viscousCoupling":8


		"lockingTorqueLimit":500


		"enableLocking":true


		},


    "slotType" : "pickup_transmission",


	"scalebeamSpring":0.84,


	"scalebeamDamp":1.3,


	"scalebeamDeform":1.5,


	"scalebeamStrength":1.78,


	"flexbodies": [


		 ["mesh", "[group]:", "nonFlexMaterials"],


		 ["pickup_transmission", ["pickup_engine","pickup_transmission"]],





	],


	"props": [


		["func"        , "mesh"                , "idRef:", "idX:", "idY:", "baseRotation"      , "rotation"                 , "translation"        , "min", "max", "offset", "multiplier"]


		//automatic transmission


		["gear_A"      , "pickup_needle_gear"  , "fr8", "fr8l", "fr11", {"x":10, "y":0, "z":0} , {"x":0, "y":0, "z":0}      , {"x":-0.13, "y":0, "z":0}, 0, 1, 0, 1],





		//shifter


		["gear_A"      , "pickup_shifter_A"    , "fr8", "fr8l", "fr11", {"x":25, "y":0, "z":0} , {"x":0, "y":0, "z":-25}    , {"x":0, "y":0, "z":0}, 0, 1, 0, 1],


	],


	"nodes": [


		 ["id", "posX", "posY", "posZ"],


		 {"selfCollision":false}


		 {"collision":true}


		 //--4 Speed Auto-


		 {"frictionCoef":0.7},


		 {"nodeMaterial":"|NM_METAL"},


		 {"nodeWeight":33.7},


		 {"group":"pickup_transmission"},


		 ["tra1", 0.0, -0.59, 0.48],


		 {"group":""},





	],





	"beams": [


		  ["id1:", "id2:"],


		  {"beamPrecompression":1, "beamType":"|NORMAL", "beamLongBound":1.0, "beamShortBound":1.0},


		  //--TRANSMISSION CONE--


		  {"beamSpring":15001000,"beamDamp":300},


		  {"beamDeform":95000,"beamStrength":"FLT_MAX"},


		  ["tra1","e1r"],


		  ["tra1","e3r"],


		  ["tra1","e1l"],


		  ["tra1","e3l"],


		  {"beamPrecompression":1, "beamType":"|NORMAL", "beamLongBound":1.0, "beamShortBound":1.0},


	],


	"triangles": [


			["id1:","id2:","id3:"],








	],


}

excuse the double newlines. GEdit throwing a wobbly.



oh damn i never thought to look there. Thank you i dont think i would have ever found it haha
