Unsolved Can't use 2 lightbars at the same time? (unsolve again, sorry)

Discussion in 'Mod Support' started by howard9068, May 11, 2017.

  1. howard9068

    howard9068
    Expand Collapse

    Joined:
    Mar 6, 2016
    Messages:
    135
    I am trying to make 2 lightbars on the van, it's ok when i use only one lightbar, but if i select the 2nd lightbar in the menu, the front (official) one start to explore and the game is totally lag. I though it was the nodes and beams are wrong but I have already edit it (little...), but I dont know how to solve it : /
    ( thats happen when the selfCollision turned off too )


    Attached Files:

  2. synsol

    synsol
    Expand Collapse
    QA Lead
    BeamNG Team

    Joined:
    Aug 4, 2013
    Messages:
    1,418
    @howard9068 , the issue is caused by the duplicated nodes names, i've renamed nodes (and beams) on your jbeam file and it work now :)
    Code:
    {
    "van_lightbar_dred": {
        "information":{
            "authors":"BeamNG",
            "name":"2nd Red Light Bar",
            "value":1000,
        }

        "slotType" : "van_mod",
        "controller": [
            ["fileName"],
            ["lightbar", {
                "defaultModeIndex": 1,
                "modes": [
                    ["name", "config"]
                    ["Chase", [
                        ["electric", "value", "duration"],
                            ["lightbar_r1", 0, 0.1],
                            ["lightbar_r2", 1, 0.1],
                            ["lightbar_r1", 1, 0.1],
                            ["lightbar_r2", 0, 0.1],
                        ],
                    ],
                ],
            }],
        ],
        "glowMap":{
                "old_lightbar_r1":                   {"simpleFunction":"lightbar_r1", "off":"old_lightbar_r1", "on":"old_lightbar_on"},
                "old_lightbar_r2":                   {"simpleFunction":"lightbar_r2", "off":"old_lightbar_r2", "on":"old_lightbar_on"},
            },
        "props": [
            ["func"      , "mesh"              , "idRef:", "idX:", "idY:"            , "baseRotation"        , "rotation"                 , "translation"        , "min", "max", "offset", "multiplier"]
            {
                "lightRange":0
                "lightColor":{"r":255, "g":0, "b":0, "a":255}
                "flareName":"vehicleHeadLightFlare"
                "flareScale":0.5
                "cookieName":"art/special/BNG_light_cookie_headlight.png"
            }
            ["lightbar_r2"    , "SPOTLIGHT"        , "lb3r", "lb3", "lb4r", {"x":90, "y":90, "z":0} , {"x":0, "y":0, "z":0}    , {"x":0, "y":0, "z":0}, 0, 0, 0, 1, {"baseTranslation":{"x":0.45, "y":0.5, "z":-0.12},"deformGroup":"lightbar_RR"}],
            ["lightbar_r1"    , "SPOTLIGHT"        , "lb3l", "lb3", "lb4l", {"x":90, "y":90, "z":0} , {"x":0, "y":0, "z":0}    , {"x":0, "y":0, "z":0}, 0, 0, 0, 1, {"baseTranslation":{"x":0.45, "y":0.5, "z":0.12},"deformGroup":"lightbar_RL"}],
        ],
        "flexbodies": [
             ["mesh", "[group]:", "nonFlexMaterials"],
             ["old_lightbar_a", ["van_lightbar"], [], {"pos":{"x": 0.0, "y":2.60, "z":2.04}, "rot":{"x":0, "y":0, "z":0}, "scale":{"x":1.45, "y":1.35, "z":1.35}}],
            //light
            {"deformGroup":"lightbar_R", "deformMaterialBase":"old_lightbar_r1", "deformMaterialDamaged":"old_lightbar_dmg"}
            ["old_red_r", ["van_lightbar"], [], {"pos":{"x": 0.0, "y":2.60, "z":2.04}, "rot":{"x":0, "y":0, "z":0}, "scale":{"x":1.45, "y":1.35, "z":1.35},"deformSound":"GlassBreakSound3", "deformVolume":0.5}],
            {"deformGroup":"lightbar_L", "deformMaterialBase":"old_lightbar_r2", "deformMaterialDamaged":"old_lightbar_dmg"}
            ["old_red_l", ["van_lightbar"], [], {"pos":{"x": 0.0, "y":2.60, "z":2.04}, "rot":{"x":0, "y":0, "z":0}, "scale":{"x":1.45, "y":1.35, "z":1.35},"deformSound":"GlassBreakSound4", "deformVolume":0.5}],
            {"deformGroup":""}
        ],
        "nodes": [
             ["id", "posX", "posY", "posZ"],
             {"group":"van_lightbar"},
             {"collision":true}
             {"selfCollision":true}
             {"nodeMaterial":"|NM_GLASS"},
             {"frictionCoef":0.7},
             {"nodeWeight":1},
             ["2lb1", 0.0, 2.725, 2.222],
             ["2lb2", 0.0, 2.568, 2.222],
             ["2lb3", 0.0, 2.725, 2.088],
             ["2lb4", 0.0, 2.5, 2.088],

             ["2lb1l", 0.70, 2.725, 2.222],
             ["2lb2l", 0.70, 2.568, 2.222],
             ["2lb3l", 0.70, 2.725, 2.06],
             ["2lb4l", 0.70, 2.5, 2.06],

             ["2lb1r", -0.70, 2.725, 2.222],
             ["2lb2r", -0.70, 2.568, 2.222],
             ["2lb3r", -0.70, 2.725, 2.06],
             ["2lb4r", -0.70, 2.5, 2.06],


             {"group":""},
        ],

        "beams": [
              ["id1:", "id2:"],
              {"beamType":"|NORMAL", "beamLongBound":1.0, "beamShortBound":1.0},
              {"beamSpring":801000,"beamDamp":50},
              {"beamDeform":9750,"beamStrength":"FLT_MAX"},
              //left side
              {"deformationTriggerRatio":0.1},
              {"deformGroup":"lightbar_L"}
              ["2lb1","2lb2"],
              ["2lb1","2lb3"],
              ["2lb1","2lb4"],
              ["2lb1","2lb1l"],
              ["2lb1","2lb2l"],
              ["2lb1","2lb3l"],
              ["2lb1","2lb4l"],

              ["2lb2","2lb3"],
              ["2lb2","2lb4"],
              ["2lb2","2lb1l"],
              ["2lb2","2lb2l"],
              ["2lb2","2lb3l"],
              ["2lb2","2lb4l"],

              ["2lb3","2lb4"],
              ["2lb3","2lb1l"],
              ["2lb3","2lb2l"],
              ["2lb3","2lb3l"],
              ["2lb3","2lb4l"],

              ["2lb4","2lb1l"],
              ["2lb4","2lb2l"],
              ["2lb4","2lb3l"],
              ["2lb4","2lb4l"],

              ["2lb1l","2lb2l"],
              ["2lb1l","2lb3l"],
              ["2lb1l","2lb4l"],

              ["2lb2l","2lb3l"],
              ["2lb2l","2lb4l"],

              ["2lb3l","2lb4l"],

              //right side
              {"deformGroup":"2lightbar_R"}
              ["2lb1","2lb2"],
              ["2lb1","2lb3"],
              ["2lb1","2lb4"],
              ["2lb1","2lb1r"],
              ["2lb1","2lb2r"],
              ["2lb1","2lb3r"],
              ["2lb1","2lb4r"],

              ["2lb2","2lb3"],
              ["2lb2","2lb4"],
              ["2lb2","2lb1r"],
              ["2lb2","2lb2r"],
              ["2lb2","2lb3r"],
              ["2lb2","2lb4r"],

              ["2lb3","2lb4"],
              ["2lb3","2lb1r"],
              ["2lb3","2lb2r"],
              ["2lb3","2lb3r"],
              ["2lb3","2lb4r"],

              ["2lb4","2lb1r"],
              ["2lb4","2lb2r"],
              ["2lb4","2lb3r"],
              ["2lb4","2lb4r"],

              ["2lb1r","2lb2r"],
              ["2lb1r","2lb3r"],
              ["2lb1r","2lb4r"],

              ["2lb2r","2lb3r"],
              ["2lb2r","2lb4r"],

              ["2lb3r","2lb4r"],

              //attachment
              {"beamSpring":601000,"beamDamp":50},
              {"beamDeform":24000,"beamStrength":42720},
              //left
              {"deformGroup":"2lightbar_L"}
              {"breakGroup":"2lightbar_left"},
              ["2lb3l","r2ll"],
              ["2lb3l","r3ll"],
              ["2lb4l","r2ll"],
              ["2lb4l","r3ll"],

              ["2lb1l","r2ll"],
              ["2lb1l","r3ll"],
              ["2lb2l","r2ll"],
              ["2lb2l","r3ll"],

              ["2lb3l","r2"],
              ["2lb3l","r3"],
              ["2lb4l","r2"],
              ["2lb4l","r3"],

              ["2lb1l","r2"],
              ["2lb1l","r3"],
              ["2lb2l","r2"],
              ["2lb2l","r3"],

              {"breakGroup":""},
              //right
              {"deformGroup":"2lightbar_R"}
              {"breakGroup":"2lightbar_right"},
              ["2lb3r","r2rr"],
              ["2lb3r","r3rr"],
              ["2lb4r","r2rr"],
              ["2lb4r","r3rr"],

              ["2lb1r","r2rr"],
              ["2lb1r","r3rr"],
              ["2lb2r","r2rr"],
              ["2lb2r","r3rr"],

              ["2lb3r","r2"],
              ["2lb3r","r3"],
              ["2lb4r","r2"],
              ["2lb4r","r3"],

              ["2lb1r","r2"],
              ["2lb1r","r3"],
              ["2lb2r","r2"],
              ["2lb2r","r3"],
              {"breakGroup":""},
              {"deformGroup":""}
        ],
        "triangles": [
                ["id1:","id2:","id3:"],
                {"dragCoef":14},
                //rear end
                {"groundModel":"plastic"},
                {"group":"van_rlightbar"},
                ["2lb1r", "2lb3r", "2lb3"],
                ["2lb1r", "2lb3", "2lb1"],
                ["2lb3", "2lb3l", "2lb1l"],
                ["2lb3", "2lb1l", "2lb1"],
                ["2lb2l", "2lb4l", "2lb4"],
                ["2lb2l", "2lb4", "2lb2"],
                ["2lb4", "2lb4r", "2lb2r"],
                ["2lb2", "2lb4", "2lb2r"],
                ["2lb1l", "2lb2l", "2lb1"],
                ["2lb2l", "2lb2", "2lb1"],
                ["2lb2", "2lb2r", "2lb1r"],
                ["2lb1", "2lb2", "2lb1r"],
                ["2lb1l", "2lb3l", "2lb4l"],
                ["2lb1l", "2lb4l", "2lb2l"],
                ["2lb2r", "2lb4r", "2lb3r"],
                ["2lb2r", "2lb3r", "2lb1r"],
        ],
    }
    }

    • Like Like x 3
  3. howard9068

    howard9068
    Expand Collapse

    Joined:
    Mar 6, 2016
    Messages:
    135
    it's Fine now! Thank you very much!!
    learn some new thing again :)

    #3 howard9068, May 12, 2017
    Last edited: May 12, 2017
  4. howard9068

    howard9068
    Expand Collapse

    Joined:
    Mar 6, 2016
    Messages:
    135
    But weird things appear again
    I know it's jbeam's problem, but how can i solve it?
    ( I dont really understand the wiki cause i am not english :) )

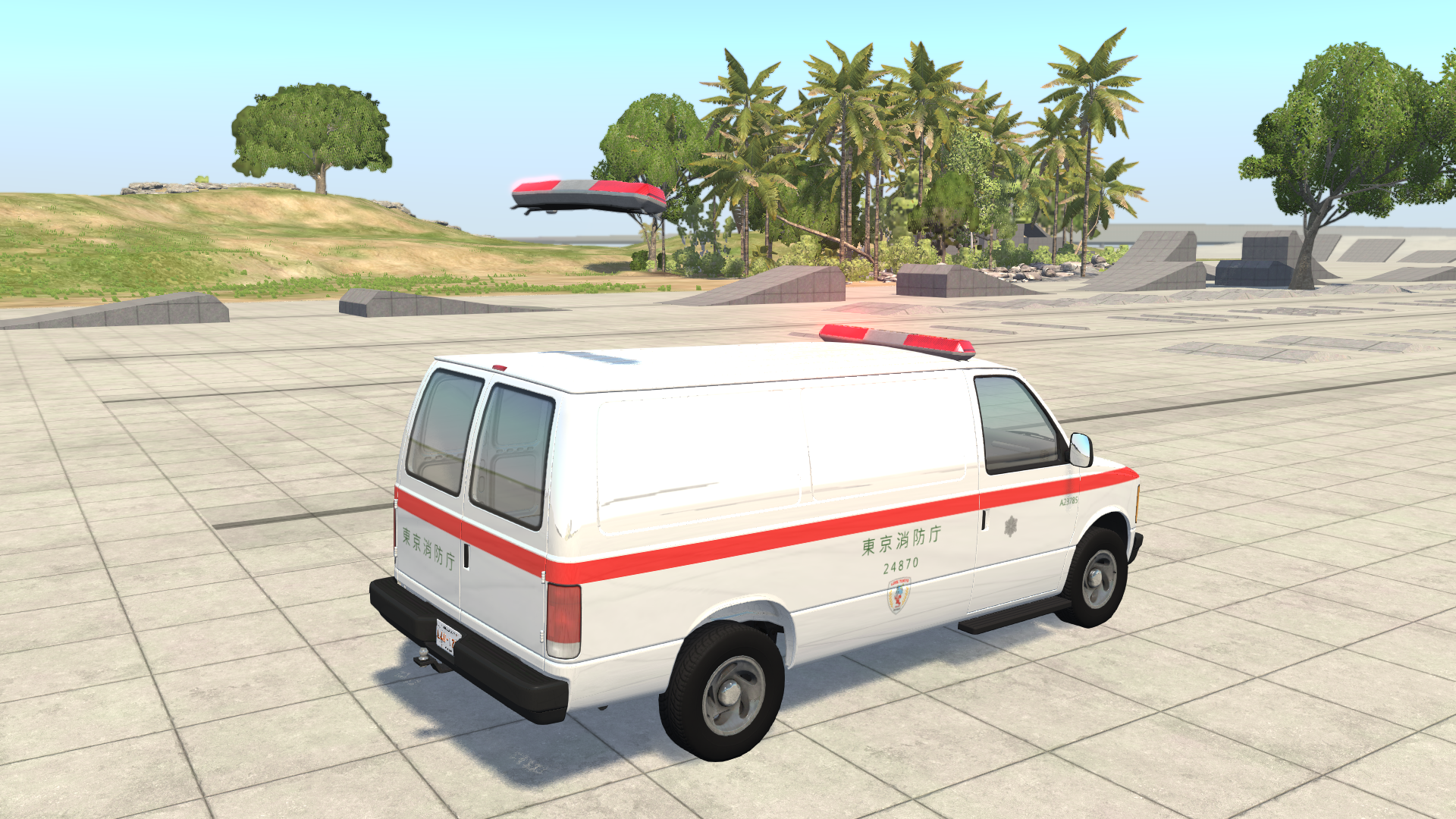

    Flying Light bar : /
    Sorry for so many problem .


    Attached Files:

  5. meywue

    meywue
    Expand Collapse
    Administrator
    BeamNG Team

    Joined:
    Nov 19, 2015
    Messages:
    325
    Hey, some of the beams are not set properly.



    These beams are there to connect your lightbar to the body.

    You have to take a look at this section of your jbeam.


  6. howard9068

    howard9068
    Expand Collapse

    Joined:
    Mar 6, 2016
    Messages:
    135
    ummmm, I'll check it :)
    Thankyou!
