CAD models

hubert2005 kam · Dec 5, 2019

is it possible for CAD models to be imported into beamng

GotNoSable! · Dec 5, 2019

hubert2005 kam said: ↑

is it possible for CAD models to be imported into beamng
Click to expand...

I've been thinking the same thing recently, considering my only modeling experience is in AutoCad and shit like that.
Most likely not.

atv_123 · Dec 5, 2019

I can answer that question...

atv_123 said: ↑

Ah... This is possible, but your mileage may very...

Take this for example...

View attachment 521333
This is a Lamborghini Egoista that I made in Inventor... basically just for practice... No interior or anything... but that isn't the point right now.

First thing your going to want to do is figure out a way to export it. Inventor can export in 2 file types that I can see working for us to get this model in blender, and I am going to try both of them out right now because I want to be able to give a proper answer. The first is as an STL file, and the second is as an OBJ file.

Alright, I exported both of them, now I am going to fire up blender.

View attachment 521335

Importing into blender we can see that both exports worked just fine, but it is important to remember, if you texture your models in Inventor, the textures will not be brought across if you export your files as .STL files. That, plus the OBJ file kept all the parts seperate while the STL file made them all into one big blob.

So yes, you can export Inventor files into blender, and then in turn export them to .dae files for use in Beam.

That being said... while these make good stationary models....

View attachment 521337

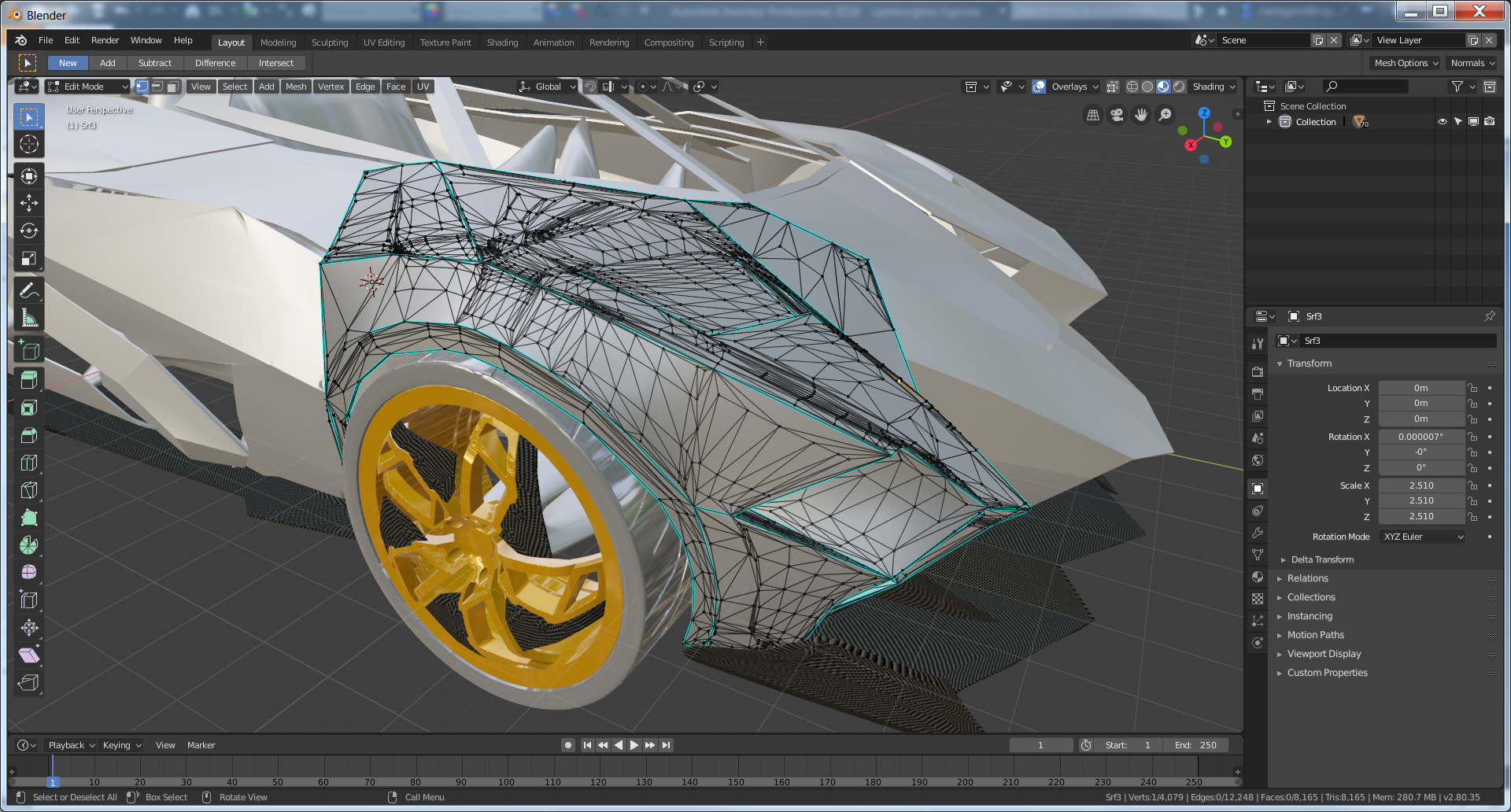

Their polly flow is terrible...

View attachment 521338

So deformation, even on a 100% custom JBeam, will be questionable at best...
Click to expand...

bendervdb06 · Dec 10, 2019

Blender 2.8 es très intéressent
Je pense que tu peut ouvrir tes projet Autocad avec pour ensuite les convertir en format collada... #dae
Il a ce jours le logiciel de 3 d gratuit le plus puissant
De plus les studio de jeu vidéo comme unreal ungine et ubisoft investi beaucoup dans son développement en plus des studio
D animation comme pixar bref je vous conseille vivement son apprentissage car très bien penser pour le jeu vidéo
