Biggest Jbeam Error?[stumped]

Okay.. I am having this issue where I am trying to do my exhaust for my D-15 Derby.. but it just wants to shit all over me..

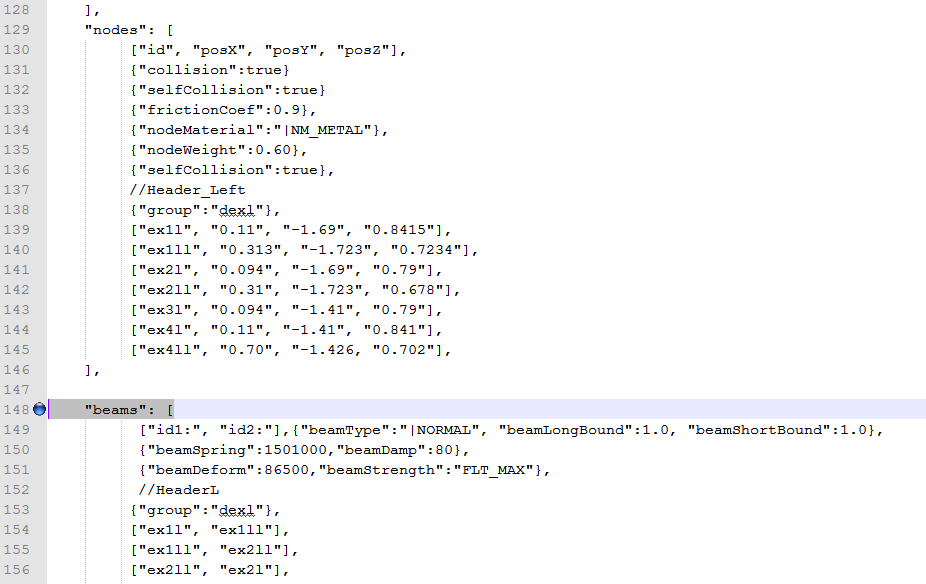

for some reason it is giving me an error on a perfect line.. the console log says the error was found on line 148

Here is the jbeam


Been trying various things to attempt to fix this issue for hours.


Thanks for your help in advance.

BeamNG Log

Code:

1370.71508|W|libbeamng.lua.V.Vehicle:loadDirectory|[COLOR=#b22222]unable to decode JSON[/COLOR]: [COLOR=#b22222]vehicles/pickup/pickup_d_engine_v8.jbeam[/COLOR]
1370.71513|W|libbeamng.lua.V.Vehicle:loadDirectory|JSON decoding error: lua/json.lua:117: [COLOR=#b22222]Invalid input at line: 148[/COLOR]
1370.71518|W|libbeamng.lua.V.Vehicle:loadDirectory|Last line was:
1370.71521|W|libbeamng.lua.V.Vehicle:loadDirectory|[COLOR=#ff0000]"beams": [[/COLOR]



You have a malformed json statement. Look at the last node.

Also you shouldn't quote numbers, quotes define strings of text.

["name",number,number,number], is the proper forming of a node.



Tried that.. didn't work.



Could you post the JBeam again, now with your changes?



Same error line 35

Invalid input at line: 35
31.41754|W|libbeamng.lua.V.Vehicle:loadDirectory|Last line was:
31.41759|W|libbeamng.lua.V.Vehicle:loadDirectory|"beams": [

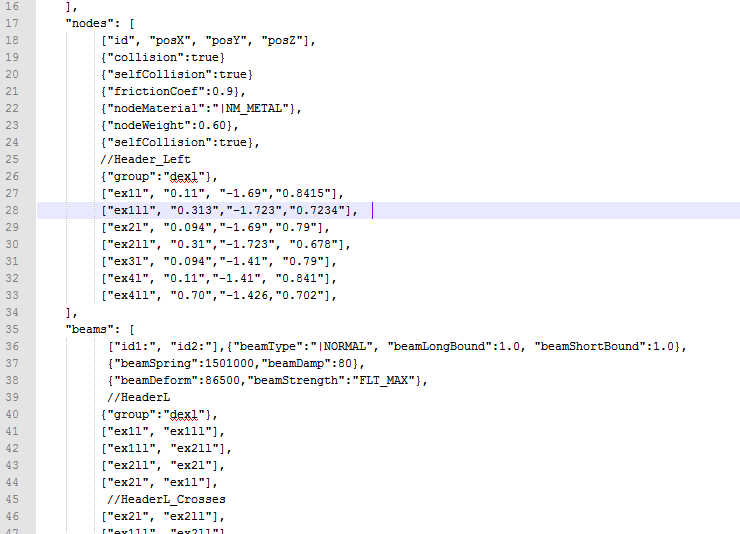

New Jbeam



Line 33 is malformed, again you have missed a quote (which still shouldn't be there )



See it now..
Thank you.

Edit:

Now the problem is something I have just not seen before.... wtf...

Code:

{
"pickup_header_v8d": {
    "information":{
        "authors":"gabester",


        "name":"Gavril D-Series Derby Exhaust",
    }
    "slotType" : "pickup_dex",
    "scalebeamSpring":0.84,
    "scalebeamDamp":1.3,
    "scalebeamDeform":1.5,
    "scalebeamStrength":1.78,
    "flexbodies": [
         ["mesh", "[group]:", "nonFlexMaterials"],
         ["pickup_header_v8dl", ["dexl"]],
         ["pickup_header_v8dr_NA", ["dexr"]],
    ],
    "nodes": [
         ["id", "posX", "posY", "posZ"],
         {"collision":true}
         {"selfCollision":true}
         {"frictionCoef":0.9},
         {"nodeMaterial":"|NM_METAL"},
         {"nodeWeight":0.60},
         {"selfCollision":true},
         //Header_Left
         {"group":"dexl"},
         ["ex1l", "0.11", "-1.69", "0.8415"],
         ["ex1ll", "0.313", "-1.723", "0.7234"],
         ["ex2l", "0.094", "-1.69", "0.79"],
         ["ex2ll", "0.31", "-1.723", "0.678"],
         ["ex3l", "0.094", "-1.41", "0.79"],
         ["ex4l", "0.11", "-1.41", "0.841"],
         ["ex4ll", "0.70", "-1.426", "0.702"],
    ],
    "beams": [
          ["id1:", "id2:"],{"beamType":"|NORMAL", "beamLongBound":1.0, "beamShortBound":1.0},
          {"beamSpring":1501000,"beamDamp":80},
          {"beamDeform":86500,"beamStrength":"FLT_MAX"},
          //HeaderL
         {"group":"dexl"},
         ["ex1l", "ex1ll"],
         ["ex1ll", "ex2ll"],
         ["ex2ll", "ex2l"],
         ["ex2l", "ex1l"],
          //HeaderL_Crosses
         ["ex2l", "ex2ll"],
         ["ex1ll", "ex2ll"],




    ],
    "triangles": [
            ["id1:","id2:","id3:"],


    ],

Log:

Code:

219.00368|W|libbeamng.lua.V.Vehicle:loadDirectory|unable to decode JSON: vehicles/pickup/pickup_d_headerv8.jbeam
219.00372|W|libbeamng.lua.V.Vehicle:loadDirectory|JSON decoding error: lua/json.lua:135: bad argument #1 to 'find' (string expected, got nil)
219.01228|E|libbeamng.object|lua/vehicle/beamng.lua:2674: attempt to index local 'part' (a nil value)
219.01235|E|libbeamng.object|lua/vehicle/props.lua:51: attempt to index field 'data' (a nil value)
219.78048|E|libbeamng.object|lua/vehicle/sounds.lua:38: attempt to index field 'data' (a nil value)
219.78059|E|libbeamng.object|lua/vehicle/sensors.lua:68: attempt to index field 'data' (a nil value)

The issue still makes the vehicle unable to spawn.



In that code snippet you're missing closing brackets

}
}
